Omtech USB475a User Manual page 13

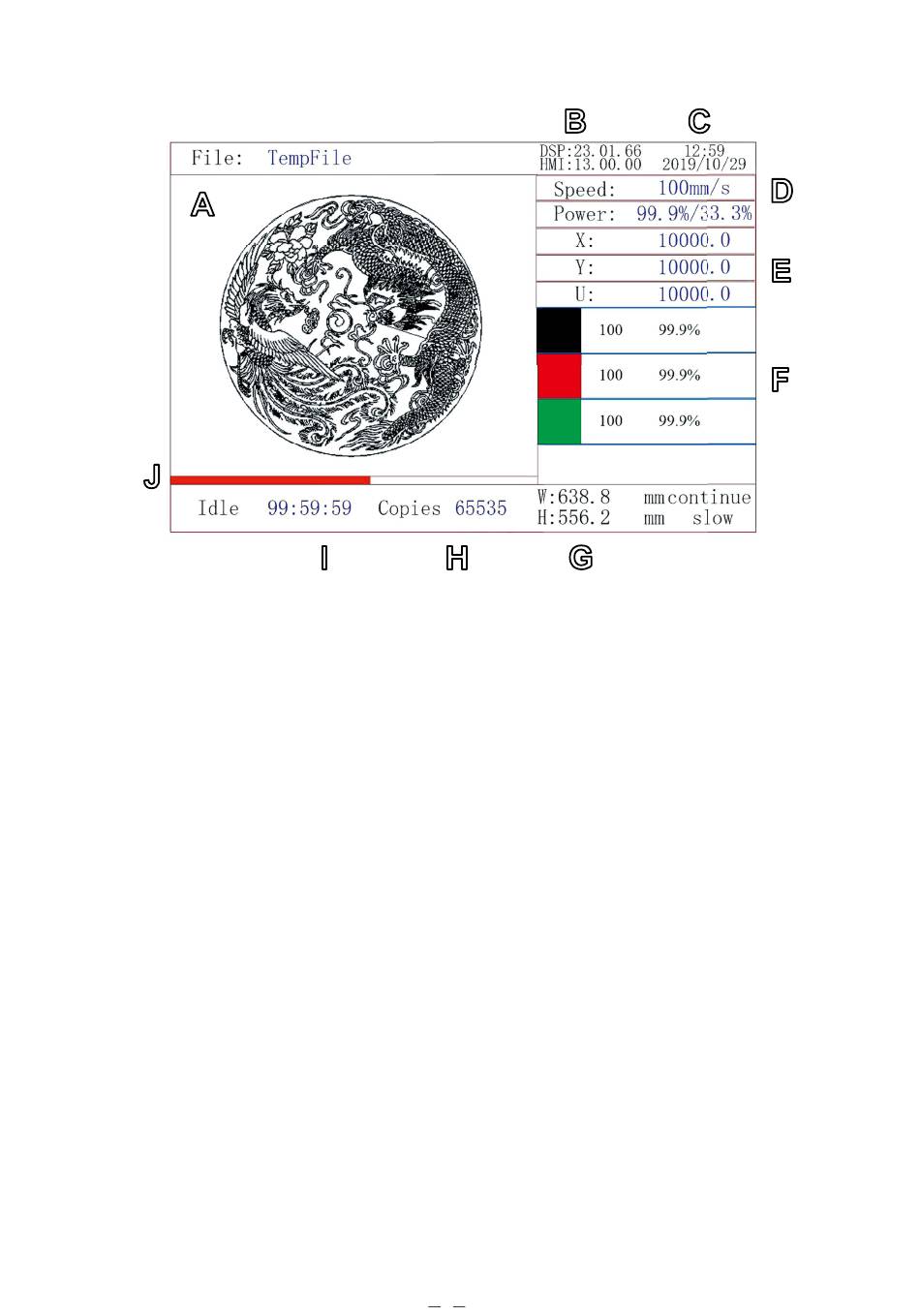

Console Screen
A A
J J
A. Graphic Display Area: Shows the whole file's track and the running track.
B. Version Number: Displays the version numbers of the panel and motherboard.
C. System Time: Displays the current system time.
D. Parameter Display Area: Displays the running file's file number, speed, max power, etc.
E. Coordinate Display Area: Displays the current coordinates of the laser head.
F. Layer Display Area: Displays the layer parameters of current or previewed files. Parameters from left to right are
layer number, colour, speed, and maximum power.
G. Frame Size of Processing: Displays the dimensions of the current file.
H. Number of Pieces: Shows the count of completed runs of the current file.
I. System Status: Displays the current status of the machine: Idle, Running, Paused, or Finished. The processing time
is shown on the right side.
J. Processing Progress Bar: Displays the progress of the current file.
When the system is idle or the work is finished, all the buttons are used. Users can process the file, set the parameters,
preview their file, etc. When the work is running or paused, some buttons will not work (e.g., Origin and Frame).
I I H H
9
B B C C
G G
D D
E E
F F
