4.4.14 Setting the Machine's IP Address

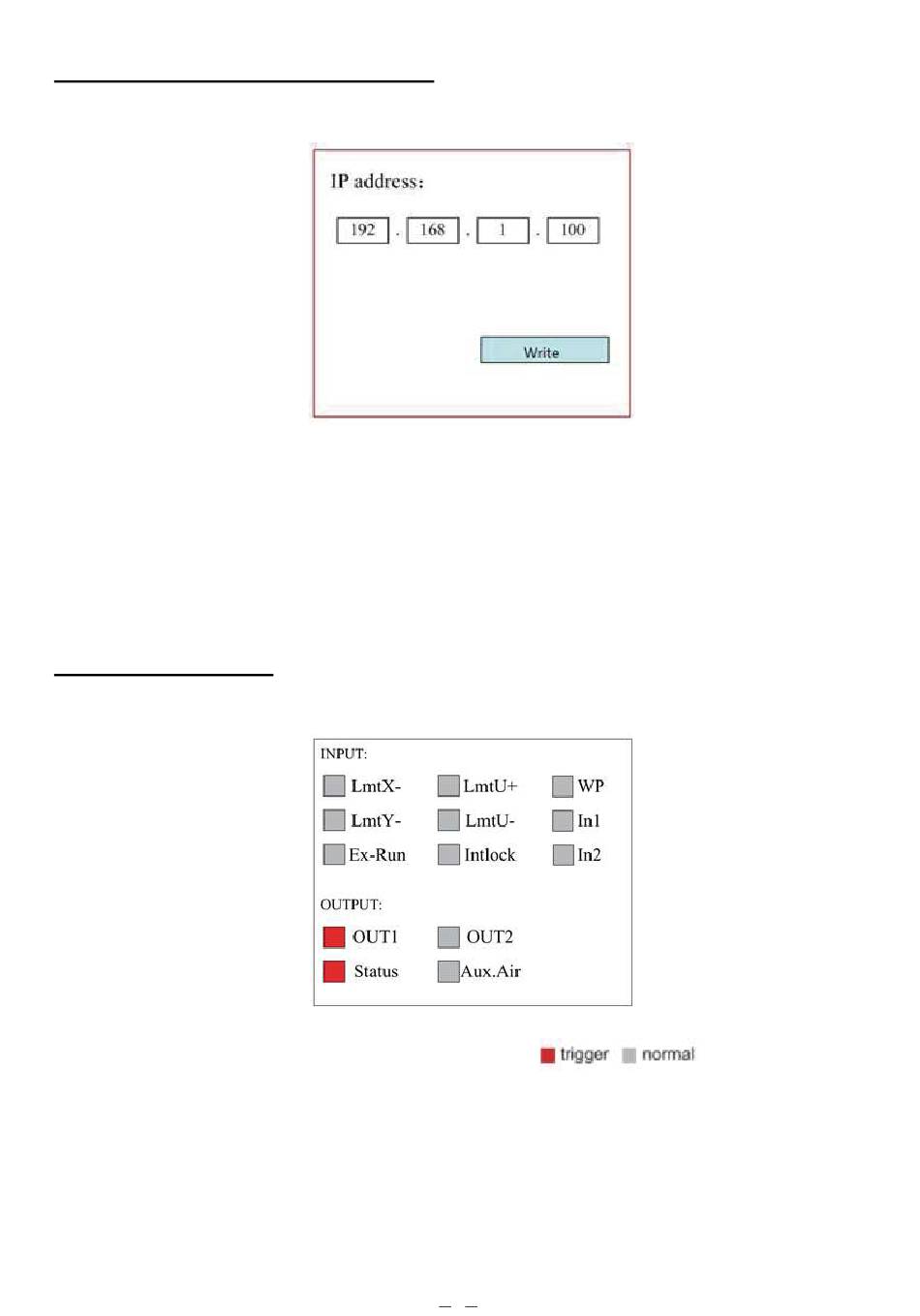

When IP Setup is selected, press ENT and the display will show:
Push ◄ or ► and ▲ or ▼ and ENT keys to change the parameters. The default address of the engraver is
192.168.1.100. If this is already in use on your local network, use 192.168.1 for the first three sections and choose a
unique value for the last section. Typically, any value from 2–252 except 47 should be OK but avoid values already
being used by your other networked devices. Direct connection of the machine to the public internet risks unauthorised
use and is not recommended. If you wish to provide it anyway, you will need to register and use a unique public TCP/IP
address. When you finish your adjustments, save them by selecting Write with the ENT key or hit ESC to leave without
saving your changes. Read can load saved parameters.
4.4.15 Diagnostic Tools
When Diagnoses is selected, the following dialogue box will pop up:
This interface displays the system's hardware I/O port information:
INPUT: Reads the system's hardware information. When the hardware signal is triggered, the small box to the left of
the corresponding entry will be displayed in red. Otherwise, it will be displayed in grey.
OUTPUT: Select an output with the cursor. Press ENT to switch the output state or ESC to return to the main menu
without any changes.
