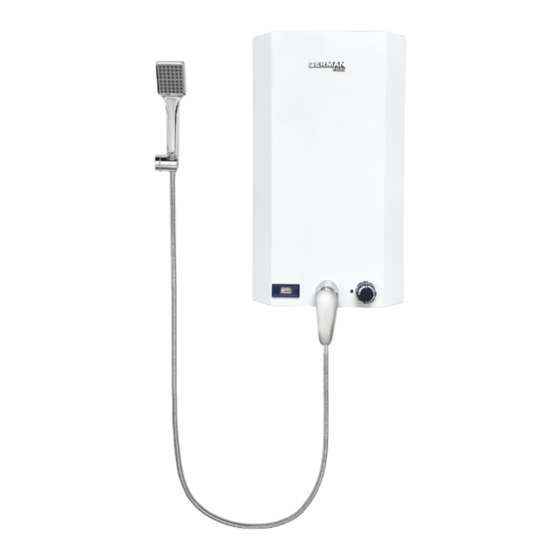

German pool GPN-4E-V User Manual

German pool GPN-4E-V User Manual

Shower unit electric water heater

Advertisement

Quick Links

Shower Unit Electric Water Heater
Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
U S E R M A N U A L
GPN-4E/6E-V
GPNB-5E-V
Online Warranty Registration

Advertisement

loading
Need help?

Need help?

Do you have a question about the GPN-4E-V and is the answer not in the manual?

Questions and answers

Summary of Contents for German pool GPN-4E-V

  • Page 1 GPN-4E/6E-V Shower Unit Electric Water Heater GPNB-5E-V Online Warranty Registration Please read these instructions and warranty information carefully before use and keep them handy for future reference. U S E R M A N U A L...
  • Page 2 請即進行保用登記! 有關保用條款細則,請看說明書最後一頁。 Please register your warranty information now ! For Warranty Terms & Conditions, please refer to the last page of this user manual.
  • Page 3 Table of Contents Warnings Features Installation Instructions 配件裝置選擇 Installation Diagram Wiring Diagram Water Saving Shower Head Warranty Terms & Conditions...
  • Page 4 Each unit is equipped with a standard open-outlet 若用戶需要安裝任何非隨機配件,必須先與 mixer and a shower set. Please install water 本公司認可之技術人員聯絡,否則本公司將 heater in accordance to the instructions stated 有權拒絕提供任何保養服務。 on this booklet. German Pool will NOT provide warranty service on any product installed with unauthorized components or devices.
  • Page 5 * Under normal working conditions, incoming pressure should not exceed 0.6 MPa. Otherwise, a separate pressure control device is necessary. When incoming water pressure exceeds 0.6 MPa, German Pool will not provide any repair service until a pressure control device is installed.
  • Page 6 安裝說明 Installation Instructions Pre-Installation Notice 安裝前注意 Installation should be done by a licensed 安裝必須使用原廠配件。若不按指示方法安 technician using the supplied parts. German Pool 裝及使用而引致任何損壞,本公司概不負責。 is not responsible for any defect or damage 安裝工作應由專業持牌水電技術人員負責。 caused by incorrect or unauthorized installation. 掛牆定位 Positioning Position water heater near water tap / point of use 先將熱水器背板以膨脹螺絲安裝於承重的牆壁...
  • Page 7 安裝說明 Installation Instructions 接電方法 Electric Wiring Use an independent wire (refer to table below) 由電箱獨立伸延一條適合之電線(見下表)至浴室 leading from the meter box and connect it to an 門外接駁獨立開關掣,再將電線伸延至熱水器 independent on/off switch outside bathroom. 穿進灰色線夾接到電線排上分別接上零線(N), Extend the wire through the grey wire grip on the 火線(L),及地線( )等。...
  • Page 8 及更換。對於因未考慮維修及更換因素, repair and replacement. If water heater 而造成後期維修及更換熱水器時產生其他 is installed in a location not easily accessible, German Pool will not be 附屬非熱水器損失,本公司概不負責。 held responsible for any damage or loss, peripheral or otherwise, incurred during reparation and replacement.
  • Page 9 使用說明 Operating Instructions Water Shortage 停水期間 During water shortage, do not drain water from in- 停水時不應將熱水器內之存水用盡,否則會導 ner tank. The heating element would be damaged if 致發熱線損壞。恢復供水後,應先扭開熱水掣 it is not submerged under water. When water supply resumes, turn on hot water tap and let water flows 直至有水從花灑流出。待內膽注滿水後,用戶 through the shower head before switching on the 便可重新開啟電源。...
  • Page 10 產品結構 Product Structure GPN-4E/6E-V 防倒流裝置 發熱線 出水位 (熱) 入水位 (冷) 溫度調節/超溫斷路器 Anti Back Siphonage Device Heating Element Outlet (Hot) Inlet (Cold) Combined Thermostat / Cut-Out GPNB-5E-V 發熱線 排水位 出水位 (熱) 入水位 (冷) 溫度調節/超溫斷路器 混合水制 溫度表 Heating Element Drain Outlet (Hot) Inlet (Cold) Combined Thermostat / Cut-Out...
  • Page 11 Plug-In Type Shower Head Thermometer Slide Bar Type Shower Head Single Lever Mixer Swivel Outlet – for 2 gallon or above models only (not shown above) 注意: 配件裝置選擇只適用於GPN-4E-V及 GPN-6E-V。 NOTE: Component option is only available for GPN-4E-V and 6E-V. P.11 P 5 .
  • Page 12 Mixing Valve Mixing Valve 安裝圖 Installation Diagram 排水 排水 排水 排水 Drain Drain Drain Drain 出水 排水 出水 排水 進水 進水 Outlet Drain 進水 進水 Outlet Drain Inlet Inlet Inlet Inlet 出水 出水 Outlet Outlet GPN-4E/6E-V 外碼 熱水器 Mounting 外碼 外碼...
  • Page 13 電路圖 Wiring Diagram 電路圖 Wiring Diagram 電路圖 Wiring Diagram 電控原理圖 (單相 1-Phase 220 V~) 溫度調節/超溫斷路裝置 恒溫器及斷路裝置 恒溫器及斷路裝置 Thermostat & Cutout Combined Thermostat & Cutout Thermostat & Cutout 指示燈 指示燈 Indicator Indicator 發熱元件 發熱元件 Heating Element Heating Element 電控接線圖 (單相 1-Phase 220 V~) GPNB 指示燈...
  • Page 14 花灑頭流出,請注意! Hot water may flow out from this valve and showerhead when turning off the tap. Please be careful. 產品規格 14.2mm 14.2mm 型號 Model GPN-4E-V GPN-4E-V X GPN-6E-V GPN-6E-V X GPNB-5E-V GPNB-5E-V X 電壓 Voltage 220V (單相 / 1Phase) 50 Hz 頻率...
  • Page 15 保用條款 Warranty Terms & Conditions Under normal operations, the product will gurantee a 1-year full 此保用提供德國寶產品之機件在正常使用下壹年保 warranty provided by German Pool (effective from the date of purchase). 用(自購買日起計算)。 This warranty is not valid until customer registration information is *貴戶須在購機十天內,以下列其中一種方式向本公司 received by our Service Centre within 10 days of purchase via 登記資料,保用手續方正式生效﹕...
  • Page 16 Fax:+86 757 2219 6809 HONG K ONG TOP BRAND TEN YEAR ACHIEVEMENT AWARD © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. www.germanpool.com GPNB-5E-4E-6E-V-M-24(1)
