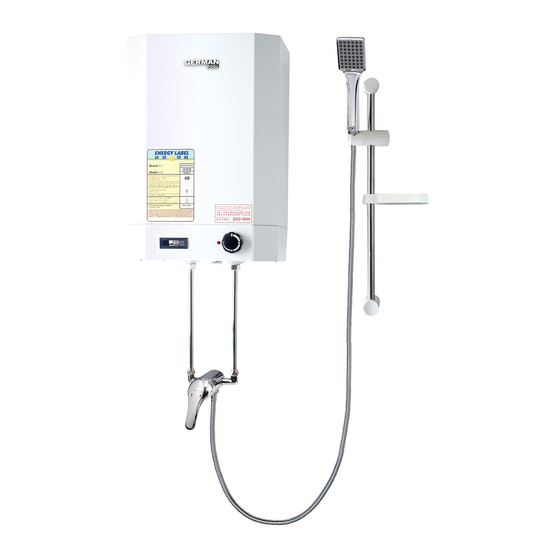

- Page 1 GPN-4E/6E GPN Series Shower Unit Electric Water Heater Online Warranty Registration GPN-4E GPN-6E Please read these instructions and warranty information carefully before use and keep them handy for future reference. U S E R M A N U A L...
- Page 2 請即進行保用登記﹗ 有關保用條款細則，請看本說明書最後一頁。 Please register your warranty information now! For Warranty Terms & Conditions, please refer to the last page of this user manual.
-
Page 3: Table Of Contents
目錄 Table of Contents 產品特點 Features 配件裝置選擇 Component Options 產品結構 Product Structure 安裝圖 Installation Diagram 安裝說明 Installation Instructions 電路圖 Wiring Diagram 使用說明 Operating Instructions 產品規格 Specifications 專用節水花灑 Water Saving Shower Head 保用條款 Warranty Terms & Conditions... -
Page 4: 產品特點 Features
Each unit is equipped with a standard open-outlet 若用戶需要安裝任何非隨機配件，必須先與 mixer and a shower set. Please install water heat- er in accordance to the instructions stated on this 本公司認可之技術人員聯絡，否則本公司將 booklet. German Pool will NOT provide warranty 有權拒絕提供任何保養服務。 service on any product installed with unauthorized components or devices. 不銹鋼內膽... -
Page 5: 配件裝置選擇 Component Options
配件裝置選擇 Component Options 配件裝置選擇 Component Options 插座式花灑頭 Plug-In Type Shower Head 溫度顯示器 Thermometer 直柱式花灑頭 Slide Bar Type Shower Head 單控式混合龍頭 Single Lever Mixer 搖擺式出水口 - 只適用於 2加侖型號或以上(上圖沒 有展示) Swivel Outlet – for 2 gallon or above models only (not shown above) -
Page 6: 產品結構 Product Structure
產品結構 Product Structure 1 發熱線 2 出水位（熱） 3 入水位（冷） 4 恆溫器 1 Heating Element 2 Outlet (Hot) 3 Inlet (Cold) 4 Thermostat 安裝圖 Installation Diagram 外碼 Mounting 熱水器 Bracket Water Heater 出水 Outlet 進水 出水 進水 Inlet Outlet Inlet 使用外碼時注意：確定爐的安裝位置後，請先用螺絲將外碼固定在牆上，再將爐後蓋上的方孔對準 固定在牆上的外碼，向下將爐穩靠地固定掛在牆上。... -
Page 7: 安裝說明 Installation Instructions
安裝說明 Installation Instructions Pre-Installation Notice 安裝前注意 Installation should be done by a licensed technician 安裝必須使用原廠配件。若不按指示方法安 using the supplied parts. German Pool is not 裝及使用而引致任何損壞，本公司概不負責。 responsible for any defect or damage caused by 安裝工作應由專業持牌水電技術人員負責。 incorrect or unauthorized installation. Positioning 掛牆定位 Position water heater near water tap / point of use in 先將熱水器背板以膨脹螺絲安裝於承重的牆壁上，... -
Page 8: 電路圖 Wiring Diagram
安裝說明 Installation Instructions 發熱線功率 (千瓦) 所需電源(安培) 電源線最低要求(平方毫米) Heating Element Rating (kW) Electric Current (A) Wiring (mm²) 1.5 kW 8 A ( 1PE) 1.5 mm² 單相 2 kW 10 A ( 1PE) 2.5 mm² 單相 3 kW 15 A ( 1PE) 2.5 mm²... -
Page 9: 使用說明 Operating Instructions
使用說明 Operating Instructions Warning 警告 1. Do not allow children to touch or play with the 1. 必須嚴密看管兒童，防止他們接觸及把玩 water heater. Supervision is required during use, 熱水器，以免燙傷、觸電或受傷。 in order to prevent the danger of a scald, electrical shock or any other injuries. 2. -
Page 10: 產品規格 Specifications
* Under normal working conditions, incoming pressure should not exceed 0.6 MPa. Otherwise, a separate pressurecontrol device is necessary. When incoming water pressure exceeds 0.6 MPa, German Pool will not provide anyrepair service until a pressure control device is installed. -
Page 11: 保用條款 Warranty Terms & Conditions
- the serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, at its discretion, repair or replace any 4. 總代理有權選擇維修或更換配件或其損壞部份。 defective part. 5. This warranty will be void if there is any transfer of 5. - Page 12 Fax:+86 757 2980 8318 HONG KONG TOP BRAND TEN YEAR ACHIEVEMENT AWARD © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. www.germanpool.com GPN-4E-6E-M-19(1)
