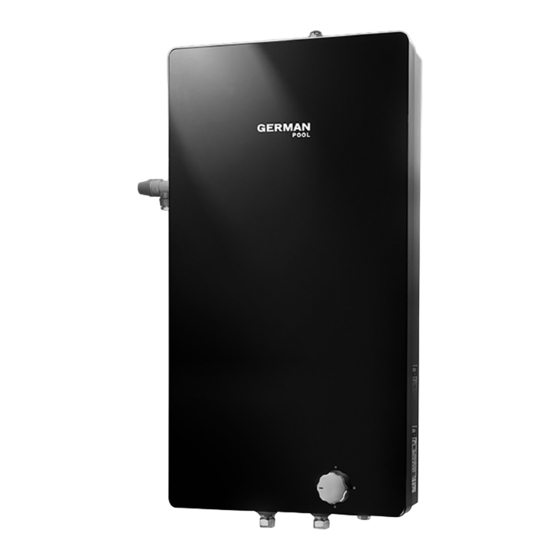

- Page 1 Rapid Fast Flow Electric Water Heater GPU-6SSM Online Warranty Registration Please read these instructions and warranty information carefully before use and keep them handy for future reference. U S E R M A N U A L...
- Page 2 請即進行保用登記！ 有關保用條款細則，請看說明書最後一頁。 Please register your warranty information now ! For Warranty Terms & Conditions, please refer to the last page of this user manual.
-
Page 3: Table Of Contents
目錄 Table of Contents 警告及注意事項 Satefy Instructions 產品特點 Features 安裝說明 Installation Instructions 使用說明 Operating Instructions 產品結構 Product Structure 安裝圖 Installation Diagram 電路圖 Wiring Diagram 產品規格 Specifications 保用條款 Warranty Terms & Conditions... -
Page 4: 警告及注意事項 Satefy Instructions
30mA. Warning 警告 Please install water heater in accordance to the 若用戶需要安裝任何非隨機配件，必須先與 instructions stated on this booklet. German Pool 本公司認可之技術人員聯絡，否則本公司將 will NOT provide warranty service on any product 有權拒絕提供任何保養服務。 installed with unauthorized components or devices. -
Page 5: 產品特點 Features
* Under normal working conditions, incoming pressure should not exceed 0.6 MPa. Otherwise, a separate pressure control device is necessary. When incoming water pressure exceeds 0.6 MPa, German Pool will not provide any repair service until a pressure control device is installed. -
Page 6: 安裝說明 Installation Instructions
安裝說明 Installation Instructions Pre-Installation Notice 安裝前注意 Installation should be done by a licensed 安裝必須使用原廠配件。若不按指示方法安 technician using the supplied parts. German Pool 裝及使用而引致任何損壞，本公司概不負責。 is not responsible for any defect or damage 安裝工作應由專業持牌水電技術人員負責。 caused by incorrect or unauthorized installation. 安裝定位 Positioning Position water heater near water tap / point of 熱水器應盡量安裝於接近出水龍頭之位置，以... - Page 7 安裝說明 Installation Instructions Positioning 掛牆定位 Position water heater near water tap / point of use 先將熱水器背板以膨脹螺絲安裝於承重的牆壁 in order to minimize heat loss. For wall-mount style, 上，然後將熱水器背部凹孔扣在背板上，並調 appropriate anchor screws must be used and wall 整至緊貼牆壁及保持垂直為佳。花灑頭插座以 should be strong enough to withstand the weight 膨脹螺絲安裝於適當位置上。 of water heater. Keep a minimal distance between wall and water heater.
- Page 8 安裝說明 Installation Instructions 特別注意 ATTENTION WARNING! 重要注意事項 After initial installation and water 儲水式電熱水器安裝並進行通水通 and electricity testings, if the storage 電測試後，如果不是繼續使用，而 water heater will not be put to use 是先擱置一段時間後再使用，測試 immediately, after testing is completed, 完畢必需進行以下程序： make sure to follow these instructions: 1.
- Page 9 安裝說明 Installation Instructions 預留維修位置 ≥100 Min. space for maintenance ≥200 ≥200 ≥300 注：發熱管 3kW NOTE: Heating element 3kW...
-
Page 10: 使用說明 Operating Instructions
使用說明 Operating Instructions Note 注意 When incoming water pressure exceeds 0.6 MPa, 如來水壓力超過0.6 MPa而用戶未有安裝減壓 German Pool will not provide any repair service 器，本公司有權拒絕為熱水器進行任何維修。 until a pressure control device is installed. Draining 內膽排水 To drain out water from the inner tank, first switch 如要將內膽內的水排走，必須先關掉電源及水 off both power and water supply. Let hot water 源，待剩餘之熱水冷卻後，旋開排水喉之喉蓋... -
Page 11: 產品結構 Product Structure
產品結構 Product Structure Anti Back Siphonage Device 防倒流裝置 Pressure & Temperature Relief Valve (PTV) 超溫及超壓排放閥 Heating Element (Inside) 發熱線 (內部) Outlet (Hot) 出水位 (熱) Inlet (Cold) 入水位 (冷) Combined Thermostat/Cutout 溫度調節/超溫斷路器 P.11... -
Page 12: 安裝圖 Installation Diagram
排水 Drain 進水 出水 進水 Inlet Outlet Inlet 出水 Outlet 安裝圖 Installation Diagram 外碼 Mounting Bracket 熱水器 Water Heater 溫度調節/超溫斷路器 Combined Thermostat/Cutout 排水口 排水口 排水 進水 Drainage Outlet Drainage Outlet Drain 出水 進水 Inlet Outlet Inlet 出水 Outlet 使用外碼時注意：確定爐的安裝位置後，請先用螺絲將外碼固定在牆上，再將爐後蓋上 的方孔對準固定在牆上的外碼，向下將爐穩靠地固定掛在牆上。 Caution: After confirmation of installation location, properly secure the mounting bracket with screws on the wall, align the holes of the back plate of the water heater with the mounting bracket, and downwardly hang the water heater. -
Page 13: 電路圖 Wiring Diagram
電路圖 Wiring Diagram 電路圖 (單相 1-Phase 220 V~) 電路圖 單項 繼電器 溫度調節/超溫斷路器 單項 溫度調節/超溫斷路器 繼電器 溫度調節/超溫斷路器 溫度調節/超溫斷路器 指示燈 指示燈 指示燈 指示燈 發熱線 發熱線 發熱線 發熱線 (單相 1-Phase 220 V~) 繼電器 繼電器 指示燈 、 、 指示燈 、 、 發熱線 發熱線 接外殼 接底板 接內膽 發熱線... -
Page 14: 產品規格 Specifications
產品規格 Specifications 型號 Model GPU-6SSM GPU-6SSM Y 電壓 Voltage (單相 / 1Phase) 220V 50Hz 頻率 Frequency 功率 Power (單相 / 1Phase) (H)740 mm (W)355 mm (D)175 mm 機身尺寸 Dimensions 淨重 Net Weight 16.2kg 滿水 Filled Weight 35.7kg 產品規格及設計如有變更，恕不另行通知。 Specifications are subject to change without prior notice. 中英文版本如有出入，一概以中文版為準。 If there is any inconsistency or ambiguity between the English version and the Chinese version, the Chinese version shall prevail. 本產品使用說明書以 www.germanpool.com 網上版為最新版本。 Refer to www.germanpool.com for the most up-to-date version of the Operating Instructions. -
Page 15: 保用條款 Warranty Terms & Conditions
- the serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, at its discretion, repair or replace any 4. 總代理有權選擇維修或更換配件或其損壞部份。 defective part. 5. This warranty will be void if there is any transfer of 5. - Page 16 ACHIEVEMENT AWARD 2005 2008 2007 2015 2008 2007 2015 2014 2015 2015 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. www.germanpool.com GPU-6SSM-M-23(1)
