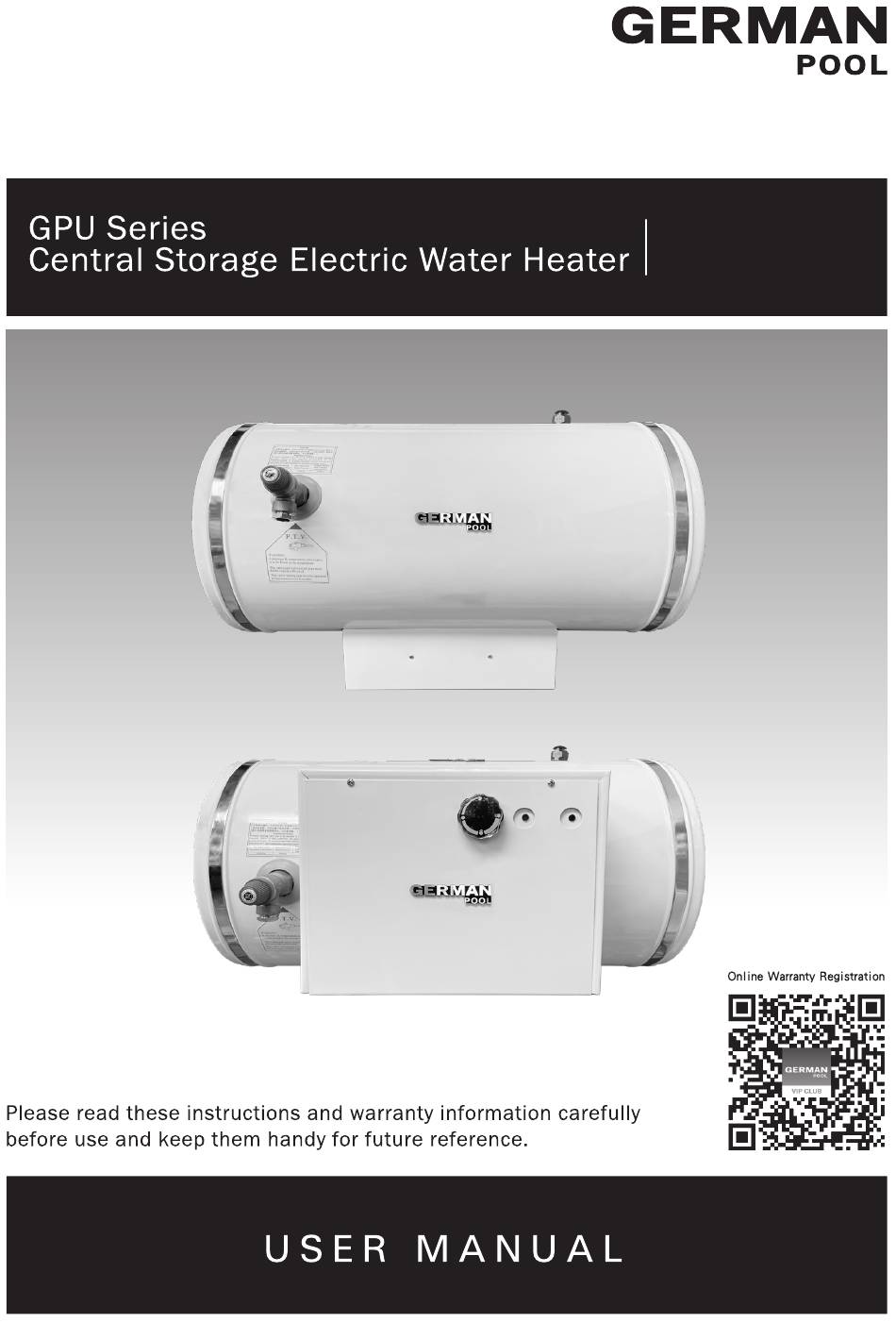

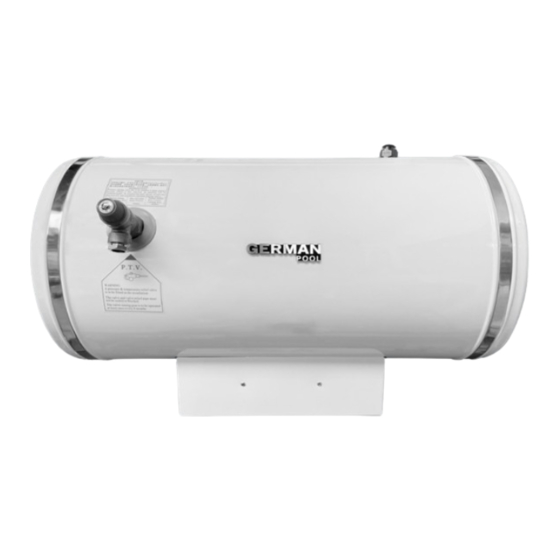

- Page 1 GPU-6.5SSJ...
- Page 2 請即進行保用登記﹗ 有關保用條款細則，請看本說明書最後一頁。 Please register your warranty information now! For Warranty Terms & Conditions, please refer to the last page of this user manual.
-
Page 3: Table Of Contents
目錄 Table of Contents 警告及注意事項 Warnings 產品特點 Features 產品規格 Specifications 安裝說明 Installation Instructions 產品結構 Product Structure 電路圖 Wiring Diagram 保用條款 Warranty Terms & Conditions... -
Page 4: 警告及注意事項 Warnings
30mA. Warning 警告 Please install water heater in accordance to the 若用戶需要安裝任何非隨機配件，必須先與 instructions stated on this booklet. German Pool 本公司認可之技術人員聯絡，否則本公司將 will NOT provide warranty service on any product 有權拒絕提供任何保養服務。 installed with unauthorized components or devices. -
Page 5: 產品特點 Features
* Under normal working conditions, incoming pressure should not exceed 0.6 MPa. Otherwise, a separate pressure control device is necessary. When incoming water pressure exceeds 0.6 MPa, German Pool will not provide any repair service until a pressure control device is installed. -
Page 6: 產品規格 Specifications
產品規格 Specifications 額定容 量 額定電壓 額定功率 參考重量 Rated Rated Voltage Rated Power Weight Capacity Model 型號 伏特 伏特 千瓦 千瓦 千克 千克 公升 （單相） （三相） （單相） （三相） （淨重） （滿水） Litre Volt Volt (1Phase) (3Phase) (1Phase) (3Phase) (Net Weight) (Filled) GPU-6.5SSJ-JS 220~ 16.5 41.5... -
Page 7: 安裝說明 Installation Instructions
安裝說明 Installation Instructions Pre-Installation Notice 安裝前注意 Installation should be done by a licensed 安裝必須使用原廠配件。若不按指示方法安 technician using the supplied parts. German Pool 裝及使用而引致任何損壞，本公司概不負責。 is not responsible for any defect or damage 安裝工作應由專業持牌水電技術人員負責。 caused by incorrect or unauthorized installation. 安裝定位 Positioning Position water heater near water tap / point of 熱水器應盡量安裝於接近出水龍頭之位置，以... - Page 8 安裝說明 Installation Instructions 接電方法 Electric Wiring 由電箱獨立伸延一條適合之電線（見下表）至浴 Use an independent wire (refer to table below) 室門外接駁獨立開關掣，再將電線伸延至熱水器 leading from the meter box and connect it to an 穿進灰色線夾接到電線排上分別接上零線（N）， independent on/off switch outside bathroom. 火線（L），及地線 等。 Extend the wire through the grey wire grip on the water heater.
- Page 9 安裝說明 Installation Instructions WARNING! 重要注意事項 After initial installation and water 儲水式電熱水器安裝並進行通水通 and electricity testings, if the storage 電測試後，如果不是繼續使用，而 water heater will not be put to use 是先擱置一段時間後再使用，測試 immediately, after testing is completed, 完畢必需進行以下程序： make sure to follow these instructions: 1. Disconnect water and power source; 1.
- Page 10 Note 注意 When incoming water pressure exceeds 0.6 MPa, 如來水壓力超過0.6 MPa而用戶未有安裝減壓 German Pool will not provide any repair service 器，本公司有權拒絕為熱水器進行任何維修。 until a pressure control device is installed. Draining 內膽排水 To drain out water from the inner tank, first switch 如要將內膽內的水排走，必須先關掉電源及水...
- Page 11 安裝說明 Installation Instructions Water Shortage 停水期間 During water shortage, do not drain water from 停水時不應將熱水器內之存水用盡，否則會導 inner tank. The heating element would be damaged 致發熱線損壞。恢復供水後，應先扭開熱水掣 if it is not submerged under water. When water 直至有水從花灑流出。待內膽注滿水後，用戶 supply resumes, turn on hot water tap and let water flows through the shower head before switching on 便可重新開啟電源。...
-
Page 12: 產品結構 Product Structure
產品結構 Product Structure GPU-6.5SSJ-JB GPU-6.5SSJ-JF Anti Back Siphonage Device 防倒流裝置 出水位 (熱) Outlet (Hot) 入水位 (冷) Inlet (Cold) Combined Thermostat / Cutout 溫度調節/超溫斷路器 Drain 排水管 Pressure & Temperature Relief Valve (PTV) 超溫及超壓排放閥 P.12... - Page 13 產品結構 Product Structure GPU-6.5SS-JS Anti Back Siphonage Device 防倒流裝置 出水位 (熱) Outlet (Hot) 入水位 (冷) Inlet (Cold) Combined Thermostat / Cutout 溫度調節/超溫斷路器 Drain 排水管 Pressure & Temperature Relief Valve (PTV) 超溫及超壓排放閥 使用外碼時注意：確定爐的安裝位置後，請先用螺絲將外碼固定在牆上，再將爐後蓋上 的方孔對準固定在牆上的外碼，向下將爐穩靠地固定掛在牆上。 Caution: After confirmation of installation location, properly secure the mounting bracket with screws on the wall, align the holes of the back plate of the water heater with the mounting bracket, and downwardly hang the water heater.
-
Page 14: 電路圖 Wiring Diagram
電路圖 Wiring Diagram 電路圖 GPU-6.5SSJ-JB / GPU-6.5SSJ-JF / GPU-6.5SSJ-JS (單相 1-Phase 220 V~) 電路圖 單項 繼電器 溫度調節/超溫斷路器 單項 溫度調節/超溫斷路器 繼電器 溫度調節/超溫斷路器 溫度調節/超溫斷路器 指示燈 指示燈 指示燈 指示燈 發熱線 發熱線 發熱線 發熱線 繼電器 繼電器 指示燈 、 、 指示燈 、 、 發熱線 發熱線 接外殼... -
Page 15: 保用條款 Warranty Terms & Conditions
- the serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, at its discretion, repair or replace any defective part. 4. 總代理有權選擇維修或更換配件或其損壞部份。 5. This warranty will be void if there is any transfer of 5. - Page 16 1 Andar A, Edf. Mei Kui Kuong Cheong Fase 2, 515 Av. do Conselheiro Borja, Macau Tel:+853 2875 2699 Tel:+86 757 2219 6888 Fax:+853 2875 2661 Fax:+86 757 2219 6809 GPU-6.5SSJ-M-22(1)
