OPTIONAL ACCESSORIES
SHREDDER KIT
P/N 890209.
Shreds leaves, reducing total
volume.
HEAVY DUTY VACUUM
HOSE KIT
P/N 900998. 4"
(102mm)
7'
(2.13m)
For vacuuming in hard to
reach areas.
NOZZLE WEAR PLATES
P/N 890413.
(STD. ON KD511HS)
Extends nozzle life when
used along curbs and hard
surfaces.
OPTIONAL DEBRIS BAGS
STANDARD TURF PRO
DEBRIS BAG
P/N 890028.
For use in leaves and grass in
non-dusty conditions.
DEBRIS BAG COVER
P/N 900801
Directs dust downward away
from operator.
ZIPPERLESS QUICK BAG
P/N 890309
For non dusty conditions that
are damaging to zippers.
CASTER KIT
P/N 890412
For use on hard surface
3
ENGINE: H.P.
ENGINE: TYPE
ENGINE: FUEL CAP
ENGINE: OIL CAP
W EIGHT: UNIT
W EIGHT: SHIPPING
W EIGHT: ENGINE
UNIT SIZE:
Part No. 890033
1
x
Operator Owner's Manual
Specifications
KD511IC
5.0 (3.73 kW )
B&S I/C
1.5qt. (1.4 L)
0.63qt. (0.6 L)
103# (46.7 kg)
126# (57.2 kg)
24.38# (11.05 kg)
OVERALL LENGTH: 62"(1.57m) OVERALL WIDTH 26.75" (0.68m)
T h a n k Yo u f o r S e l e c t i n g
The Powerful KD VACUUM
KD511IC, KD511H, KD511HS, KD611
KD511H
5.5 (4.11 kW )
HONDA OHV
2.01qt. (1.9 L)
0.69qt. (0.65 L)
112# (50.8 kg)
135# (61.2 kg)
36# (16.3 kg)
Page 1 of 8
KD511HS
5.5 (4.10 kW )
6.0 (4.48 kW )
HONDA OHV
B&S INTEK I/C
2.01qt. (1.9 L)
1.6qt. (1.5 L)
0.69qt. (0.65 L)
0.69qt. (0.65 L)
122# (55.3 kg)
145# (65.8 kg)
145# (65.8 kg)
168# (76.2 kg)
36# (16.3 kg)
28# (12.7 kg)
OVERALL HEIGHT 42" (1.07m)
KD611
Form No. F0f022502C
Advertisement
Table of Contents
Related Manuals for Billy Goat KD511H
Summary of Contents for Billy Goat KD511H
-
Page 1: Specifications

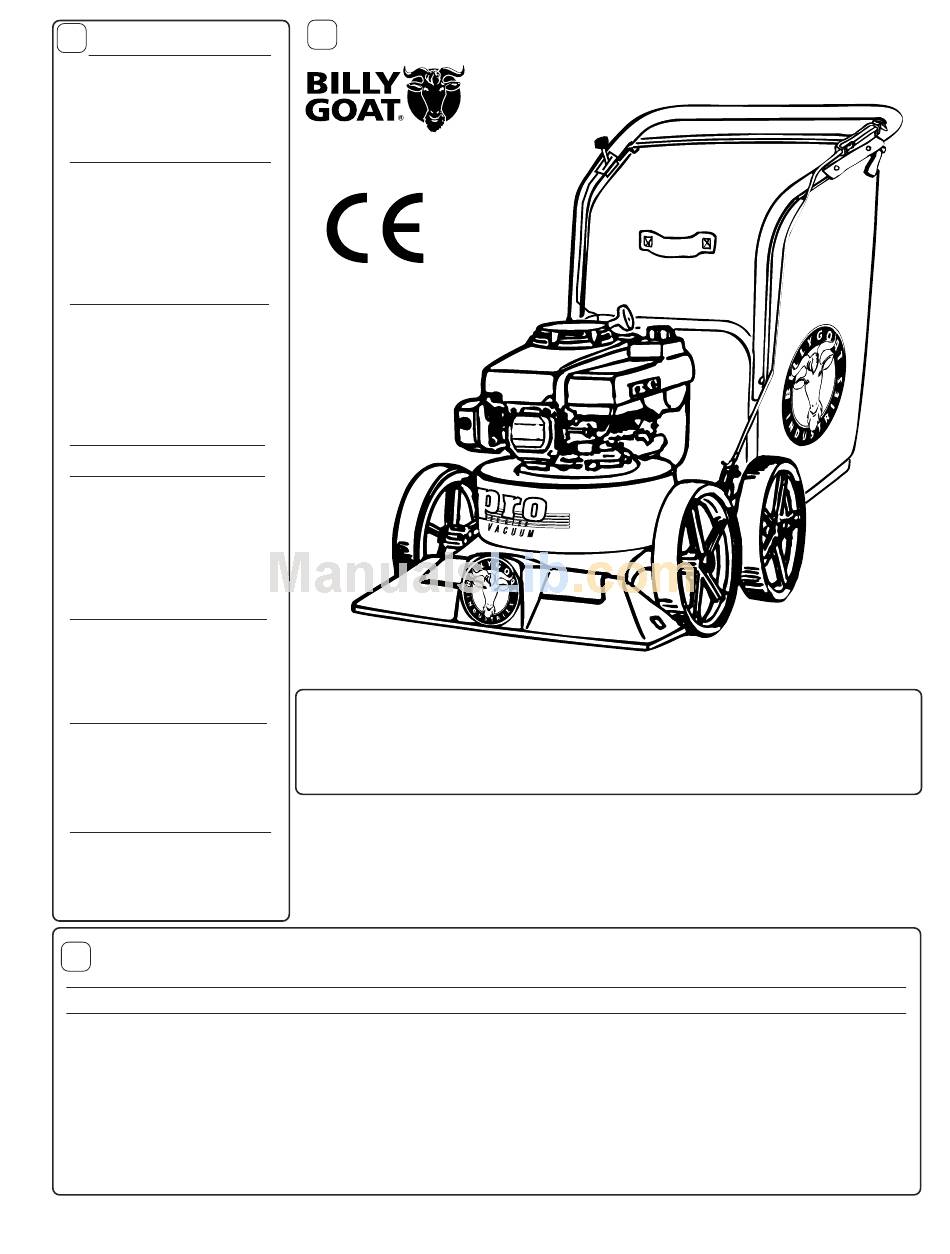

Part No. 890033 T h a n k Yo u f o r S e l e c t i n g The Powerful KD VACUUM Operator Owner's Manual KD511IC, KD511H, KD511HS, KD611 Specifications KD511IC KD511H 5.0 (3.73 kW ) 5.5 (4.11 kW ) -
Page 2: Table Of Contents
Sound level of 96 dBA at operator position GENERAL CONDITION: TEMPERATURE: WIND SPEED: 111 dB WIND DIRECTION: (KD511H MODEL) HUMIDITY: 30.18" Hg (767mm Hg) BAROMETRIC PRESSURE: OPERATOR Page 2 of 8 21. DO NOT touch hot muffler, cylinder, or fins because contact may cause burns. -
Page 3: General Safety
GENERAL SAFETY For your safety and the safety of others, these directions should be followed: Use of Ear Protection is recommended while operating this machine. Use of Eye and Breathing protection is recom- mended when using this machine, especially in dry and dusty conditions. - Page 4 WARNING EXPLOSIVE FUEL STOP ENGINE AND ALLOW T O COOL BEFORE REFUELING. DANGER STOP SLOW FAST IN U.S.A. USE UNLEADED GASOLINE ONLY IMPORTANT ENGINE INFORMATION BRIGGS & STRATTON CORPORATION FAMILY VBS190U1G1RB:EM DISPLACEMENT 190cc. MODEL 12VOHV T E R A N S T R L A B S a r e d a m a e e P N e P N E e m N o P N 4...
-
Page 5: Operation
OPERATION INTENDED USE: This machine is designed for vacuuming leaves, grass clippings and other types of organic litter and for chipping brush, limbs, corn and sunflower stalks and palm fronds. Debris mixed with cans, bottles and small amounts of sand can be vacuumed;... - Page 6 PARTS DRAWING KD511H, KD511HS, KD511IC, KD611 Part No. 890033 Page 6 of 8 Form No. F022502C...
- Page 7 1/2-13 CAP NUT NP W/PATCH LABEL DANGER FLYING MATERIAL LABEL DO NOT FILL WHEN ENGINE IS HOT CONNECTOR BAG QUICK LABEL READ OWNER'S MANUAL LABEL EAR/EYE BREATHING Part No. 890033 KD511IC KD511H Part No. Part No. 890023 890023 850270 850270 *8160001...
-
Page 8: Maintenance
Before Requesting Service Review These Suggestions Possible Cause Please fill in the WARRANTY CARD and send the upper part to Billy Goat. The WARRANTY terms are stated on the lower part which remains with the user. Whenever a Billy Goat Machine is faulty due to a defect in material...
