Summary of Contents for E+E Elektronik HTP501
- Page 1 User Manual HTP501 Digital Humidity and Temperature Probe up to 120 °C (248 °F)
-
Page 2: Table Of Contents
RH and T Calibration and Adjustment .......................22 Repairs ..............................23 Spare Parts ...............................23 Accessories ..............................23 Technical Data ..............................24 Conformity ................................26 Declarations of Conformity ........................26 FCC Part 15 Compliance Statement ......................26 ICES-003 Compliance Statement ......................26 DNV Type Approval ...........................26 HTP501 Digital Humidity and Temperature Probe | 2... -
Page 3: General Information
All rights reserved by E+E Elektronik Ges.m.b.H. No part of this document may be reproduced, published or publicly displayed in any form or by any means, nor may its contents be modified, translated, adapted, sold or disclosed to a third party without prior written permission of E+E Elektronik Ges.m.b.H. -
Page 4: Safety Instructions
Failing to follow the instructions in this user manual may lead to measurement inaccuracy and device failures. ▪ The HTP501 may only be operated under the conditions described in this user manual and within the specification included in chapter 8 Technical Data. ▪... -
Page 5: Environmental Aspects
Environmental Aspects PLEASE NOTE Products from E+E Elektronik Ges.m.b.H. are developed and manufactured in compliance with relevant environmental protection requirements. Please observe local regulations for the disposal of the device. For disposal, the individual components of the device must be separated according to local recycling regulations. -
Page 6: Product Description

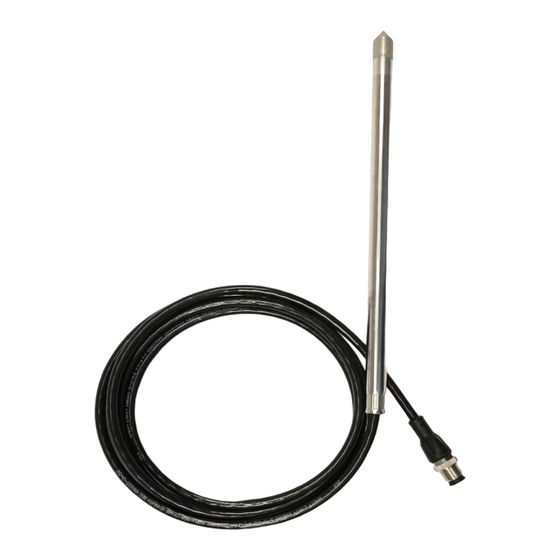

3 Product Description General The HTP501 is a robust probe for humidity and temperature measurement in air and other non-explosive gases. It features a humidity measuring range of 0...100 %RH and a temperature measuring range of -40...+120 °C (-40...+248 °F). The probe calculates all humidity-related quantities. Type T10 ist designed for pressure-tight installation from 0.01 (0.15 psi) up to 20 bar (290 psi). -
Page 7: Dimensions
The manufacturer cannot be held responsible for personal injuries or damage to property as a result of incorrect handling, installation, wiring, power supply and maintenance of the device. The relations of electrical potential between a bus system and an HTP501 probe are characterized by the following properties: ▪... -
Page 8: Mounting And Installation
In such a case, the HTP501 may be for instance fixed onto a wall with the stainless steel mounting clip HA010225 (not included in the scope of supply, see data sheet “Accessories”), or freely hang from the ceiling on the connection cable. -
Page 9: Duct Mount
Working with pressurised pipes poses a considerable risk of injury and damage to property. When installing a HTP501-T4 in a pressurised system, precautions must be taken to prevent the sensor from shooting out. The internal feed-through (to the electronics) is suitable for up to 20 bar (290 psi). The actual working pressure (<20 bar (<290 psi)) will be determined by the choice of feed-through. - Page 10 Re-mounting: ▪ Slide the measurement probe with clamping ring into the fitting as far as it goes. ▪ Tighten the nut finger-tight, then tighten by approx. a ¼ turn using a spanner. HTP501 Digital Humidity and Temperature Probe | 10...
-
Page 11: Installation Of The Probe Directly In The Process
For direct probe installation shut-off valves shall be placed on both sides of the probe insert (see Fig. 4 Installation of the HTP501-T10 probe directly into the process). This allows the sensor probe to be easily removed for maintenance and calibration. -
Page 12: Installation Of The Probe With Ball Valve Set
(is not available for an NPT thread) Lock nut Sealing element 2 Sealing element 1 Adapter body Inside diameter ≥13.1 mm (0.55") Fig. 5 Installation of the probe by utilizing the ball valve set HTP501 Digital Humidity and Temperature Probe | 12... -
Page 13: Recommendations For Accurate Humidity And Temperature Measurement
1013.25 mbar. 5 Setup and Adjustment The HTP501 is ready to use and does not require any configuration by the user. The factory setup of HTP501 corresponds to the specified order code. Please refer to the datasheet at www.epluse.com/htp501. If needed, the user can change the factory setup with the help of the free PCS10 Product Configuration Software and the Modbus configuration adapter (order code HA011018). -
Page 14: Modbus Setup
User Manual HTP501 NOTICE The HTP501 may not be connected to any additional power supply when using the Modbus configuration adapter HA011018. HA011018 Fig. 6 HTP501 connected to a PC running PCS10 Besides an individual probe naming, the communication parameters may be changed. For the purpose of pressure compensation, the barometric air pressure at the operating site may be set. - Page 15 1) Register number (decimal) starts from 1. 2) Register address (hexadecimal) starts from 0. 3) Number of registers 4) For Modbus address and protocol settings see Application Note Modbus AN0103 (available at www.epluse.com/htp501). 5) See chapter 5.5 Device Status Indication. 6) Ambient pressure in mbar, with 2 decimal digits (e.g. 1 008.25), default value 1 013.25 mbar.
-
Page 16: Modbus Register Map
Mixing ratio r gr/lb 1123 kJ/kg 1125 Specific enthalpy h ft lbf/lb 1127 BTU/lb 1129 °C 1131 Frost point temperature Tf °F 1133 1149 °C 1237 Ice bulb temperature Ti °F 1239 1241 HTP501 Digital Humidity and Temperature Probe | 16... - Page 17 3) Examples: For scale 100, the reading of 2550 means a value of 25.5. For scale 50, the reading of 2550 means a value of 51. Tab. 3 HTP501 FLOAT32 and INT16 measured data registers HTP501 Digital Humidity and Temperature Probe | 17...
-
Page 18: Configurable Custom Modbus Map
PCS10 Product Configuration Software and the USB configuration cable HA011018. The PCS10 can be downloaded free of charge from www.epluse.com/pcs10. ▪ Modbus protocol commands, refer to the example in chapter 5.6 Modbus RTU Examples. HTP501 Digital Humidity and Temperature Probe | 18... -
Page 19: Device Status Indication
Please refer to ▪ MODBUS APPLICATION PROTOCOL SPECIFICATION V1.1b3, chapter 6: www.modbus.org/docs/Modbus_Application_Protocol_V1_1b3.pdf ▪ E+E Application Note Modbus AN0103 (available at www.epluse.com/htp501) Read the temperature (FLOAT32) T = 25.087642669677734375 °C from register address 0x3EA: Master (e.g. PLC) HTP501 Request [Hex]: Modbus... - Page 20 Hi address Lo registers Hi registers Lo Response [Hex]: Modbus Function Byte Register 1 Register 1 Register 2 Register 2 address code count value Hi value Lo value Hi value Lo HTP501 Digital Humidity and Temperature Probe | 20...
-
Page 21: Maintenance And Service
Data representation according to IEEE754 6 Maintenance and Service HTP501 does not require any special maintenance, nevertheless for high accurate measurements especially over wide RH and T ranges it is recommended to calibrate the probe every 12 months. If needed, the enclosure may be cleaned and the device may be re-adjusted as described below. -
Page 22: Filter Cap Replacement
Protection during Site Cleaning Operations During site cleaning or sterilization process, if the HTP501 remains on the measuring site the sensing head can be protected with the optional protection cap for 12 mm (0.47”) probe (HA010783, see datasheet “Accessories”). -
Page 23: Repairs
Y-style splitter M12 - M12 HA030204 Protection cap M12 socket connector HA010781 Protection cap M12 plug connector HA010782 Protection cap for Ø12 mm probe HA010783 Drip water protection HA010503 SWAGElok fitting for type T4 HA011102 HA011103 HTP501 Digital Humidity and Temperature Probe | 23... -
Page 24: Technical Data
Output Digital Digital interface RS485 (HTP501 = 1 unit load) Protocol Modbus RTU Default settings Baud rate 9 600, parity even, 1 stop bit, Modbus address 69 T [°C] Supported baud rates 9 600, 19 200, 38 400, 57 600, 76 800 and 115 200 Data types for measured values FLOAT32 and INT16 HTP501 Digital Humidity and Temperature Probe | 24 ∆T [°C]... - Page 25 As designated laboratory (NMI) responsible for maintaining the National Standard for humidity and temperature in Austria, E+E Elektronik represents the highest instance in humidity and temperature calibration. HTP501 Digital Humidity and Temperature Probe | 25...
-
Page 26: Conformity
User Manual HTP501 9 Conformity Declarations of Conformity E+E Elektronik Ges.m.b.H. hereby declares that the product complies with the respective regulations listed below: European directives and standards. UK statutory instruments and designated standards. DNV (Det Norske Veritas) maritime type approval. - Page 27 T +39 02 2707 86 36 info.it@epluse.com E+E Elektronik Korea Ltd. T +82 31 732 6050 info.kr@epluse.com E+E Elektronik Corporation T +1 847 490 0520 info.us@epluse.com BA_HTP501 | Version v2.0 | 05-2024 © Copyright E+E Elektronik Ges.m.b.H. | All rights reserved.
