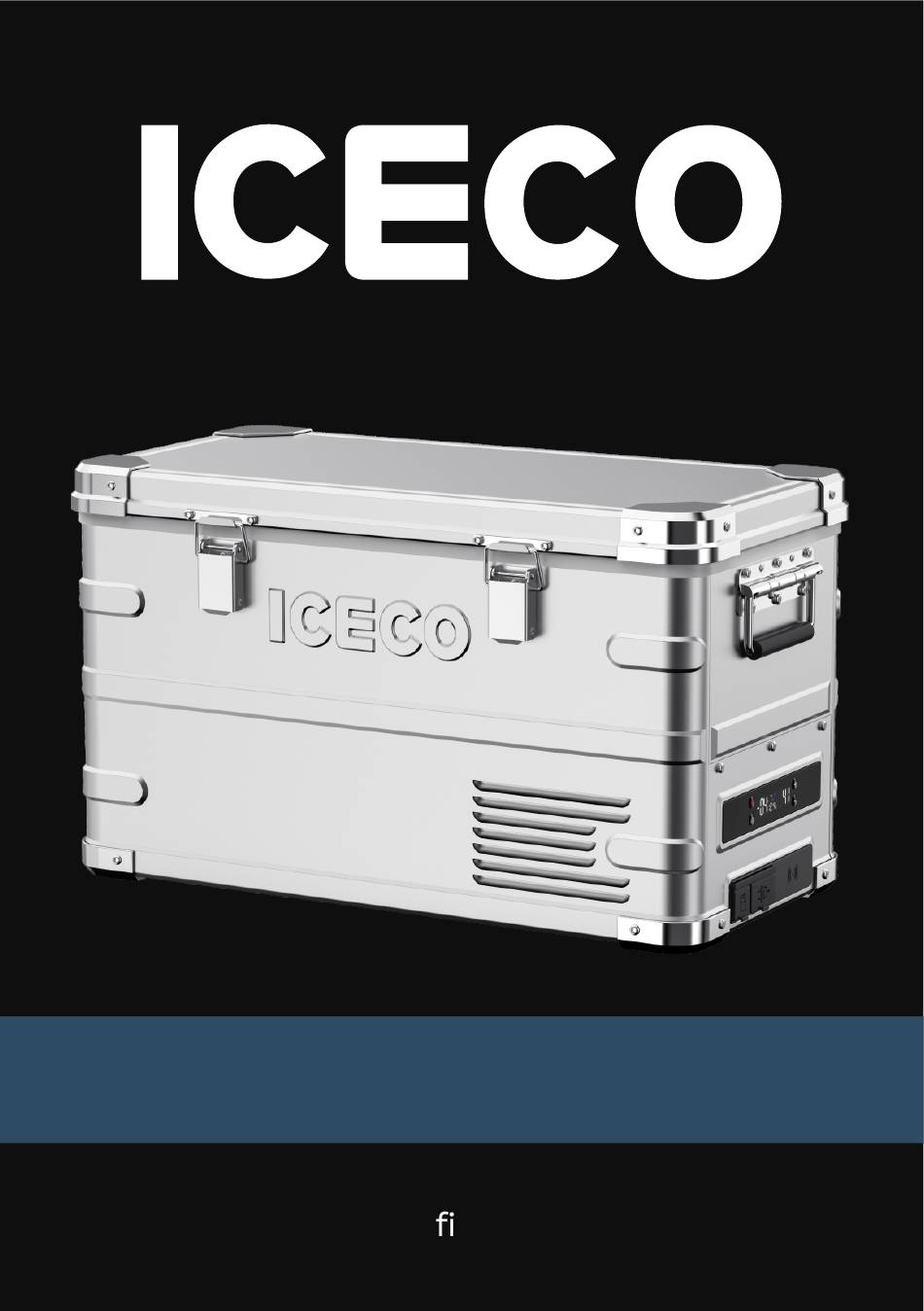

- Page 1 APL35 V 1.0 Please email us at: of cial@icecofreezer.com...
- Page 2 Catalogue Supply Details ........Operation ................2.1 ON/OFF Button ......Temperature Setting ........Setting Mode ........2.3.1 MAX/ECO Mode ....2.3.2 Triple Battery Protection Operation ......2.3.3 Fahrenheit/Celsius Switching ......Single/Dual Zone Mode App Control ........Error Code And Solutions ....
- Page 3 Catalogue Troubleshooting (Q & A) ......Heat Resistance & Water Resistance What should I do if the refrigerator ... is upside down when it is delivered? Why did it change back to the original temperature after setting the temperature? What is the function of triple battery protection? .....
- Page 4 Supply Details Refrigerator x1 12/24V DC Cigarette 100-240V~ Universal Lighter Plug Cable x1 AC Adapter x1...

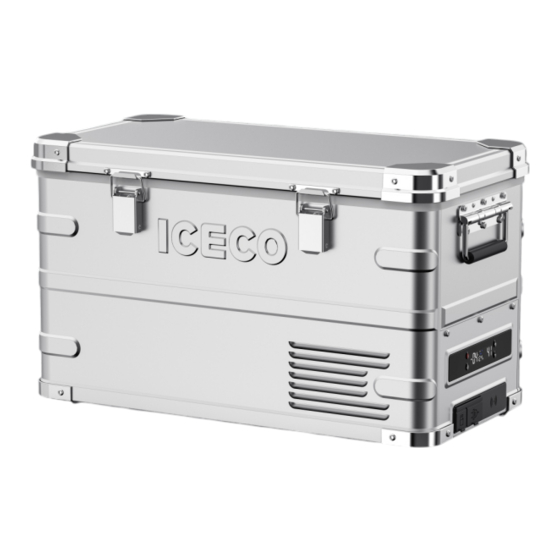

- Page 5 MODEL APL35 27 x 14.3 x 15.7 inches Dimensions (LxWxH) (686 × 364 × 398 mm) Net Weight 32 lbs (14.5 kg) Capacity 37 quarts (35 liters) Voltage DC 12/24V Temperature Range -4°F to 68°F (-20°C to +20°C) C-pentane Insulation...
- Page 6 Operation ℃ ℉ ECO MAX Power (Long press to turn on/o ) Setting Mode Temp.Setting (Up) Temp.Setting (Down)
- Page 7 2.1 ON/OFF Button Supply power to the refrigerator via DC or AC (with AC adapter). Press and hold the " " button for 1 second to power on or power o the refrigerator. 2.2 Temperature Setting With the device powered on, short press the "...
- Page 8 If there's no activity, the digital display will stop ashing after 5 seconds, saving the temperature settings for both compartments and returning to normal display.) The default temperature is set to 0°C at the factory. 2.3 Setting Mode Long press the " "...
- Page 9 The available operating modes are "ECO" and "MAX" (only the currently selected mode will be displayed). After switching modes, wait for 5 seconds before the switch to the new mode takes e ect. The default mode at the factory is "MAX". 2.3.2 Triple Battery Protection Operation Select Triple Battery Protection Operation, when the current battery protection level start...
- Page 10 PROTECTION MED HIGH VOLTAGE POSITION 10.4 11.1 CUT OFF (V) 10.9 11.7 12.4 CUT IN (V) 21.3 22.8 24.3 CUT OFF (V) 22.7 24.2 25.7 CUT IN (V) The default factory setting is "M". 2.3.3 Fahrenheit/Celsius Switching Select Fahrenheit/Celsius Switching, when the current temperature unit font start ashing, press the "...
- Page 11 2.4 Single/Dual Zone Mode This model supports freely switching between single zone mode and dual zone mode. Using the control panel buttons to deactivate one of the compartments. -In the powered-on state, simultaneously press and hold the " " and " "...
- Page 12 App Control Android APP Download and Installation: Android users can nd the "ICECO" app on the Android market, and iPhone users can locate it on the App Store by searching for "ICECO". Download the app by scanning the QR code above using your mobile phone's QR code scanner.
- Page 13 Error Code And Solutions Error Code And Solutions Code Description The DC Voltage is below the protection settings and the battery protection mode is activated. The cooling fan is over-loaded with more than 1A of current. Repeated switching of the machine or a faulty input voltage causes this motor start error.
- Page 14 E1 Error Code The DC Voltage is below the protection settings and the battery protection mode is activated. E1 Solutions 1. In case of using in the car, turn the car ignition on and start the refrigerator again; 2. In the case of using the AC adapter to connect the electricity at home, you can adjust the battery protection to medium or low mode.
- Page 15 E2 Error Code The cooling fan is over-loaded with more than 1A of current. E2 Solutions If the fan does not start but the compressor does, this is a short-circuited fan. You can x the error code by replacing the fan. E3 Error Code Repeated switching of the machine or a faulty input voltage causes this motor start error.The...
- Page 16 E3 Solutions 1. Make sure to turn o the machine and wait for 5 minutes before turning it on again. If the compressor starts and then stops a few seconds later, it is an E1 fault, and you need to refer to the above E1 troubleshooting method for troubleshooting;...
- Page 17 E4 Solutions 1. Make sure to turn o the machine and wait for 5 minutes before turning it on again. If the compressor starts and then stops a few seconds later, it is an E1 fault, and you need to refer to the above E1 troubleshooting method for troubleshooting;...
- Page 18 E5 Error Code Compressor control module temperature too high or too low protection. (ambient temperature is too high or too low, or the system load is too high, causing the internal temperature of the module/ECU > 212°F or< 14°F) E5 Solutions 1.
- Page 19 E6 Error Code NTC open circuit/short circuit fault E6 Solutions Check the temperature sensing head to see if the connection is tight. If it is loose, reconnect it and install it in place. E7 Error Code Display panel and control board communication failure.
- Page 20 E7 Solutions 1. Check if the internal circuit board connections are securely fastened. If loose, reconnect them and ensure they are properly installed. 2. If the circuit board connectors are damaged, replacing the circuit board should resolve the issue.
- Page 21 Cleaning And Maintenance 5.1 Cleaning Always unplug the fridge before cleaning the fridge. You can clean the interior and exterior of the fridge by using warm water, mixed with a gentle non-abrasive detergent. You may use a soft sponge, or micro ber cloth.
- Page 22 5.2 Danger Behavior Use pointed objects to scrape, or defrost ice. Use abrasive detergents to clean. Use heavy duty sponges (due to scratching). Clean the fridge with running water or pressure washer. Clean the fridge without power input covers secured.
- Page 23 Troubleshooting (Q & A) 6.1 Heat Resistance & Water Resistance Heat Resistance ICECO refrigerators are engineered to operate at an ambient temperature of up to 55°C (131°F). Water Resistance ICECO refrigerators can operate under light rain conditions. Please keep the...
- Page 24 6.2 What should I do if the refrigerator is upside down when it is delivered? Please leave your refrigerator upright for 24 hours to allow the compressor lubricant to resettle before powering on the fridge. Otherwise it may contribute to certain operation abnormalities.
- Page 25 6.4 What is the function of triple battery protection? How do they work? The triple battery protection is designed to prevent over-discharge and battery depletion. When the measured DC voltage is below the set value, the compressor is shut o to prevent battery depletion. PROTECTION VOLTAGE HIGH...
- Page 26 6.5 Why is there a temperature di erence (between the actual temperature of the refrigerator and the set temperature)? Because of the sinking nature of cold air, the di erent temperatures may exist in di erent locations in the refrigerator (the temperature of the bottom will be the lowest).
- Page 27 6.7 What is the speci cation of the fuse of the refrigerator? The supply line is protected by a 15A fuse located in the refrigerator. If you have any problems or questions about the product Please call us: +1 (888) 606 1046 (Mon-Fri 9:00am-6:00pm PT) Please email us: cial@icecofreezer.com...
- Page 28 Warranty & Return Policy 30 days refund guarantee upon receiving. 5 years warranty on the compressor. warranty for other parts or 1 year accessories. For returns or exchanges, please contact us. Call us: +1 (888) 606 1046 (Mon-Fri 9:00am-6:00pm PT) Email us: cial@icecofreezer.com (for Amazon orders)
- Page 29 If the product is received damaged or defective during transportation, you will need to contact our customer service within 2 business days. Make sure to provide relevant photos or videos, your order ID number, and your name. A customer service agent will help assist into solving the issue at a timely manner (Return, Exchange, or Discount Compensation).
- Page 30 Safety Instruction Please read the user manual and safety instructions carefully before using the appliance. By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have.
- Page 31 Do not leave the refrigerator unattended in uncovered, outdoor areas exposed to the elements. Do not use this appliance near direct heatsources, such as an open ame or radiator. Do not place open containers of liquid inside the fridge. Please don't put hot/warm food into the fridge directly without letting it cooling o .
- Page 32 WARNING! Please keep the fridge in a well ventilated area. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
- Page 33 Do not touch the compressor or the condenser when the fridge is operating. They may be very hot. When setting up the appliance, ensure the supply cord is not trapped or damaged. Further information is provided on the technical data label inside the product.
- Page 34 3. This appliance is intended to be used in household and similar applications such as *sta kitchen areas in shops, o ces and other working environments; *farm houses and by clients in hotels, motels and other residential type environments; *bed and breakfast type environments; *catering and similar non-retail applications.
- Page 35 FCC warning: Any Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 36 Cooler Than A Cooler...
