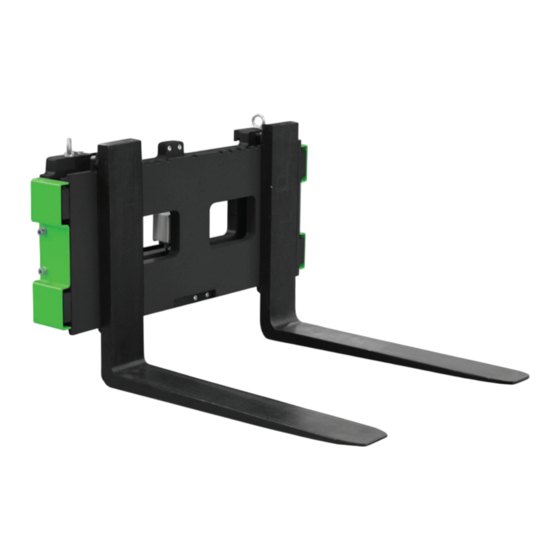

Forklift scale

Advertisement

Quick Links

RL-MFLS
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RL-MFLS and is the answer not in the manual?

Questions and answers

Summary of Contents for Rice Lake RL-MFLS

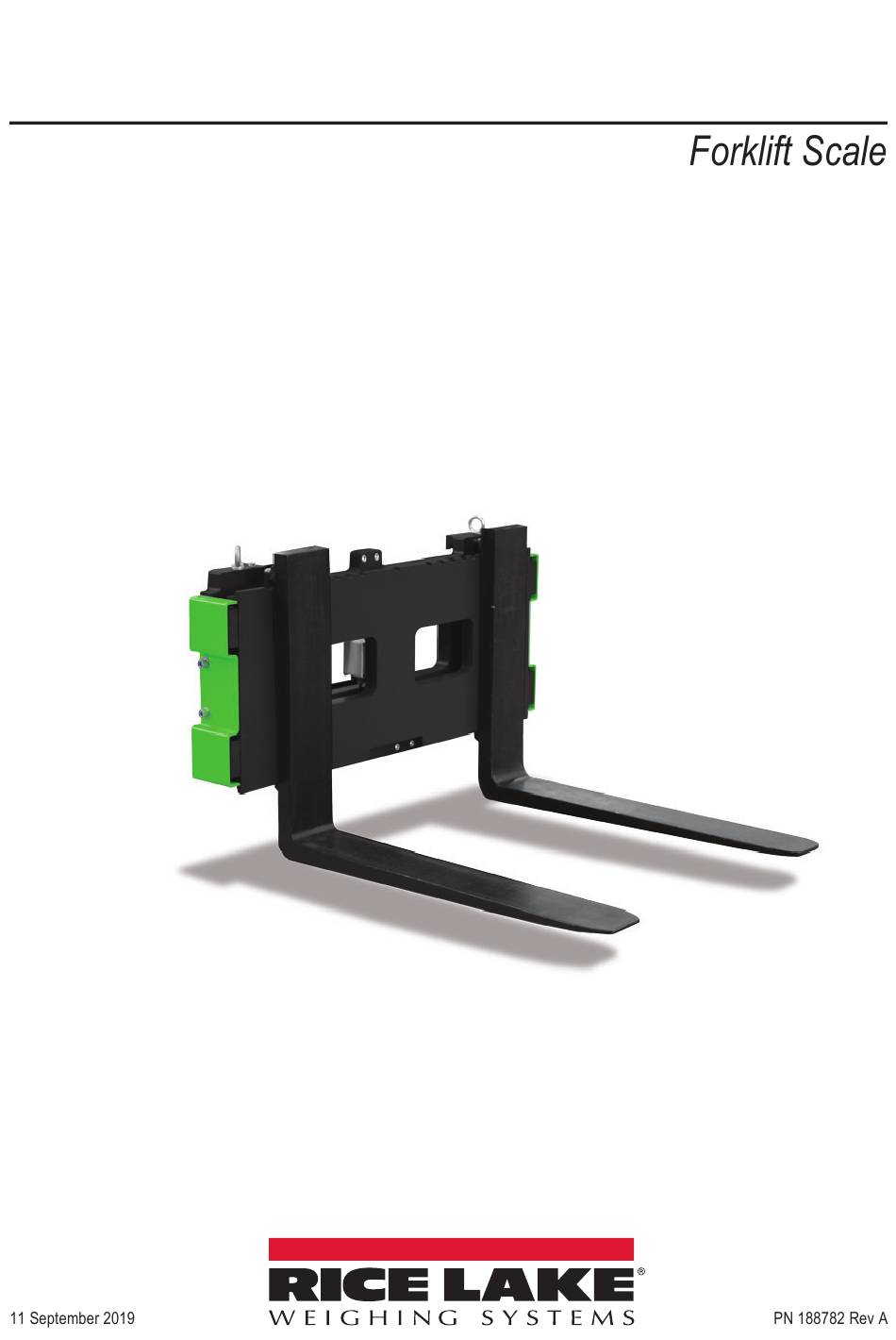

  • Page 1 RL-MFLS Installation Manual...
  • Page 2 www.ricelake.eu...
  • Page 3: Table Of Contents

    CONTENTS GENERALITIES ......................page 2 INSTALLATION NORMS ....................page 3 INSTALLATION & CONNECTION OF THE WEIGHT INDICATOR....... page 5 USE AND MAINTENANCE.................... page 6 DECLARATION OF CONFORMITY................page 7...
  • Page 4: Generalities

    WEIGHING FIELD: 0-2500 kg Max. IMPORTANT WARNING Installing the RL-MFLS equipment on board of your lift truck will mean a modification of the original performance of the truck. The maximum lifting capacity of the lift truck should not exceed the limit of 2500 kg and cannot in any case exceed the value of the RESIDUAL CAPACITY of the lift truck in the various lifting conditions;...
  • Page 5: Installation Norms

    Fix the cable coming from the junction box with the appropriate bracket at the point (point 7 drawing 1) of the RL-MFLS plate. The second fitted bracket must be fixed in a place that is suitable for satisfying the above mentioned requirements.
  • Page 6: Connection Terminal

    DRAWING 2 CONNECTION TERMINAL: S- EX+ EX- CONNECTING SCHEME OF JUNCTION BOX (JBOX) Terminal | Indicator connection | Load cells | Inclinometer (JBOX) | cable | SBK model | (Just in the approved model) ------------------------------------------------------------------------------------------------------------------------- | Brown | Brown | Brown | White | Green | White...
  • Page 7: Installation & Connection Of The Weight Indicator

    WARNING !! With the inclination in a perfect vertical position, the forks MUST NOT TOUCH THE GROUND. Otherwise a careful adjustment must be made by the manufacturer or service man of the lift truck. A possible violent fall to the ground of the forks can cause unrepairable damages to the load cells which have been designed to sustain knocks and overloads from the top towards the bottom.
  • Page 8: Use And Maintenance

    USE AND MAINTENANCE The RL-MFLS system of opposing plates has been designed and built for working in harsh conditions without compromising the accuracy and safety of the instrument. It is in any case recommendable to respect some norms of use and maintenance in order to maintain in the long time the efficiency of the instrument.
  • Page 9: Declarationof Conformity

    DECLARATIONOF CONFORMITY RL-MWF, RL-MFLS 2014/30/EU EMC EN 61000-6-2:2015, EN 61000-6-4:2007+A1:2011, EN61326-1:2013, EN55011:2009 +A1:2010 2014/35/EU LVD EN 61010-1:2010 2011/65/EU RoHS EN 50581:2012 Devices marked with the legal metrology marking: / Geräte, die mit der gesetzlichen Messtechnik gekennzeichnet sind: / Appareils marqués du marquage métrologique légale:...
  • Page 10 © Rice Lake Weighing Systems Europe B.V. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. NL-6666 MH Heteran • Netherlands TEL: +31 (0)26 472 1319 • FAX: +31 (0)88 234 9100 www.ricelake.eu...
