Summary of Contents for Eaton 1000L
-
Page 2: Table Of Contents
Contents : 1 . INT RO D UC TIO N ....................1 2 . IM PO RT AN T S AF E TY IN ST RU CT IO N S............2 3 . S YS TEM DE SC RIPT IO N ...................4 3 .1 Front Pan el......................4 4 . -
Page 3: Introduction

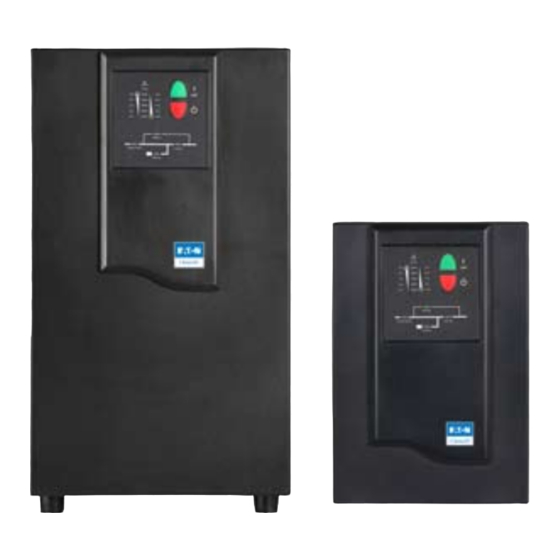

1. INTRODUCTION The On-Line-Series is an uninterruptible power supply incorporating double-converter technology. It provides perfect protection specifically for Novell, Windows NT and UNIX servers. The double-converter principle eliminates all mains power disturbances. A rectifier converts the alter- nating current from the socket outlet to direct current. This direct current charges the batteries and powers the inverter. -
Page 4: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This Manual Contains Important Instructions that should be Followed during Instal- lation and Maintenance of the UPS and Batteries. ● Intended for Installation in a Controlled Environment. ● Servicing of Batteries Should be Performed or Supervised by Personnel Knowledgeable of Batteries and the Required Precautions. - Page 5 2. IMPORTANT SAFETY INSTRUCTIONS ● Do not connect appliances or items of equipment which would overload the UPS system (e.g. laser printers) to the UPS outlet socket. ● Place cables in such a way that no one can step on or trip over them. Operation ●...
-
Page 6: System Description
3. SYSTEM DESCRIPTION 3.1 Front Panel Indicator 1(Fault) Indicator 2 Power On/ Indicator 3 Alarm Silence Indicator 4 Power Off Indicator 5 Indicator 6 Bypass Indicator Inverter Indicator Utility Power Battery Indicator Indicator Figure 1 : Display panel Switch Function 1. - Page 7 3. SYSTEM DESCRIPTION Display Function 1. The green LINE LED lights up if mains voltage is applied to the UPS input. 2. LINE-LED blinks when the phase and neutral conductor have been LINE-LED reversed at the input of the UPS system. 3.
-
Page 8: Connection And Operation
3) Connection method. Connection Method of the UPS Input If the UPS is connected via the power cord, please use a proper socket with protection against 1000L/1000LXL electric current, and pay attention to the capacity of the socket: over 12A for 1500L/1500LXL... - Page 9 4. CONNECTION AND OPERATION 1500LXL (4 pcs of 12V batteries),96VDC for 3000LXL (8 pcs of 12V batteries), Connection of batteries more than or less than required will cause abnormality CAUTION! The output sockets of the UPS system may still be electrically live even if the power supply system has been disconnected.
-
Page 10: Troubleshooting
5. TROUBLESHOOTING If the UPS system does not operate correctly, please attempt to solve the problem using the table below. Problem Possible cause Remedy No indication, no warning tone even though system Check building wiring socket outlet, No input voltage is connected to mains check input cable power supply... -
Page 11: Maintenance
6. MAINTENANCE 6.1 Operation The UPS system contains no user-serviceable parts. If the battery service life (3 - 5 years at 25 °C ambient temperature) has been exceeded, the batteries must be exchanged. In this case please contact your dealer. 6.2 Storage If the batteries are to be stored in temperate climatic zones, they should be charged every three months for 1-2 hours (see Chapter “Connection and Operation”). -
Page 12: Technical Data
7. TECHNICAL DATA 7.1 Electrical specifications Model 1000L(XL) 1500 L(XL) 3000 L(XL) INPUT Voltage 60VAC~138 VAC Frequency 46Hz ~ 54Hz / 56Hz ~ 64Hz Amperage(maximu OUTPUT 1kVA 1.5kVA 3kVA Power rating 0.7k W 1.05kW 2.1kW Voltage 110/115/120VAC Frequency (50Hz/60Hz)±0.2Hz (Battery Mode) -
Page 13: Emc
7. TECHNICAL DATA 7.4 EMC -EFT IEC61000-4-4 Level 4 -Surge IEC61000-4-5 Level 4 -ESD IEC61000-4-2 Level 4 DX1000/3000 IEC61000-4-3 Level 3 -Conduction FCC PART 15 Class B -Radiation FCC PART 15 Class B 7.5 Communication Port The type of signals, serial command(RS232), is provided by the UPS to communicate with a host computer. -
Page 14: As400 Interface
7. TECHNICAL DATA 7.5.2 AS400 Interface Except for the communication protocol as mentioned above, this series UPS has AS400 card (an optional accessory) for AS400 communication protocol.Please contact your local distribu- tor for details. The following is the pin assignment and description of DB-9 connector in AS400 card. Description Pin# Output... -
Page 15: Appendix
8. APPENDIX Communication Port Intelligent Slot C ooling Fan Breaker R J45 Output Socket Input Socket Figure 4: Back view of DX1000L Communication Port Intelligent Slot C ooling Fan External Battery Socket Breaker R J4 5 Output Socket Input Socket Figure 5: Back view of DX1000LXL ---13---... - Page 16 8. APPENDIX Communication Port Intelligent Slot Intelligent Slot C ooling Fan RJ45 Breaker Output Socket Output Socket Input Socket Figure 6: Back view of DX1500L Communication Port Intelligent Slot Intelligent Slot C ooling Fan External Battery Socket R J45 Breaker Output Socket Output Socket Input Socket...
- Page 17 8. APPENDIX Communication Intelligent Slot P ort C ooling Fan Fuse Output Socket Breaker RJ45 Figure 8: Back view of DX3000L Communication Intelligent Slot P ort External Battery Socket C ooling Fan Fuse Output Socket Breaker Input Te rminal R J45 B lock Figure 9 : Back view of DX3000LXL ---15---...
- Page 18 614-03752-00 ---16---...
