Summary of Contents for PAG PAGlink PL16
- Page 1 PL16 & PL16+ CHARGERS V-MOUNT & GOLD MOUNT USER GUIDE U5115...
- Page 2 Disclaimer The information contained in this document is correct at the time of publication. PAG Ltd. reserves the right to change specifications or product details without notification. Changes to product details will be incorporated in the next version of the document. PAG updates documents on a regular basis.
-
Page 3: Table Of Contents
Contents Section Page Key Features Safety Information Specifications Thank you for choosing the PAG PL16 Charger. Please read the important safety information Operating Instructions and instructions before using your charger. Servicing Compliance Warranty... -
Page 4: Key Features

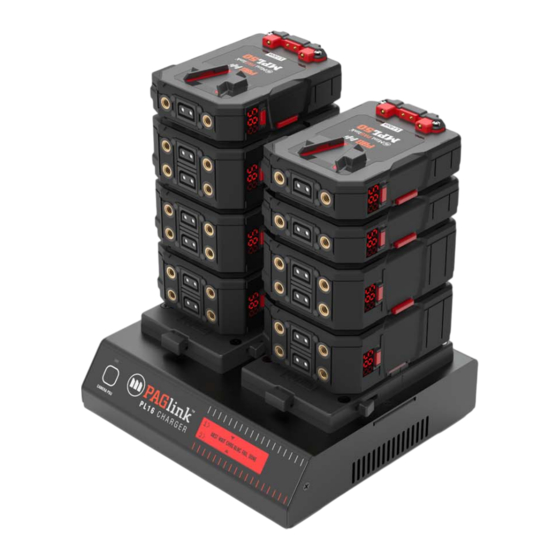

1. Key Features V-Mount Battery Connector Channel 1 V-Mount Battery Connector Channel 2 The charger shown is: Model 9707 PL16 Charger • 2 x V-Mount battery connectors • Camera Power Supply Other models feature the following variations: Model 9707A PL16 Charger •... -
Page 5: Safety Information
Incorrect treatment of the PL16 Charger could present a safety If the unit appears damaged, or does not function correctly, seek hazard. Please read these important safety and operating advice from an authorised PAG service centre (see ‘Servicing’) or instructions before using the charger. from support@paguk.com... -
Page 6: Specifications
Li-Ion Intelligent Parallel Charging program: maximum output 6A at 9711A PAGlink PL16+ Gold Mount 4 charging positions 16.8V (100W approx.). V-Mount Models only: PAG ACS Ni-MH sequential charge program, output 3A. Range of Batteries Charged: PAGlink Charging: Up to 8 PAGlink or 10 Mini PAGlink batteries can be charged on 9707 PL16 &... - Page 7 3. Specifications Self Test Program: 3.12 Overall Dimensions: The internal microcomputer constantly monitors the battery under charge, as well as the operation of the charger’s own functions, Model 9707 PL16 V-Mount: which will be shut down to a safe condition should any of the tests Width Length Depth...
- Page 8 3. Specifications 3.14 Typical Battery Charging Times: 3.15 Camera Power Supply (Models 9707 & 9707A only): The charge times given (hh:mm) are from fully-discharged to fully- Suitable for powering cameras that can accept a 16.8V input. charged. Charge times will be less if the batteries are only partially discharged, and will vary depending on the condition of the 3.16 Operation: The camera power supply function is operated by pressing and...
-
Page 9: Operating Instructions
4. Operating Instructions Before connecting a battery to the charger ensure that the battery PAGlink PL16 Chargers are fitted with an AC input socket conforming to CEE22 (IEC socket). AC supply connection to the is not in sleep mode by pressing the battery display button twice, charger should be made using the lead supplied with the so that the battery display illuminates. - Page 10 4.15 If the internal protection circuit of a PAG or Sony Li-Ion battery 4.12 The charger will continue to monitor the status of all charging should turn-off, for any reason, the battery display will not operate, and there will be no voltage at the battery terminals.
- Page 11 4. Operating Instructions 4.18 PL16 Chargers, Models 9707 & 9707A, feature a built-in Camera Power Supply that enables you to power your camera from an AC mains supply, using the charger. Connection to the camera can be made using an XLR4 male to female lead. The power supply is operated by holding in the button on the charger’s front panel for 1 second.
-
Page 12: Servicing
Consequently there are no user-serviceable parts United Kingdom and Rest of the World: inside. PAG Ltd. Epsom Downs Metro Centre, Units 9 & 10, Waterfield, Tadworth, Surrey KT20 5LR, UK Qualified electronics engineers who wish to gain access to T: +44 (0) 20 8543 3131, E: support@paguk.com... -
Page 13: Compliance
Restrictions of Hazardous Materials in Electronics: EU Directive 2011/65/EU EU Directive 2015/863 PAG PL16 chargers comply with the limits for Class B digital devices relevant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful... -
Page 14: Frequently Asked Questions
Turn-off the charger, leave it for a few minutes, and then turn it back on. If it repeats the message then please contact PAG support by email support@paguk.com or return the charger to a Will the batteries at the top of the stack be charged first? PAG authorised service centre. -
Page 15: Warranty
In the event of failure of a product covered by this warranty, PAG Limited will repair and calibrate equipment returned to an author- ised service facility within the period of the warranty, provided the warrantor’s examination discloses to its satisfaction the product...
