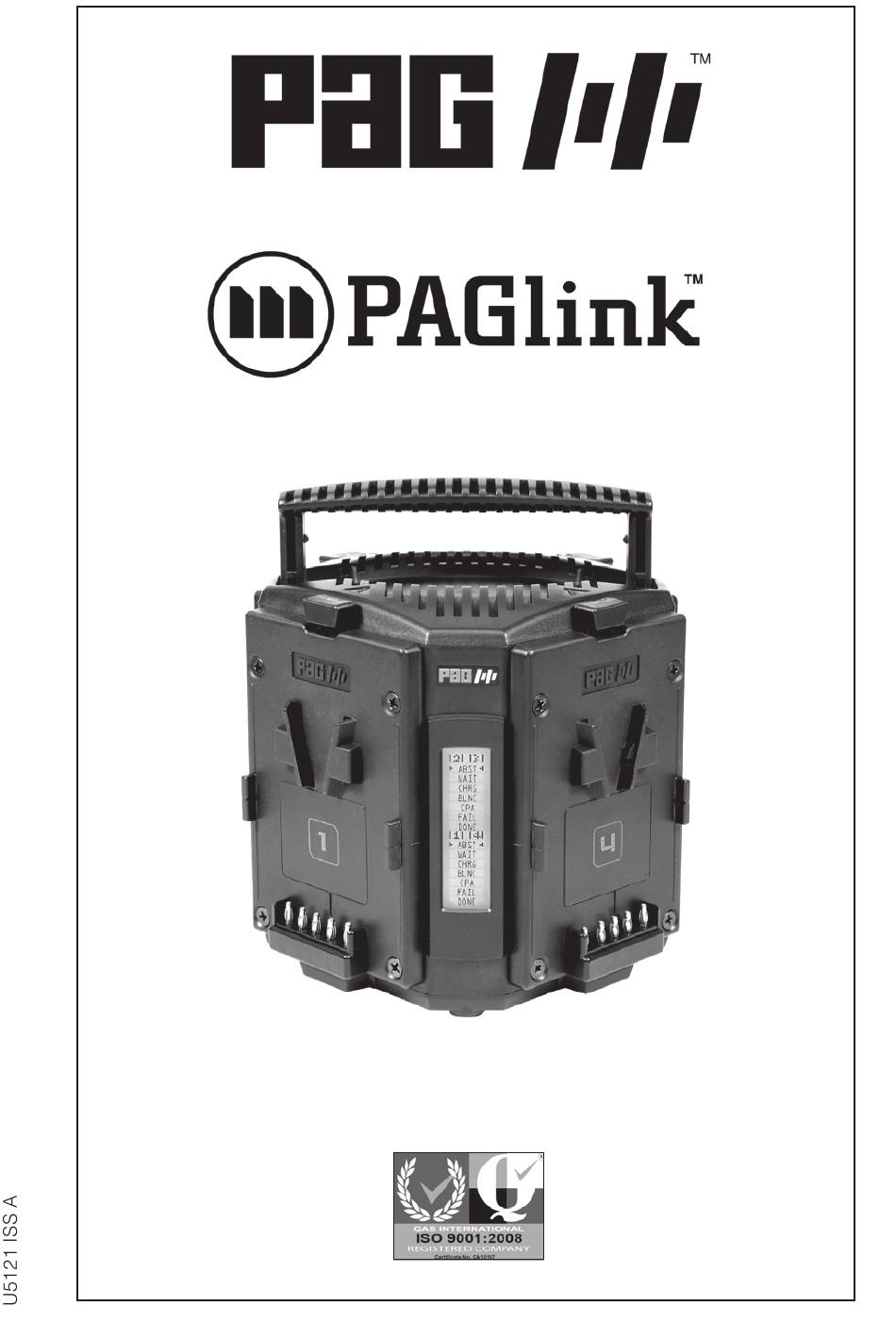

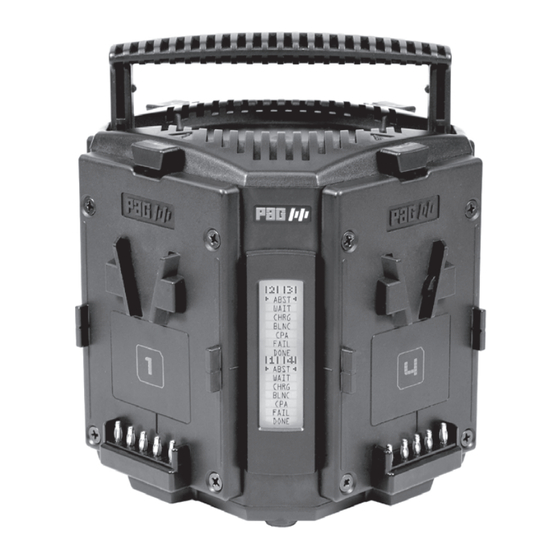

  • Page 1 C U B E C H A R G E R Instruction Manual...
  • Page 2 Disclaimer The information contained in this document is correct at the time of publication. PAG Ltd. reserves the right to change specifications or product details without notification. Changes to product details will be incorporated in the next version of the document.
  • Page 3: Table Of Contents

    C U B E C H A R G E R Instruction Manual CONTENTS SECTION PAGE SAFETY SPECIFICATION INSTALLATION OPERATING INSTRUCTIONS SERVICING & REPAIRS GUARANTEE...
  • Page 4: Safety

    Please follow all instructions and retain this manual for future reference. The PAGlink Cube Charger is not intended for any use other than the charging of the following camera batteries, by direct connection, as detailed below: •...
  • Page 5: Specification

    In this event you should seek advice from your nearest PAG Dealer, or direct from PAG Ltd., London, by telephoning +44 (0)20 8543 3131.
  • Page 6 PAGlink Charging: The PAGlink system allows up to eight batteries to be linked in one stack for charging. However, PAG recommends that no more than four linked batteries are connected to each charging position of the PAGlink Cube, allowing up to 16 batteries to be charged simultaneously;...
  • Page 7 2.13 Safety: Designed to comply with electrical safety standard BS EN 60065 and UL 1564. NOTE: UK AC power leads are fitted with a 1" fuse to BS1362 rated 5A as standard. 2.14 European Union Directives: Complies with the following EU Directives: •...
  • Page 8: Installation

    50-60 Hz. NOTE: the charger MUST NOT be operated from a vehicle 12V battery using the PAG Vehicle Battery-Power Converter, Model No. 9774 or 9775. PAG TECHNICAL SUPPORT: For further technical information, please contact PAG Support by email: support@paguk.com, by telephone +44 (0)20 8543 3131 or contact your...
  • Page 9 4.15 If the internal protection circuit of a PAG or Sony Li-Ion battery should turn-off, for any reason, the battery display will not operate, and there will be no voltage at the battery terminals. The PAGlink Cube incorporates a Recovery Charge program which will automatically turn the protection circuit back on again.
  • Page 10: Servicing & Repairs

    4.18 The PAG CPA Camera Power Adaptor is a separate unit that enables you to power your camera from an AC mains supply, using the Cube charger (see inside front cover). This unit can be connected to any channel on the Cube charger.
  • Page 11: Guarantee

    Should the charger re-enter the fail-safe shut down mode, more detailed investigation is required. Make a note of any error message and seek advice from your nearest PAG dealer or direct from PAG Ltd., London, by emailing support@paguk.com.
  • Page 12: Eu Declaration Of Conformity

    EN 50082 - 1 (IMMUNITY) PRODUCT SPECIFIC: EN 55022 - B EN 60555 - 2/3 IEC 801 - 2/3/4 EN 60335 - 1 EN 60335 - 2 - 29 Signed for and on behalf of PAG Ltd. Alan Lavender Chief Executive. Date: 25.7.12.
