PAG pagbelt Instruction Manual

Ni-cd battery belt
Hide thumbs

Advertisement

Quick Links

Pagbelt
Ni-Cd Battery Belt
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the pagbelt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PAG pagbelt

Summary of Contents for PAG pagbelt

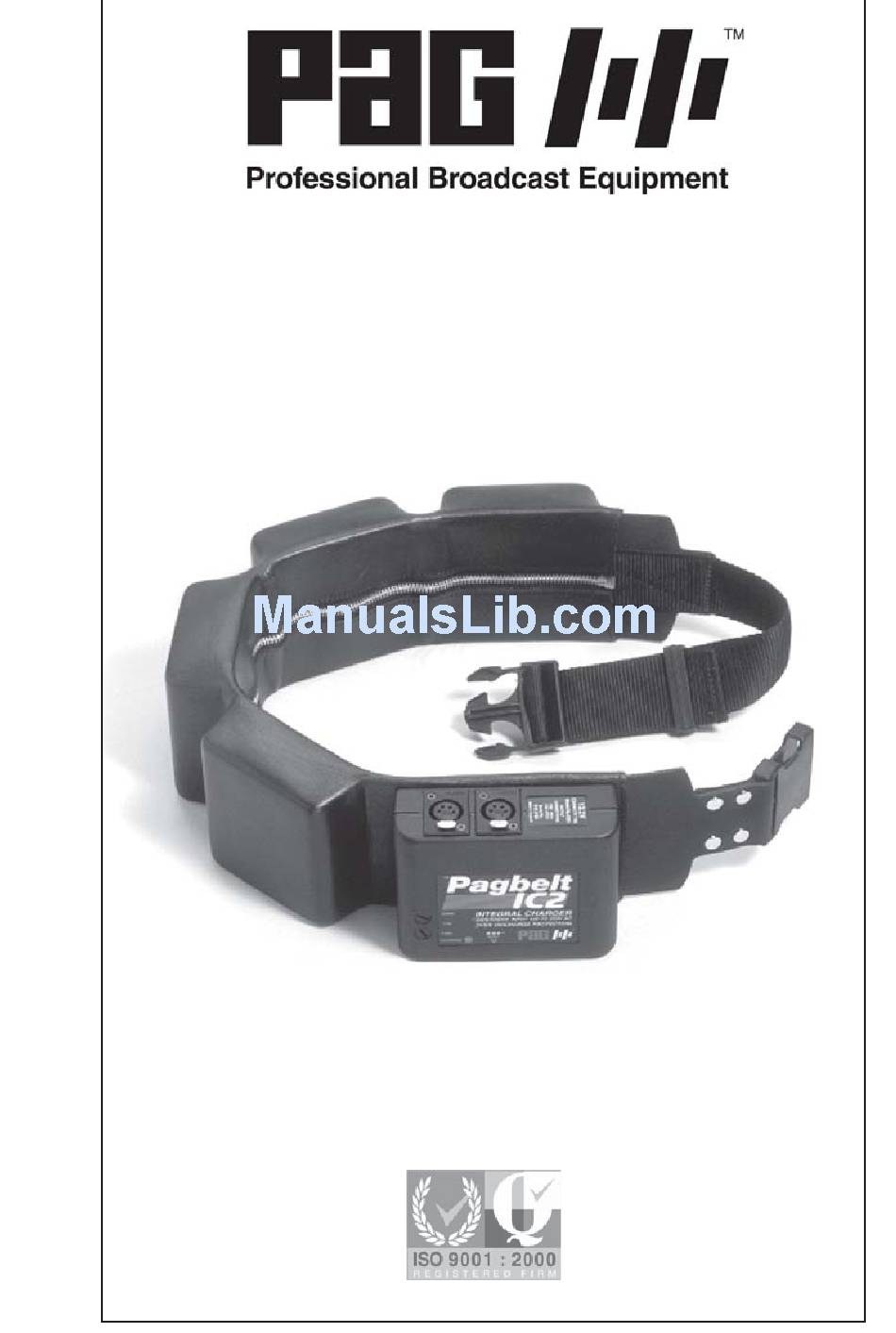

  • Page 1 Pagbelt Ni-Cd Battery Belt Instruction Manual...
  • Page 2 Pagbelt IC2 & S2 - General Arrangement: 1. Integral charger/cut-out pocket. 2. Deep moulded one piece leather case. 3. Twin output sockets. 4. Quick release buckle. 5. Shoulder harness attaching rings. 6. Charging/mains LED (IC2 version only). 7. Waist strap.

  • Page 3: Table Of Contents

    Pagbelt Ni-Cd Battery Belt Instruction Manual CONTENTS SECTION PAGE SPECIFICATION CARE AND MAINTENANCE INSTRUCTIONS FOR USE SAFETY WARRANTY...

  • Page 4: Specification

    Nominal voltage 1.2V per cell. Capacity: Capacities shown are as measured at the five hour rate. Over Discharge Protection (ODP): All models incorporate the PAG ODP circuit which will trip at the following voltages: Pagbelt Voltage: ODP Trip Voltage: 12.0V 8.5V - 9.5V...
  • Page 5 Pin 4 Positive (+) Pagbelt Construction: Battery pouches deep moulded from top-quality full chrome hide. Connection to the Pagbelt is made via a housing injection moulded from glass reinforced nylon. 1.10 Waist Strap: Waist strap incorporates quick release buckle and is secured to the belt carcass.

  • Page 6: Care And Maintenance

    1.16 Charger Output Voltage: 40V DC Maximum. 1.17 Output Current: 5Ah Models: 500mA. 7Ah Models 700mA. 10Ah Models 1000mA. 1.18 Charging Indicator: Indicator is lit when integral charger is operating. 1.19 Safety: Designed to comply with Electrical Safety Standard BS EN 60335 Part 2 Sec-tion 2.29 Class 2 (double insulated).

  • Page 7: Instructions For Use

    London factory and is therefore able to call upon full manufacturing and test facilities. Should your Pagbelt require servicing we recommend that you contact your PAG Dealer or the PAG Service Department to maintain the quality standard for which you originally chose your Pagbelt. SECTION 3 INSTRUCTIONS FOR USE OPERATION OF THE ODP CIRCUIT.
  • Page 8 The charger housing will become warm in use. To allow adequate cooling, do not place objects on or around the Pagbelt while it is being charged. Connect the integral charger to the supply using the mains lead provided.

  • Page 9: Safety

    For typical charging times and full operating instructions refer to the charger handbook. Pagbelt IC2 only: Do not connect the integral charger to the mains supply while the battery is being charged by means of an external charger.
  • Page 10 ACCIDENTAL SHORT CIRCUITING: Nickel-Cadmium cells can deliver power at very high rates. PAG battery belts are protected at the output connectors by a self-resetting over-current device, but severe mechanical abuse of a belt could result in damage to cells, and short circuit internal to the battery.

  • Page 11: Warranty

    In the event of failure of a product covered by this warranty, PAG Limited will repair and calibrate equipment returned to an authorised service facility within the period of the warranty, provided the warrantor’s examination...
  • Page 12 U4919 ISS C / OCT 03 PAG Ltd. T +44 (0)20 8543 3131 565 Kingston Road F +44 (0)20 8540 4116 Raynes Park E sales@paguk.com London SW20 8SA www.paguk.com...
