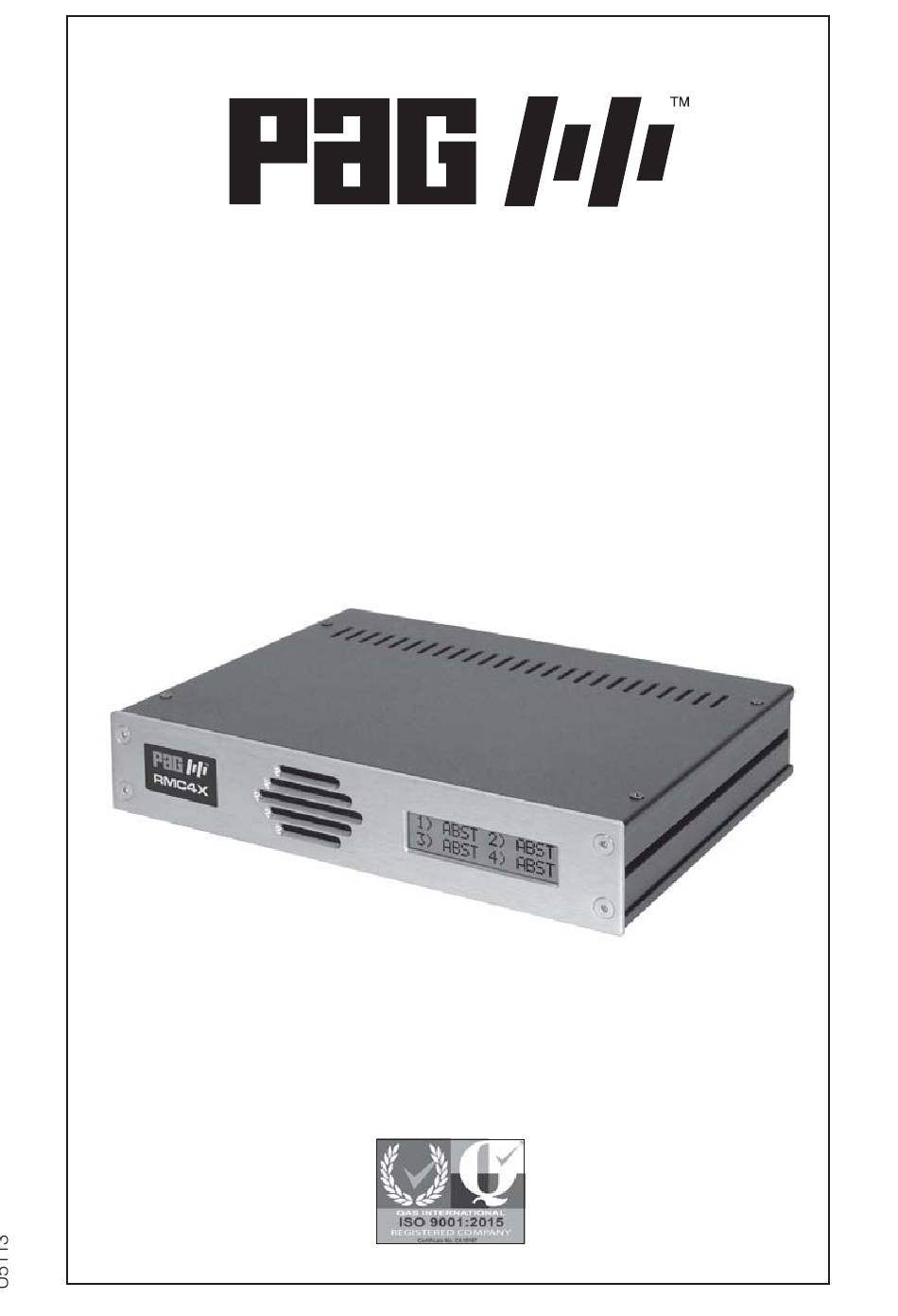

- Page 1 PAG RMC4X Rack-Mountable Intelligent Parallel Charger All Models Instruction Manual...
- Page 2 The information contained in this document is correct at the time of publication. PAG Ltd. reserves the right to change specifications or product details without notification. Changes to product details will be incorporated in the next version of the document. PAG updates documents on a regular basis. Trademarks All PAG registered trademarks are the property of PAG Ltd.
-
Page 3: Table Of Contents
PAG RMC4X Rack-Mountable Intelligent Parallel Charger All Models Instruction Manual CONTENTS SECTION PAGE SAFETY SPECIFICATION INSTALLATION OPERATING INSTRUCTIONS SERVICING & REPAIRS GUARANTEE... -
Page 4: Safety
A PDF version of this manual is available to download from the PAG website at www.paguk.com The PAG RMC4X charger is not intended for any use other than the charging of batteries as detailed in Section 2 'Specification'. -
Page 5: Specification
AC cable or plug is damaged, liquid has been spilled, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. In this event you should seek advice from your PAG reseller, or direct from PAG Ltd., London, by telephoning +44 (0)20 8543 3131 or by emailing support@paguk.com... - Page 6 Battery Connections: Model 9702R: 4 x PAGlok connectors. Model 9702VR: 4 x V-Mount connectors. Model 9702AR: 4 x Gold Mount connectors. Main Charge Program: > Li-Ion Intelligent Parallel Charging program. > Maximum output 6A at 16.8V (100W approx.). Recovery Charge Program: This special program will automatically recover a Li-Ion battery where the output has been shut down.
- Page 7 2.13 Operating Temperature Range: 0ºC to +40ºC (+32ºF to +104ºF). 2.15 Overall Dimensions (both models, excluding charging connectors): 44mm high x 210mm wide x 201mm long. 2.16 Weight (both models, excluding charging connectors): 1.8kg 2.17 Typical Battery Charging Times: Batteries: Charge Time: 1 x 96Wh Battery 3hrs 15mins...
-
Page 8: Installation
SECTION 3 INSTALLATION PAG RMC4X chargers are fitted with an AC input socket conforming to CEE22 (IEC socket). AC supply connection to the charger should be made using only the standard lead supplied with this equipment. PAG RMC4X chargers have been designed for use on AC mains supplies worldwide, and automatically accept supplies in the range 90V to 265V. - Page 9 4.12 The charger will not recognise the connection of a battery which has a voltage substantially outside of its range or one of unsuitable chemistry type. 4.13 If the internal protection circuit of a PAG or Sony Lithium-Ion battery should turn-off, for any reason, the battery display will not operate, and there will be no voltage at the battery terminals.
-
Page 10: Servicing & Repairs
2.12). USE ONLY A FUSE OF THE CORRECT RATING. If the replacement of the fuse fails to correct the above symptoms, do not attempt further fuse replacement. It is likely that a fault has developed. Seek advice from PAG Ltd. by telephoning +44 (0)20 8543 3131, or email: support@paguk.com. -
Page 11: Guarantee
In the event of failure of a product covered by this guarantee, PAG Limited will repair and calibrate equipment returned to an authorised service facility within the period of the guarantee, provided the guarantor’s examination discloses to... - Page 12 EN 50082 - 1 (IMMUNITY) PRODUCT SPECIFIC: EN 55022 - B EN 60555 - 2/3 IEC 801 - 2/3/4 EN 60335 - 1 EN 60335 - 2 - 29 Signed for and on behalf of PAG Ltd. Alan Lavender Chief Executive. Date: 20.11.19.
