Page 1: Instruction Manual

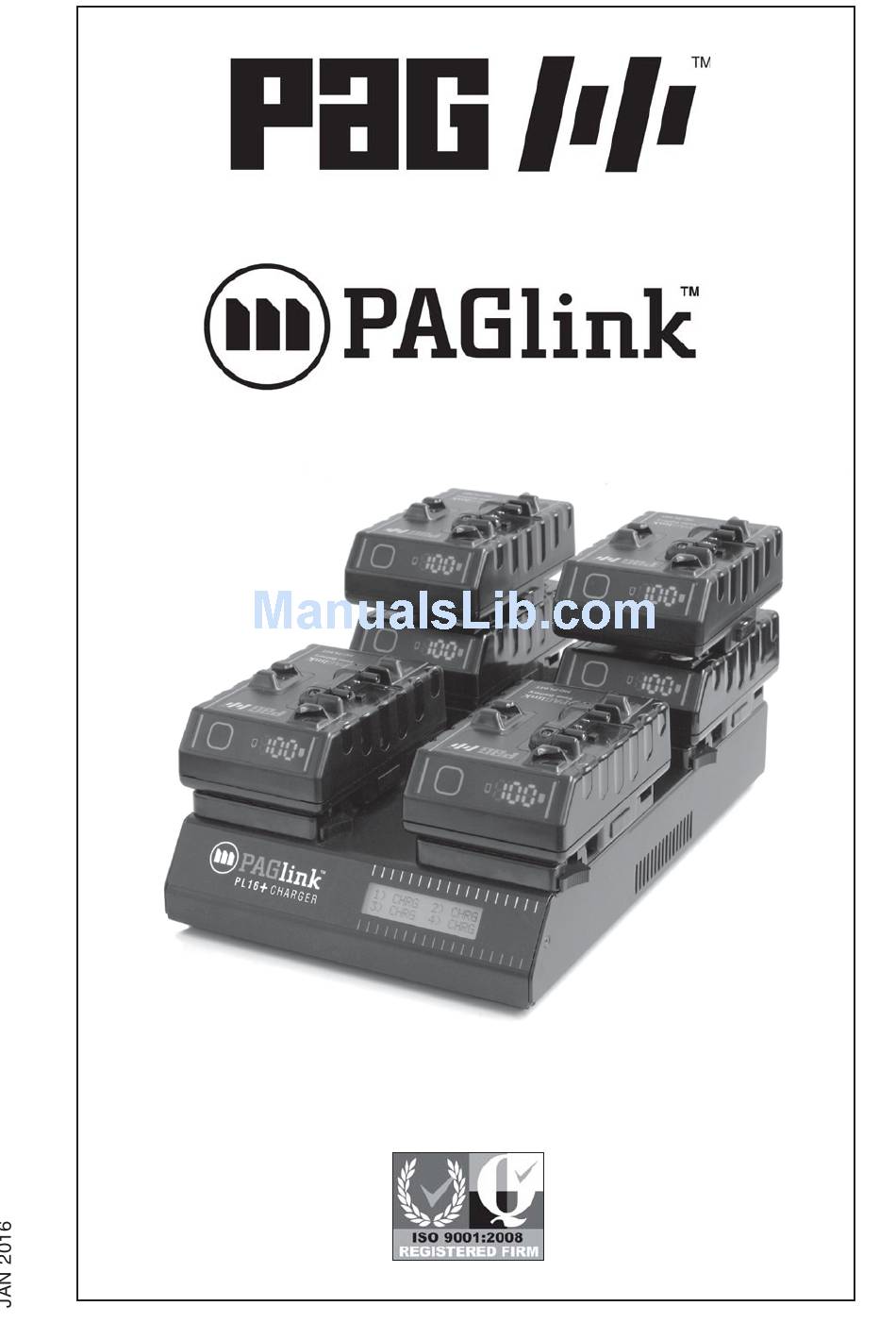

PL16 C H A R G E R Instruction Manual... -
Page 3: Table Of Contents
PL16 C H A R G E R Instruction Manual CONTENTS SECTION PAGE SAFETY SPECIFICATION INSTALLATION OPERATING INSTRUCTIONS SERVICING & REPAIRS GUARANTEE... -
Page 4: Safety
In this event you should seek advice from your nearest PAG Dealer, or direct from PAG Ltd., London, by telephoning +44 (0)20 8543 3131. -
Page 5: Specification
(up to 8 batteries can be linked for charging): • PAGlink PL96e Model 9303 • PAGlink PL96T Model 9304 It is also suitable for parallel charging the following non-linking PAG V-Mount Li-Ion batteries: • PAG L96e Model 9310 •... - Page 6 PAGlink Charging: Up to eight PAGlink batteries per channel may be charged. Batteries can be in any state of charge. The most-discharged batteries will be given a higher charge priority. Fully-charged batteries will stop accepting charge auto- matically and independently of other batteries. Batteries may be left on the charger when fully-charged and will be automatically maintained in a ready-for-use condition.
-
Page 7: Installation
100V to 265V. AC mains supply frequency must be in the range 50-60 Hz. For technical information contact PAG on +44 (0)20 8543 3131 or your nearest PAG Authorised Service Centre. Visit the PAG Web Site at... -
Page 8: Operating Instructions
Li-Ion batteries are charged simultaneously, using PAG’s Intelligent Parallel Charging program (see ‘Typical Battery Charging Times’ Section 2.16). NOTE: Older generation PAG Li-Ion batteries will be charged sequentially. Up to 8 PAGlink batteries per channel may be charged. Batteries can be in any state-of-charge. - Page 9 As Li-Ion batteries near the end of charge, the charge current is reduced. This is perfectly normal for the ‘constant voltage’ phase of the charge cycle. Batteries may be removed, and others connected at any time, without affecting the operation of the charger. 4.10 The charger will continue to monitor the status of all charging channels.
-
Page 10: Servicing & Repairs
Should the charger re-enter the fail-safe shutdown mode, more detailed investigation is required. Make a note of the error message and seek advice from your nearest PAG dealer or direct from PAG Ltd., London, by telephoning +44 (0)20 8543 3131. -
Page 11: Guarantee
In the event of failure of a product covered by this guarantee, PAG Limited will repair and calibrate equipment returned to an authorised service facility within the period of the guarantee, provided the guarantor’s examination discloses to... -
Page 12: Eu Declaration Of Conformity
EN 50082 - 1 (IMMUNITY) PRODUCT SPECIFIC: EN 55022 - B EN 60555 - 2/3 IEC 801 - 2/3/4 EN 60335 - 1 EN 60335 - 2 - 29 Signed for and on behalf of PAG Ltd. Alan Lavender Chief Executive Date: 20.10.15...
