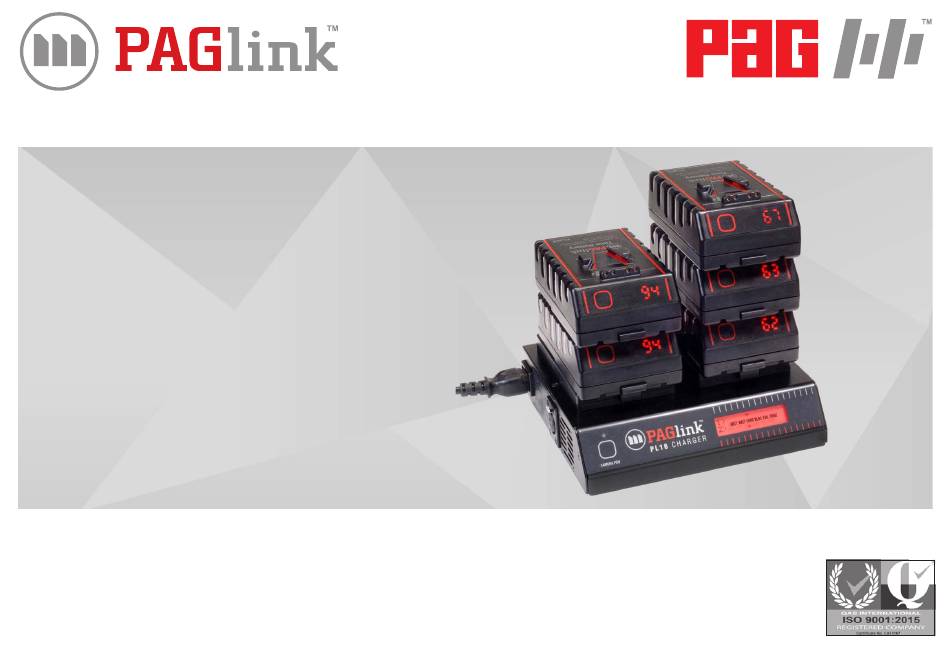

- Page 1 PL16 & PL16+ Chargers User Guide U5115...
- Page 2 Disclaimer The information contained in this document is correct at the time of publication. PAG Ltd. reserves the right to change specifications or product details without notification. Changes to product details will be incorporated in the next version of the document.
-
Page 3: Table Of Contents
Contents Section Page Key Features Safety Information Thank you for choosing the PAGlink PL16 Charger. Specifications Please read the important safety information and Operating Instructions instructions before using your charger. Servicing Guarantee... -
Page 4: Key Features
1. Key Features V-Mount Battery Connector Channel 1 V-Mount Battery Connector Channel 2 The charger shown is: Model 9707 PL16 Charger • 2 x V-Mount battery connectors • Camera Power Supply Other models feature the following variations: Model 9707A PL16 Charger •... -
Page 5: Safety Information
In these circumstances, seek advice connection to the unit should be made using only the standard lead supplied with this equipment. from your nearest authorised PAG Service Centre, or direct from PAG UK, by telephoning +44 (0)20 8543 3131, or emailing support@paguk.com Protect the power cord from being walked on or pinched, particularly at plugs. - Page 6 • Sequential charging, individually: PAG L95 Model 9360, PAG L110 Model 9302V & PAG ZL-50 Model Recovery Charge Program: 9315V A battery that will not accept charge, and is indicated as ABST on the charger display, can be given a Recovery Charge, initiated by two •...
-
Page 7: Specifications
3. Specifications Charge will be applied automatically in the case of PL16+ chargers UL1564. NOTE: UK AC power leads are fitted with a 1" fuse to BS1362 rated 5A. (Models 9711 & 9711A). Additionally, all chargers will recover automati- cally a Li-Ion battery where the output has been shut down. 3.12 European Union Directives: Complies with the following EU Directives: Self Test Program:... - Page 8 3. Specifications 3.15 Typical Battery Charging Times: process. Customers can remove the battery at 90% charged to reduce The charge times given are for 96Wh PAGlink batteries, from fully- the overall charge time significantly. discharged to fully-charged. Charge times will be less if the batteries are only partially discharged, and will vary depending on the condition 3.16 Camera Power Supply (Models 9707 &...
-
Page 9: Operating Instructions
4. Operating Instructions When batteries are connected, charging will commence automatically PAGlink PL16 Chargers are fitted with an AC input socket conforming and the charger display will indicate ‘CHRG’ on the appropriate to CEE22 (IEC socket). AC supply connection to the charger should be made using only the standard lead supplied with this equipment. - Page 10 This is perfectly normal for the ‘constant voltage’ phase of the charge cycle. chemistry type. 4.15 If the internal protection circuit of a PAG or Sony Li-Ion battery 4.11 Batteries may be removed, and others connected at any time, without affecting the operation of the charger.
-
Page 11: Servicing
Make a note CORRECT RATING. If the replacement of the fuse fails to correct the of the error message and seek advice from your nearest authorsied PAG above symptoms, do not attempt further fuse replacement, it is likely Service Centre. -
Page 12: Guarantee
In the event of failure of a product covered by this guarantee, PAG Limited will repair and calibrate equipment returned to an authorised service facility within the period of the guarantee, provided the guarantor’s examination discloses to its satisfaction the product was...
