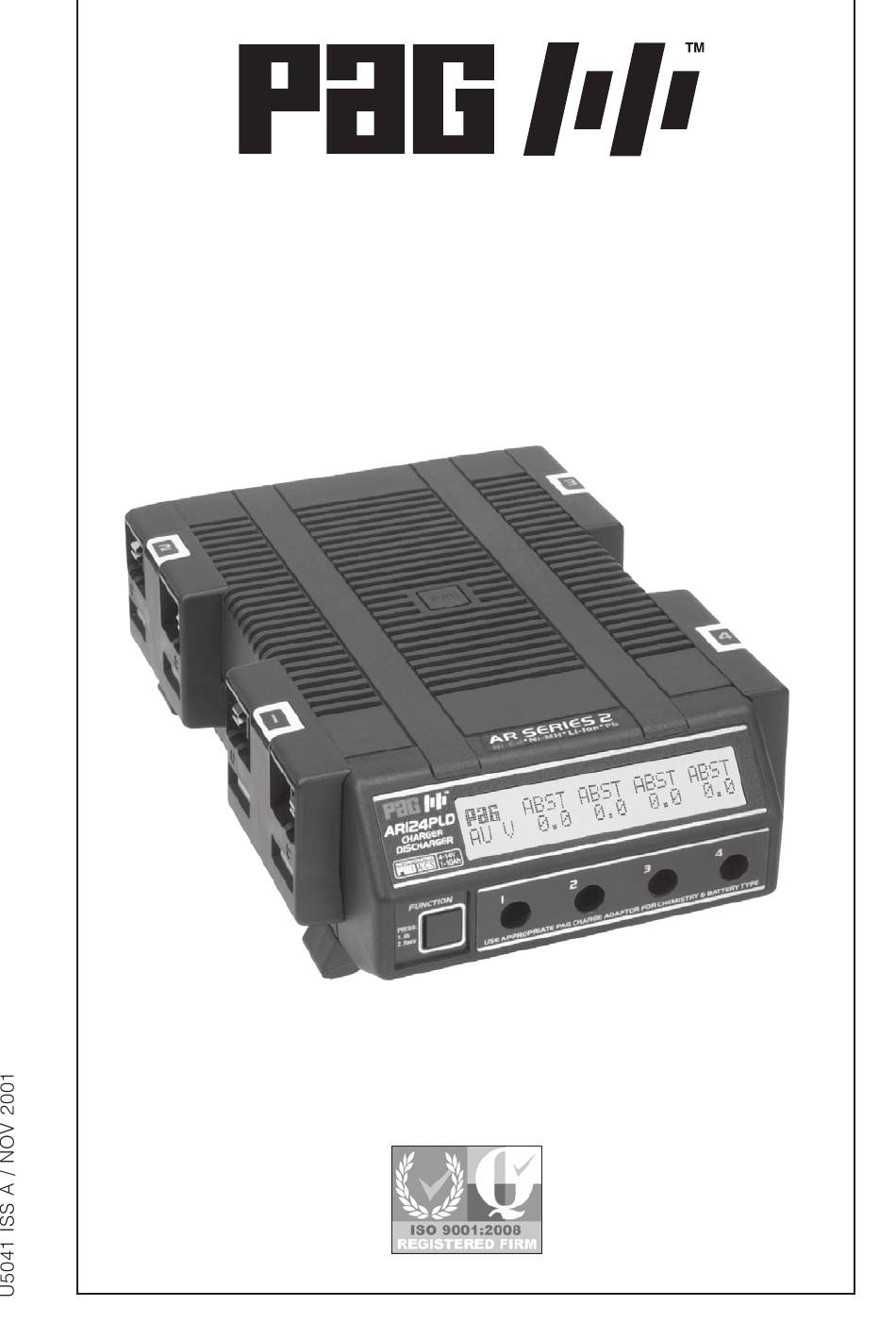

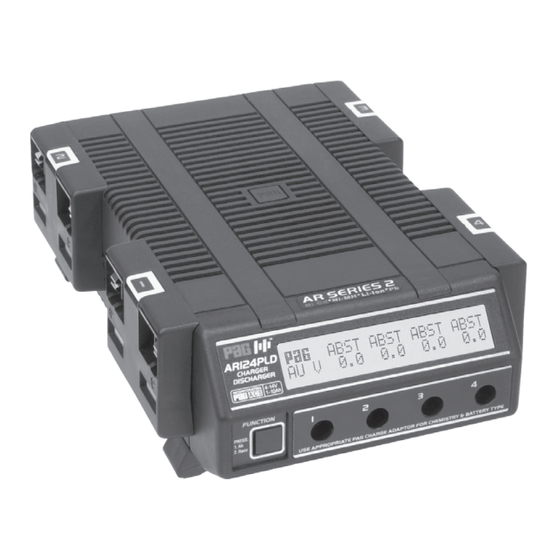

- Page 1 AR SERIES 2 All-Chemistry Charging Systems Instruction Manual...
- Page 2 *Advanced Charging System ◗ Back in the early 1980s PAG’s Research & Development team ensures greater flexibility, reliability conducted a full study into the and full control over the battery behaviour patterns of Nickel-Cadmium charging process. batteries used in the television industry.
-
Page 3: Table Of Contents
AR SERIES 2 All-Chemistry Charging Systems Instruction Manual CONTENTS SECTION PAGE SAFETY RULES SPECIFICATION INSTALLATION OPERATING INSTRUCTIONS SERVICING & REPAIRS GUARANTEE... -
Page 4: Safety Rules
In this event you should seek advice from your nearest PAG Dealer, or direct from PAG Ltd., London, by telephoning +44 (0)20 8543 3131, or emailing... -
Page 5: Specification
4.8V and 14.4V, and nominal capacities of between 1Ah and 10Ah. • PAG Lithium-Ion batteries. Battery Connections: PAGlok: Patented professional PAG locking connector compatible with all PAGlok batteries. Incorporates self-cleaning military-type beryllium-copper leaf contacts. Polarised connector suitable for Ni-Cd, Ni-MH and PAG Li-Ion NP-type batteries. - Page 6 This special program conditions the battery for a period of one hour. The charger will then automatically enter the Main Charge program, which will run until the battery is fully charged. This program also recovers PAG Li-Ion batteries which have been over-discharged to the point where the internal safety protection circuit has tripped.
- Page 7 Charging times will be less if the battery is already partially charged. NOTE: PAG intelligent batteries communicate with the charger, and automatically optimise the charging output (independently of the manual selection) to enhance performance and safety. The above charging times...
-
Page 8: Installation
BEFORE connecting another set of batteries. Connect the charger to a suitable supply using the standard lead. The LCD screen will illuminate and briefly display the PAG logo and charger model before entering normal operating mode. With no batteries connected, all channels will indicate ‘absent’. - Page 9 Recovery charge in progress WAITING/°C WAIT/°C Alternate Waiting - battery too hot or cold CHARGING/NiMH CHRG/NiMH Alternate Charging of PAG NMH in progress CHARGING/Liion CHRG/Liion Alternate Charging of PAG Li-Ion in progress (or other Li-Ion via PAG Intelligent Charge Adaptor).
- Page 10 SCREEN ILLUMINATION The screen will automatically illuminate: • At power-up. • If the Function button is operated. • If a battery is connected or disconnected. The illumination will remain on for a period of forty seconds following the last activity, and will then be automatically extinguished. The illumination can be set to OFF mode.
- Page 11 NOTE: PAG intelligent batteries automatically over-ride the Auto Mode or Manual selection, and control their own charge regime. Hold the Function button in while connecting the charger to the supply. The screen will display the instruction “HOLD FOR SETUP V x.xxLi”.
- Page 12 A ‘waiting’ indicator will be displayed on any other channel that has a battery connected. The balancing process is indicated by ‘balance’. At the end of the program the screen will display a ‘ready’ indication. The charge current loaded into the battery can be viewed at any time during charge by pressing the Function button once.
- Page 13 ‘faulty’ before the supply failure, and which had not been removed, are recorder, and the charger will not attempt to charge these batteries (note: this does not apply to PAG Li-Ion batteries). The charger will then fully charge the remaining batteries.
-
Page 14: Servicing & Repairs
Should the charger re-enter the fail-safe shutdown mode, more detailed investigation is required. Make a note of the error message, and seek advice from your nearest PAG dealer or direct from PAG Ltd., London, by telephoning +44 (0)20 8543 3131, or emailing service@paguk.com. -
Page 15: Guarantee
In the event of failure of a product covered by this guarantee, PAG Limited will repair and calibrate equipment returned to an authorised service facility within the period of the warranty, provided the guarantor’s examination discloses to its satisfaction the product was defective. - Page 16 PRODUCT SPECIFIC: EN 55022 - B EN 60555 - 2/3 IEC 801 - 2/3/4 EN 60335 - 1 EN 60335 - 2 - 29 Signed for and on behalf of PAG Ltd. Alan Lavender Date: 26.05.96 Chief Executive U4937 ISS C...
