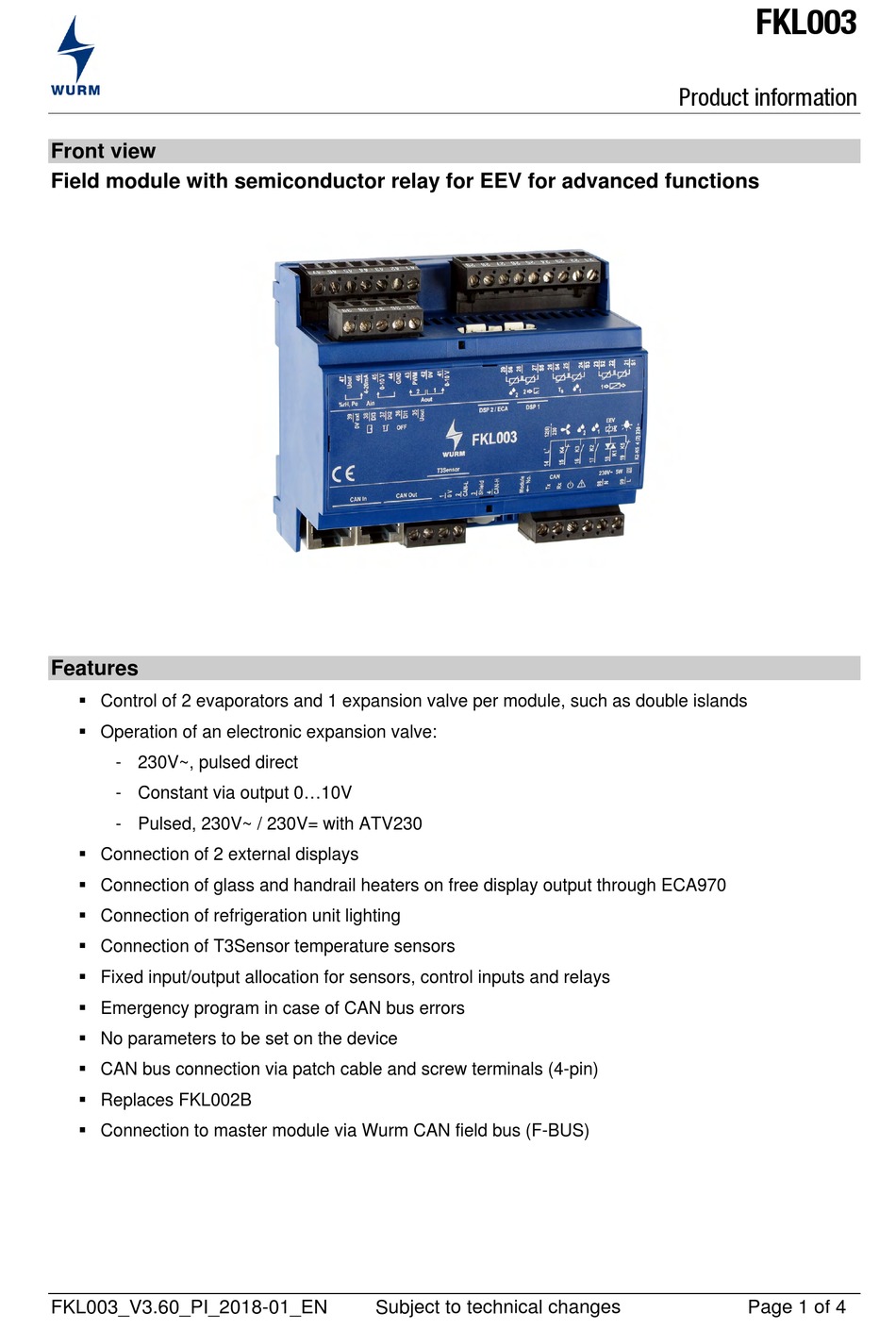

WURM FKL003 Product Information

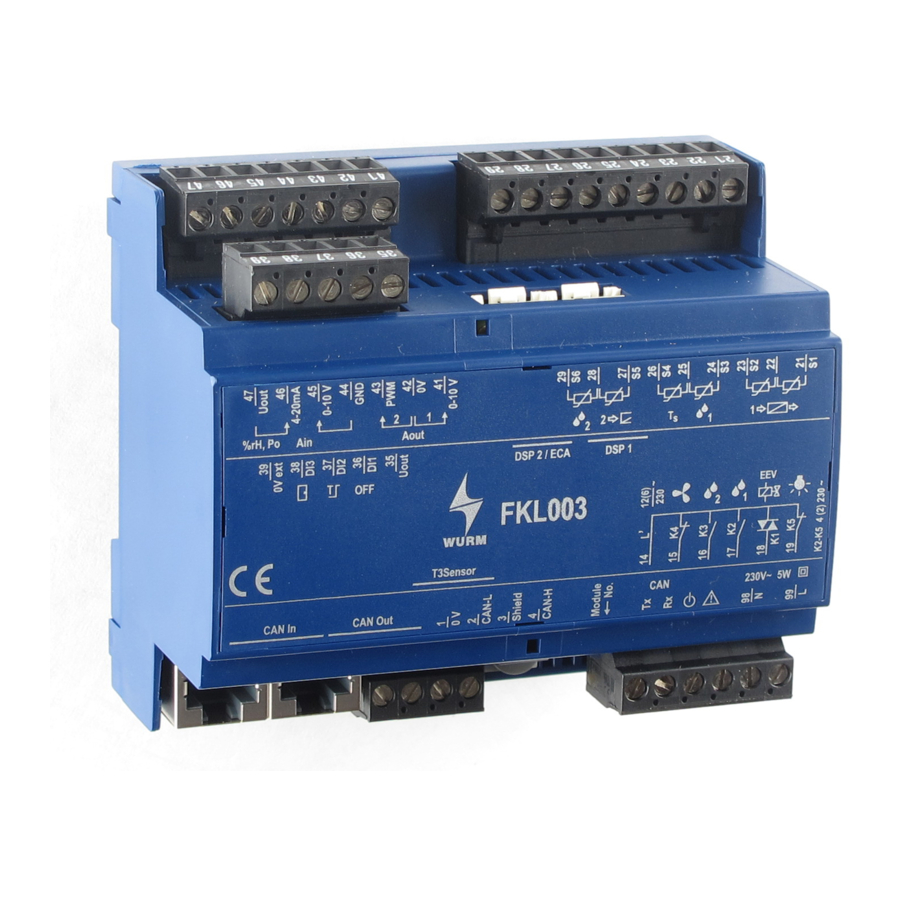

Front view
Field module with semiconductor relay for EEV for advanced functions
Features
 Control of 2 evaporators and 1 expansion valve per module, such as double islands
 Operation of an electronic expansion valve:
- 230V~, pulsed direct
- Constant via output 0...10V
- Pulsed, 230V~ / 230V= with ATV230
 Connection of 2 external displays
 Connection of glass and handrail heaters on free display output through ECA970
 Connection of refrigeration unit lighting
 Connection of T3Sensor temperature sensors
 Fixed input/output allocation for sensors, control inputs and relays
 Emergency program in case of CAN bus errors
 No parameters to be set on the device
 CAN bus connection via patch cable and screw terminals (4-pin)
 Replaces FKL002B
 Connection to master module via Wurm CAN field bus (F-BUS)
FKL003_V3.60_PI_2018-01_EN Subject to technical changes
FKL003
Product information
Page 1 of 4
