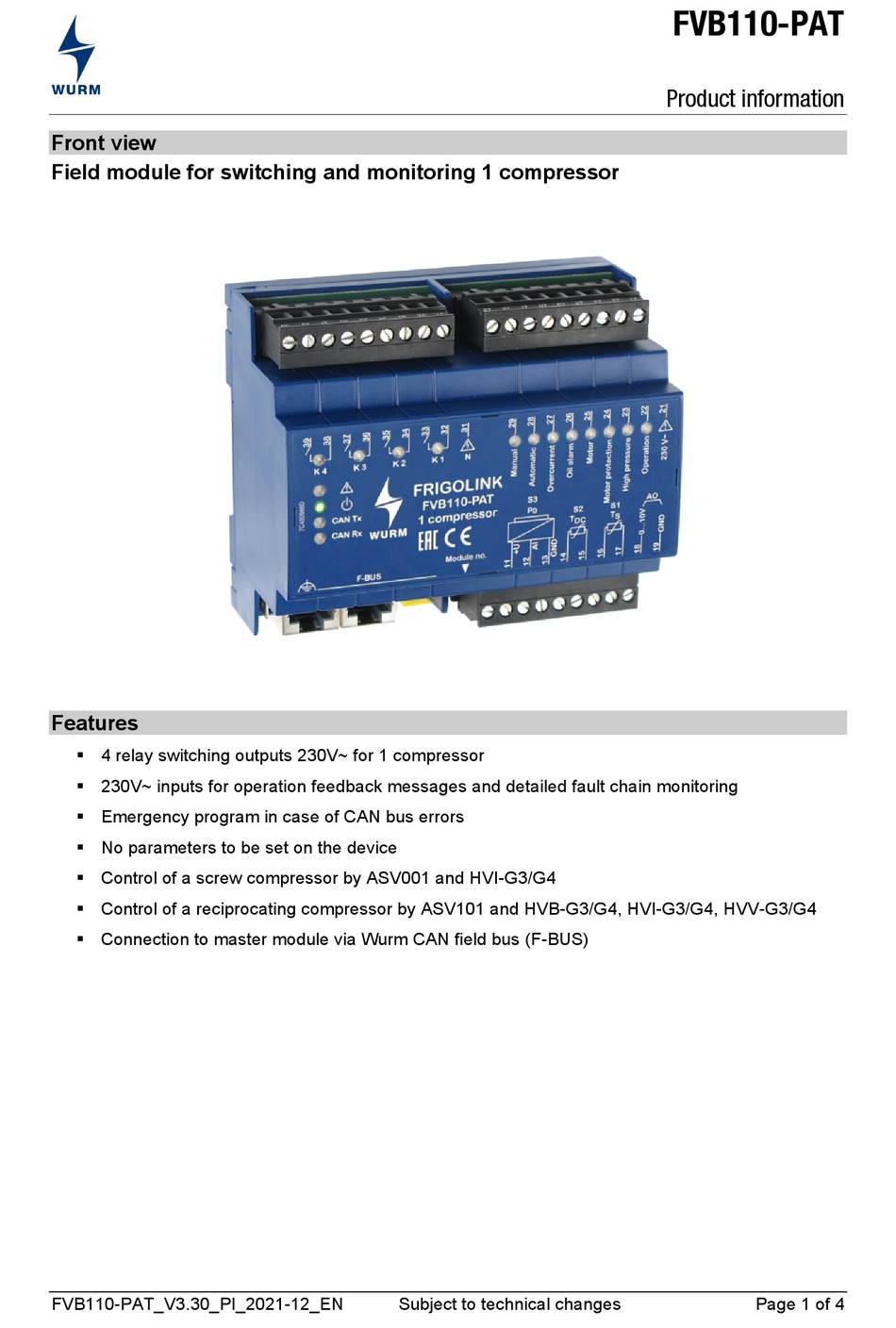

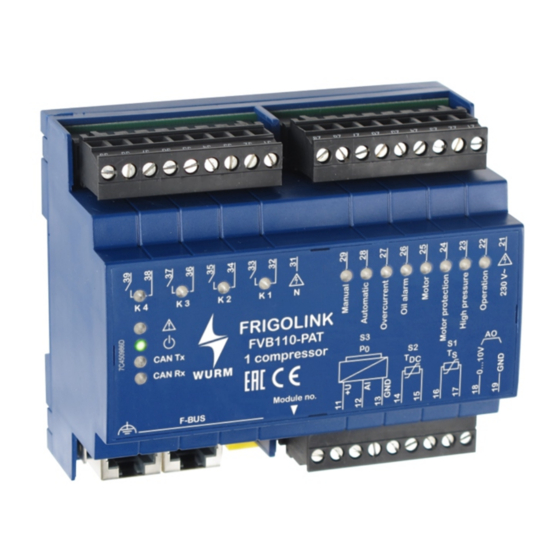

Front view

Field module for switching and monitoring 1 compressor

 4 relay switching outputs 230V~ for 1 compressor

 230V~ inputs for operation feedback messages and detailed fault chain monitoring

 Emergency program in case of CAN bus errors

 No parameters to be set on the device

 Control of a screw compressor by ASV001 and HVI-G3/G4

 Control of a reciprocating compressor by ASV101 and HVB-G3/G4, HVI-G3/G4, HVV-G3/G4

 Connection to master module via Wurm CAN field bus (F-BUS)

FVB110-PAT_V3.30_PI_2021-12_EN

Subject to technical changes

FVB110-PAT

Product information

Page 1 of 4

Table of Contents

Do you have a question about the FVB110-PAT and is the answer not in the manual?

Page 1  No parameters to be set on the device  Control of a screw compressor by ASV001 and HVI-G3/G4  Control of a reciprocating compressor by ASV101 and HVB-G3/G4, HVI-G3/G4, HVV-G3/G4  Connection to master module via Wurm CAN field bus (F-BUS) FVB110-PAT_V3.30_PI_2021-12_EN Subject to technical changes...
Page 2 Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
Page 3 FVB110-PAT Product information Circuit diagram NOTES The CAN bus shield must be connected at only one (!) CAN bus end by means of the  6.3mm connecting lug with PE. Further information on the CAN bus can be found in the FRIGOLINK bus system ...
Page 4 FVB110-PAT Product information Fault inputs that are not used In order to obtain correct fault information, fault inputs that are not used must be jumpered with the fault signal that is connected upstream within the alarm routing. The input "Operation" (terminal 22) is used for measuring the operating hours.
