WURM FGT003-A Product Information

Field module for building technology solutions
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual

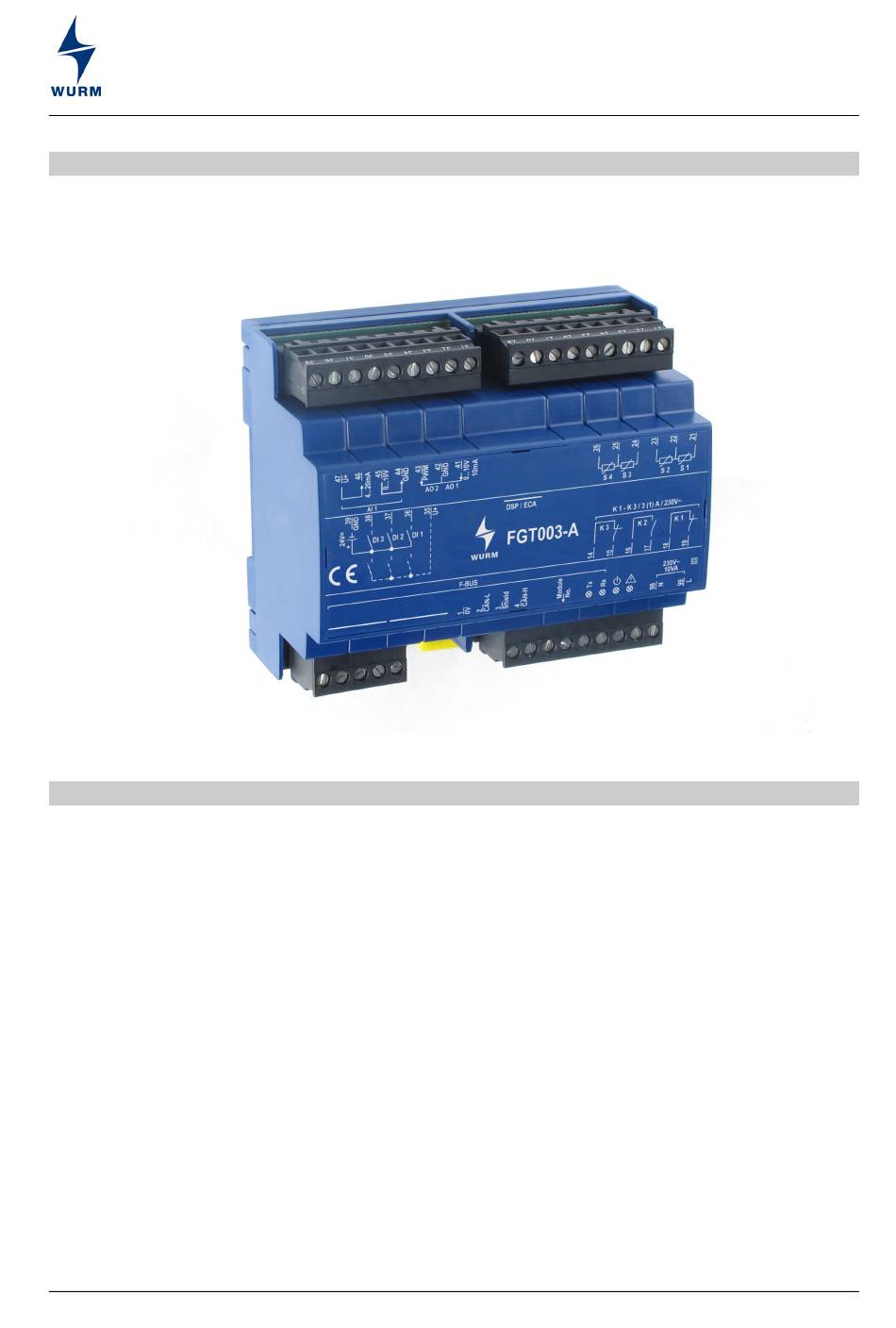

Front view
Field module for building technology solutions
Features
 Inputs and outputs
-
Constant output 0...10V
-
PWM output 0...10V
-
Analogue input 0...10V / 4...20mA
-
3 x digital inputs 24V=
-
4 x temperature sensor (TRK277, DGF980)
-
3 x relay (2 x NC contact, 1 x NO contact)
 Connection of an external display
 Emergency program in case of bus errors
 No parameters to be set on the device
 Bus connection via patch cable and screw terminals (4-pin)
 Connection to master module via Wurm CAN field bus (F-bus)
 Supplies an external load with max. 3VA
FGT003-A_V4.3.0_PI_2022-03_EN
Subject to technical changes
FGT003-A
Product information
Page 1 of 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the FGT003-A and is the answer not in the manual?

Questions and answers

Related Manuals for WURM FGT003-A

Summary of Contents for WURM FGT003-A

  • Page 1  Emergency program in case of bus errors  No parameters to be set on the device  Bus connection via patch cable and screw terminals (4-pin)  Connection to master module via Wurm CAN field bus (F-bus)  Supplies an external load with max. 3VA FGT003-A_V4.3.0_PI_2022-03_EN...
  • Page 2 Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold. Wurm GmbH & Co. KG Elektronische Systeme accepts no liability in case of improper use or use for other than the intended purpose.
  • Page 3 1. Place the module with the upper guide edge on the top-hat rail. 2. Press it gently downward until it engages with the fastening safety catch on the top- hat rail. Fig. 3: FGT003-A top-hat rail installation FGT003-A_V4.3.0_PI_2022-03_EN Subject to technical changes Page 3 of 4...
  • Page 4 Product information Set address To correctly register the FGT003-A on the bus, you must assign it a unique address using the rotary switch. This is a requirement for functioning communication with the master module. Addresses 0-F can be set with the rotary switch. As such, 16 field modules can be connected to the bus.
