7 . Buzzer setting function
Instruction: Short press the LOCK key to turn on or off the buzzer.
8 . RS4851D setting function
Instruction: Long press the VSET to activate the RS4851D setting function, turn the knob until the required ID occurs, and long
press the VSET to save and exit.
9 . Voltage and current slope setting function
Instruction: Long press the knob to activate the voltage and current slope setting function, turn the knob to increase or decrease
the value, select the voltage and current slope through VSET and I SET, and long press the knob to exit the setting function,
with unit /100μs.
10 . Dynamic output function
10 .1 Dynamic setting function
Instruction: Step 1: Long press the ON/OFF to activate the dynamic setting function. At this time, M1-MS key indicators are all
off and M1-M5 show digits 1-5. Set the dynamic steps with M1-M5 digit combination.
Step 2: When M 1-MS indicators are all off. Step 0 starts. At this time, the voltage is displayed as a dynamic cycle number and
the current is displayed a dynamic step. Change the value through the knob, and switch to the different item through VSET
and ISET.
Step 3: Press M1. At this time, Step 1 starts when M1 indicator is lit. Set the value of the first step. Change the voltage I current
value through knob and switch to the different item through VSET and I SET, press the knob to switch to the required voltage
slope and time. Change the value through the knob, and switch to the different item through VSET and I SET.
Step 4: Press M1 to close M1 and press M2 to set the value required in Step 2, with the setting method same with that used in
Step 2. The M1-M5 key combination is required when the Step number is greater than 5. For example, M5+M1 is used in the
Step 6. M5+M4+M3 is used in Step 12.
Step 5: Long press ON/OFF after setting to save the set value and exit the setting function.
10 .2 Dynamic Setting Recall
Instruction: Short press MS and turn the knob to increase, so that the dynamic function can be recalled. Turn on ON/OFF for
output.
11 . Voltage and current priority function
Instruction: Long press I SET to activate the voltage and current priority setting function. Turn the knob to set 0 as voltage prior-
ity and set 1 as current priority, and long press ISET to save and exit.
12 . Communication with PC
Please refer to the communication protocol file.

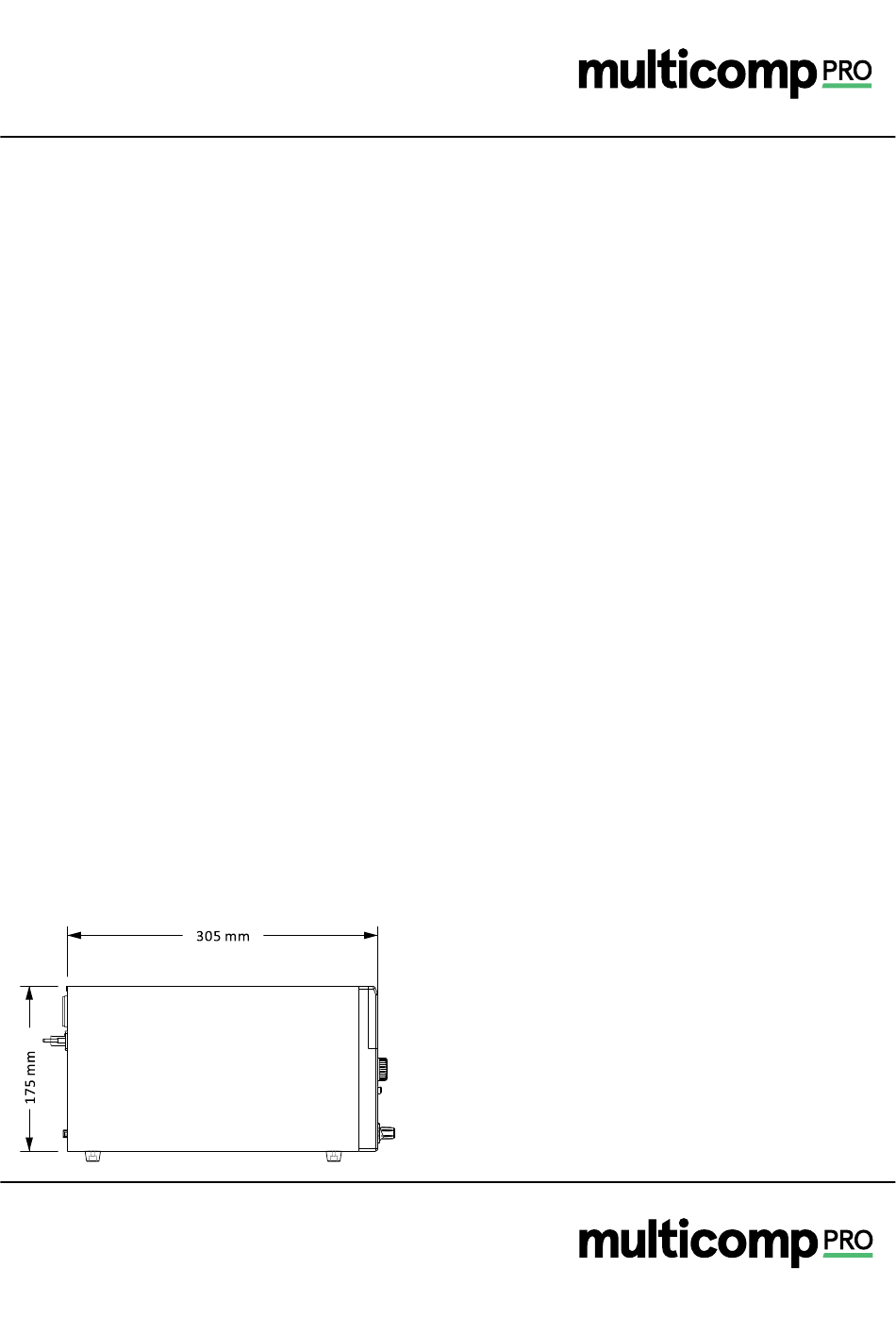

The External Size of the Power Supply
