The lower computer responds Function Slave Address Data length Data CRCL CRCH Instructions Code Address:0000H-BIT0 (N+7)/8 -8bit 0001H-BIT1..set an address Return the commands of upper FF00H -16bit computer 0001H -16bit Function: return the data value 2N - Bbit 2N data to be read Data: a data integer of 16-bit floating-point Starting and...
Temperature -10-70°C FUSE Model 110V / 120V 220V / 230V MP711005 / MP711008 / MP711009 T5A/250V (20mm × 5mm) T3A/ 250V (20mm × 5mm) MP711006 / MP711007 T4A/ 250V (20mm × 5mm) T2A/250V (20mm × 5mm) • Avoid the risk of fire by only replacing the fuse with the specified type and rating.

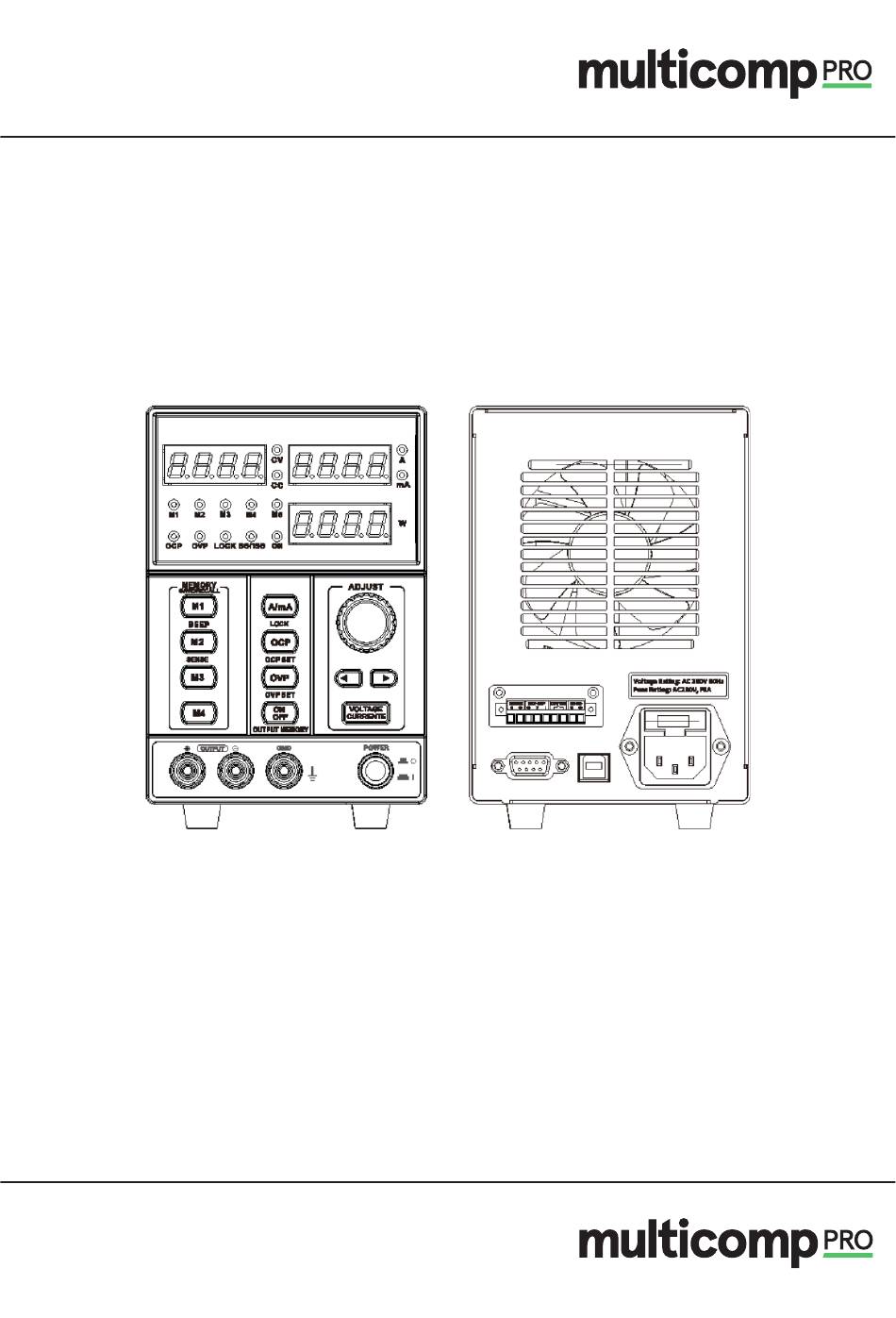

Front Panel Overview The upper computer sends instructions Slave Function Set an Data length/setting CRCL CRCH Instructions Address Code address content Function: read machine status Address:000H-CC/CV 0001H-ON/OFF indicates the output 0004H- beep 0000H N-16bit 0005H-LOCK indicates the lock 0006H-OVP 0007H-OCP QO0AH-SENSE external compensation O00CH-ON/OFF external switch Function: set machine status...
Page 5
Function: set voltage and current values of the N-16bit device The length (How many Address: 0004H-0005H set voltage 010H 0004H is 2N bytes addresses 0006H-0007H set current -8bit to write) 0008H-0009H set OVP 6 Output 0=OFF, 1=ON 7 OVP 0=OVP OFF, 1=OVP ON 10.
Page 6
Display Condition Indication When this light is ON, it means that the output of the power supply is constant current. When this light is ON, it means the power output is constant voltage. A, this light is always ON, indicating that the unit of the current measurement value is A. mA, this light is always ON to indicate that the unit of the current measurement is mA.
Rear Panel and Interfaces of Machine and Control Terminal Operation Connect the AC power cord and select the corresponding AC voltage according to the back label, the connect the AC power cord to the socket on the back panel. press the power switch to turn the pwer on. The display initialises, showing the model of the machine and the setting level,which is recalled from the last use.
Page 8
Remote Control Syntax V4 Co mmand format: VSET<X>:<NR2> 1. VSET: Command header 2. X: output channel 3. Separator 4. NR2: parameter Command Details: 1. ISET<X>:<NR2> Description: Sets the output current. Example: ISET1:2.225 Sets the CH1 output current to 2.225A 2. ISET<X>? Description: Returns the output current setting.
Accuracy and linearity: ±0.5% of rated output current+5mA. Size and weight Model Dimensions Weight MP711005 / MP711006 / MP711007 / MP711008 / MP711009 262mm × 110mm × 160mm 4.3kg Beep On/Off • By default, the beep sound is enabled. • To turn off the beep, press the key for one seconds.
Output Set Panel Operation • Connect the load to the front pore, • Voltage or current adjustment selective button, press for the first time, and then the voltage setting value will blink. At this time, you can adjust the voltage setting value by rotating the adjustment knob. Then press the Voltage/Current button again to make the current setting value bicker, and then to adjust the current setting value through rotating the knob.
Function Descriptions of Serial Number 1. External switch control — turn the knob to change the setting, and ON parameter indicates enabling the external output switch while OFF indicates turning off the external control switch. 2. Connection terminal compensation setting — turn the knob to change the parameter setting, and ON parameter means turning on the output terminal compensation while OFF means turning off the output terminal compensation.
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
