multicomp pro MP710256 US User Manual page 5

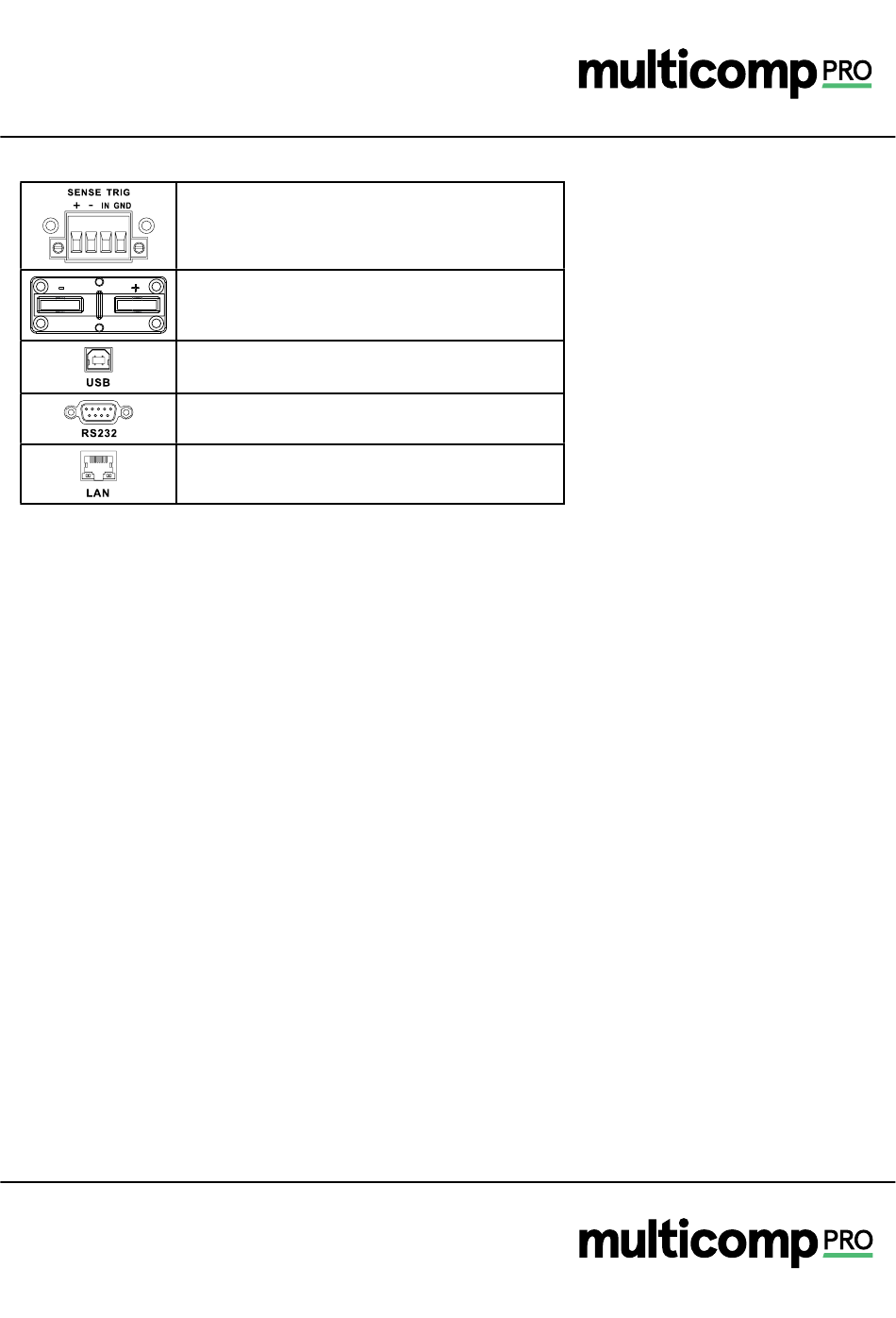

SENSE: Remote Monitoring Port
TRIG: trigger port
Output terminal, max output current 30A
USB communication port
RS232 communication port
Operating Instruction
1 . M1-MS quick recall/ storage function
1 .1 M1-M5 quick recall function
Instruction: Short press M1-M5 keys to quickly recall the contents stored in 1-5.
1 .2 M1-M5 quick storage function
Instruction: Adjust the stored voltage and current value and long press theM key to store the current value in the memory
of the selected M key.
2 . OVP function
2 .1 Set the OVP value
Instruction: Short press OVP to activate the OVP value setting function, adjust the OVP value to be set through the knob
and the VSET key, and short press the OVP to save and exit.
2.2 Turn on I off OVP function
Instruction: When the OVP is at the OFF state, short press the OVP key and then short press the ON/OFF key to enable
this function. When the OVP is at the ON state, short press the OVP key and then short press the ON/OFF key to disen-
able this function.
3 . OCP function
3 .1 Set the OCP value
Instruction: Short press the OCP to activate the OCP value setting function, adjust the OCP value to be set through the
knob and the ISET key, and short press the OCP to save and exit.
3.2 Turn on I off OCP function
Instruction: When the OCP is at the OFF state, short press the OCP key and then short press the ON/OFF key to en-
able this function. When the OCP is at the ON state, short press the OCP key and then short press the ON/OFF key to
disenable this function.
4 . External trigger function
Instruction: Long press the OVP key until there is a decimal point shown in the right corner of the last digital code of the
voltage display digital tube, meaning that the external trigger function is activated. At this time, the power output can be
turned on by shorting two rear interfaces of TRIG.
6 . Key lock function
Instruction: Long press the LOCK key that can be locked when the LOCK lamp is lit, and repeat this action to unlock the key.
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
sg.element14.com/b/multicomp-pro
Page <5> 26/07/24 V1.0
