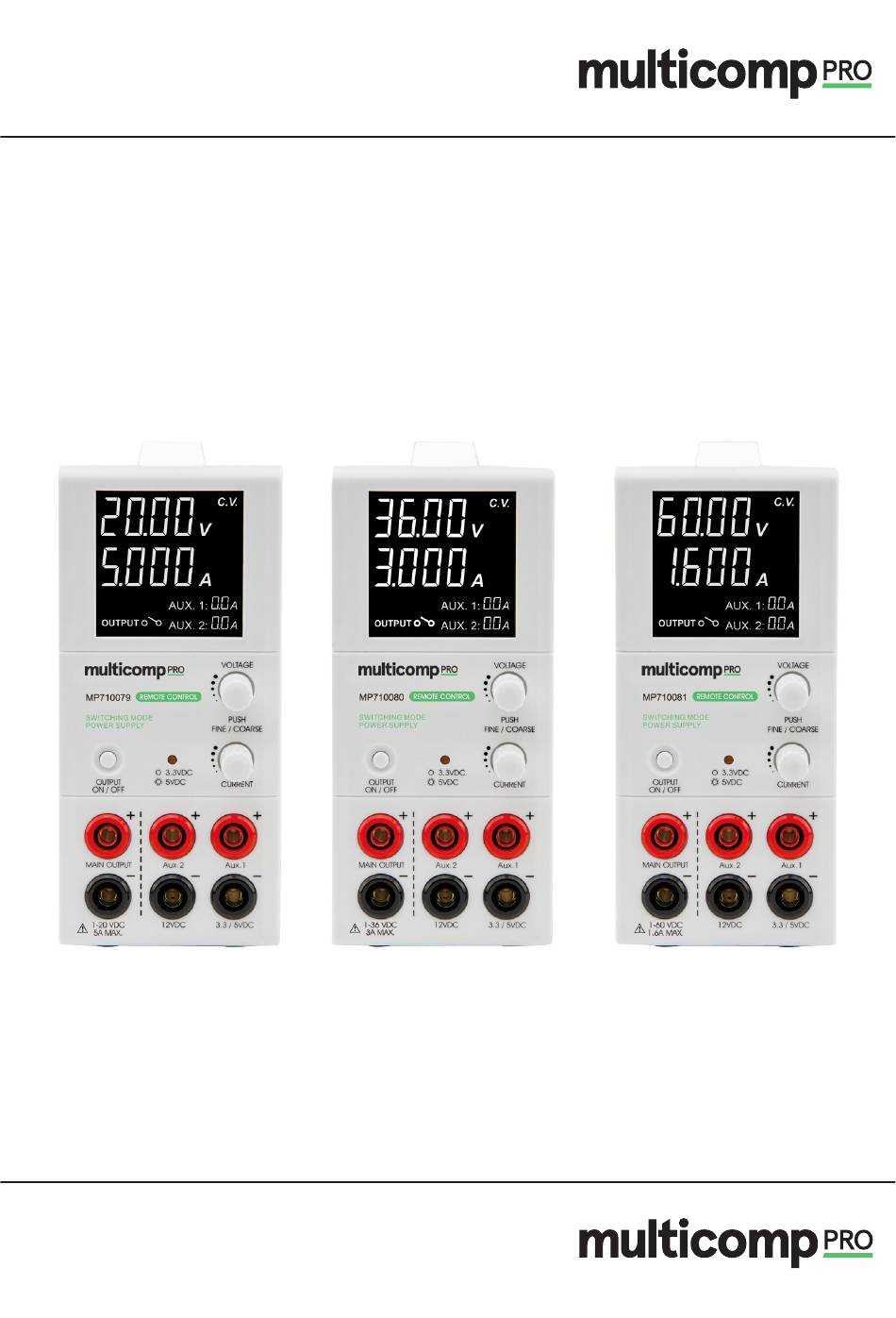

User Manual
Switching Mode Power Supply with
USB Remote Control
MP710079
MP710080
MP710081
MP710079 US
MP710080 US
MP710081 US
Part Number: MP710079; MP710080; MP710081;
MP710079 US; MP710080 US; MP710081 US
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
sg.element14.com/b/multicomp-pro
Page <1>
14/06/22
V1.0
Advertisement
Table of Contents
Related Manuals for multicomp pro MP710079
Summary of Contents for multicomp pro MP710079
- Page 1 User Manual Switching Mode Power Supply with USB Remote Control MP710079 MP710080 MP710081 MP710079 US MP710080 US MP710081 US Part Number: MP710079; MP710080; MP710081; MP710079 US; MP710080 US; MP710081 US Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <1> 14/06/22 V1.0...
-
Page 2: Controls And Indicators

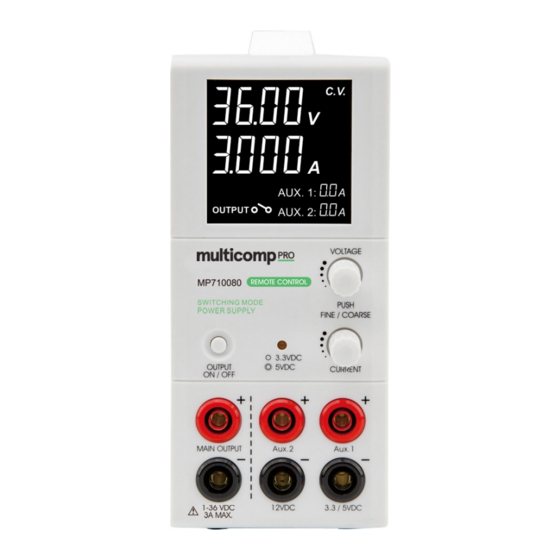

Introduction This series of 100W Switching Mode Power Supplies with Current Limiting Control is designed with the objectives of high accuracy, compactness and easy portability. Rotary encoder tuning with MCU are used for voltage and current control. 4 digit display LCD of voltage and current for high precision. This power supply is ideal for trouble shooting circuit boards or devices which require two or three different input voltages such as 3V or 5V, 12V and 1-36V. - Page 3 7. Output On/Off push button - For Main output: Quick push this button to turn the Main output ON/OFF - For Main output & Aux outputs: Push and hold this button for 3 seconds to turn the Main and Aux outputs OFF, quick push this button again to turn them ON 8.
- Page 4 7. Turn on the output terminal again and check if display shows (CV). 8. If display shows (CC), either your preset current limiting value is too low or your load requires more voltage and current. You need to re-access the voltage and current requirement of your load and increase the voltage or current accordingly until (CV) appears.
-
Page 5: Specifications
For the detail usage of driver and PC software. Specifications MP710079 MP710080 MP710081 Part Number MP710079 US MP710080 US MP710081 US Output Voltage Range 1V DC to 20V DC 1V DC to 36V DC 1V DC to 60V DC Output Current Range 0.25A to 5A... - Page 6 MP710079 MP710080 MP710081 Part Number MP710079 US MP710080 US MP710081 US Current Regulation Load from 10% to 90% Variation 50mA Line from 90 to 264V AC Variation 20mA Ripple & Noise (peak to peak) ≤50mA Switching Operation Frequency 50kHz to 150kHz Aux output 1 Fixed 3.3 /5V DC.
-
Page 7: Operation Environmental Condition
Operation Environmental Condition 10-80% R.H. Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50% relative humidity at 40°C. Altitude up to 2000m Installation category: CAT 2 Pollution degree: 2 Mains supply voltage fluctuation up to ±10% of the normal voltage Command Set Command code &... - Page 8 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
