Summary of Contents for multicomp pro MP711002

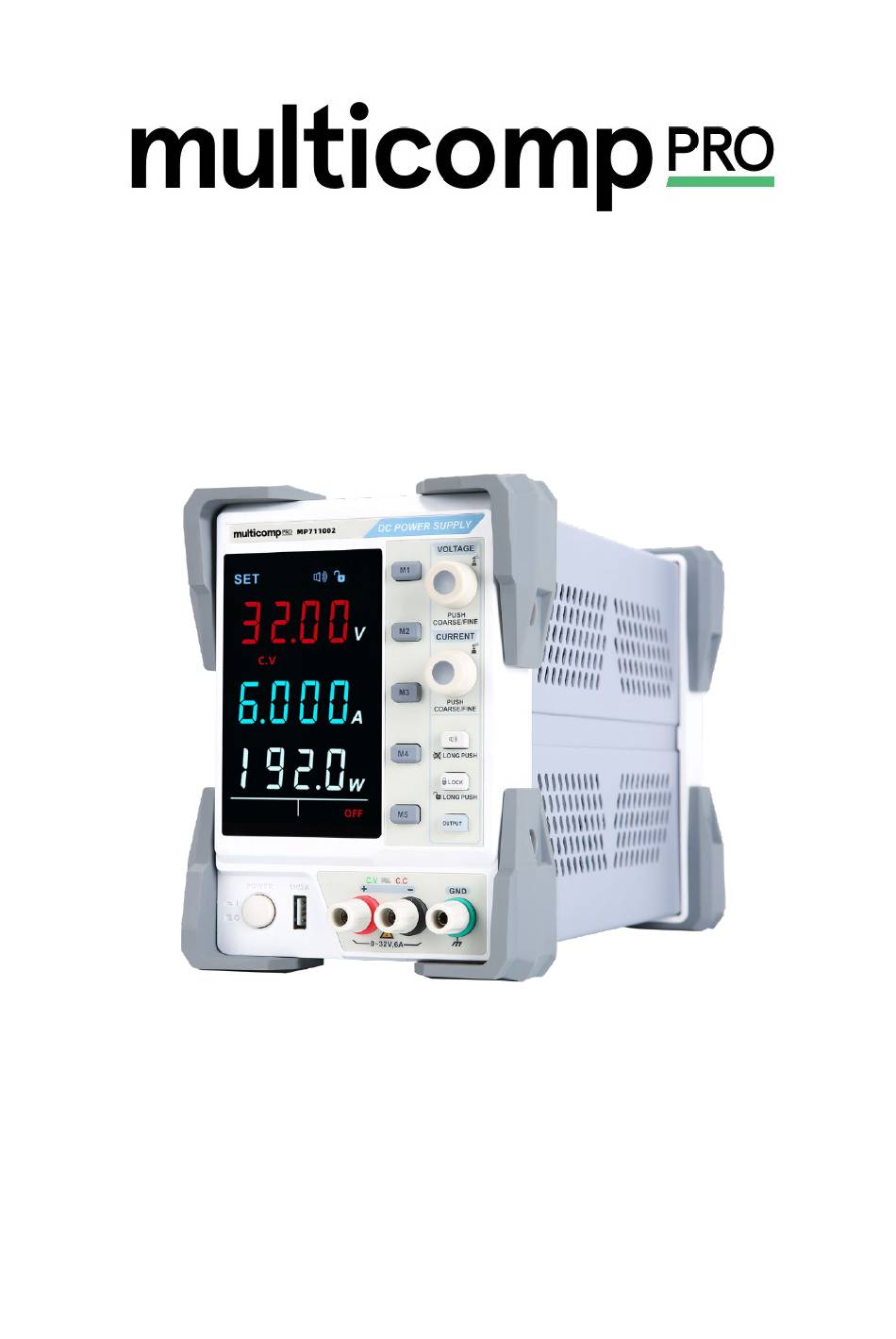

- Page 1 MP711002 Program Control DC Power Supply User Manual...
- Page 2 Fuse Type Corresponding fuse type for the model: Model 100V/120V 220V/230V MP711002 T6.3AL/250V(20X5mm) T3.15AL/250V(20X5mm) Make sure to use the correct fuse type before starting up To prevent fires, only replace with fuses that meet the model and rating value ...
- Page 3 Power Supply AC input voltage includes 100V/120V/220V/230V±10%, 50/60Hz. You can select different input voltages through the "AC SELECTOR" on the rear panel according to actual needs, please disconnect the power connection before switching the input voltage. Ensure this is set correctly before connecting to the mains supply.
- Page 4 CH1output voltage adjustment knob M1-M5 data storage button CH1 output current adjustment knob Buzzer switch Keypad lock OUTPUT button Channel CV/CC indicator (green-CV, red-CC) Green channel binding post (ground) Black channel binding post (negative) 10. Red channel binding post (positive) 11.
- Page 5 Main Index Parameters Test conditions: Turn on the device for 30 minutes at temperature 25℃±5℃ Technical Index Output Voltage 0-32V Output Current 0-6A Power Supply Regulation Constant Voltage <0.01%+3mV Constant Current <0.1%+3mA Load Regulation <0.01%+3mV (rated current≤6A) Constant Voltage <0.01%+5mV (rated current>6A) Constant Current <0.1%+10mA Resolution...
- Page 6 Function Introduction 1. Voltage/Current Setting and Output a. Press VOLTAGE knob, the cursor will flash on the CH1 voltage position, then continuously press the knob to move the cursor and rotate it to adjust the voltage value. b. Press CURRENT knob, the cursor will flash on the CH1 current position, then continuously press the knob to move the cursor and rotate it to adjust the current value.
- Page 7 Long press the LOCK button (>3s), the button light is off and the keypads are unlocked. 10. Remote Interface Control MP711002 power supply supports the communication between RS232 interface and the computer base on SCPI communication instruction, please refer to the programming manual...
- Page 8 RS232 Interface Pinout Definition 11. Accessories Charging line……………………………..1 USB communication cable ………………1 Power output cable ………………………1 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical &...
