Setting method
① If an incorrect key is pressed or incorrect information is displayed during setting, power
must be turned off and the procedure started again.
② It is recommended that the settings are changed without supply pressure. The product
operates immediately maximum and minimum pressures are set and the S-key is pressed.
③ It is recommended that the minimum pressure is output when air is supplied to the inlet,
even if the input signal has not been entered.
④ Output pressure from this product and state of operation are changed by changing of each
setting and function. Each setting and function should be operated by trained and
experienced operator.

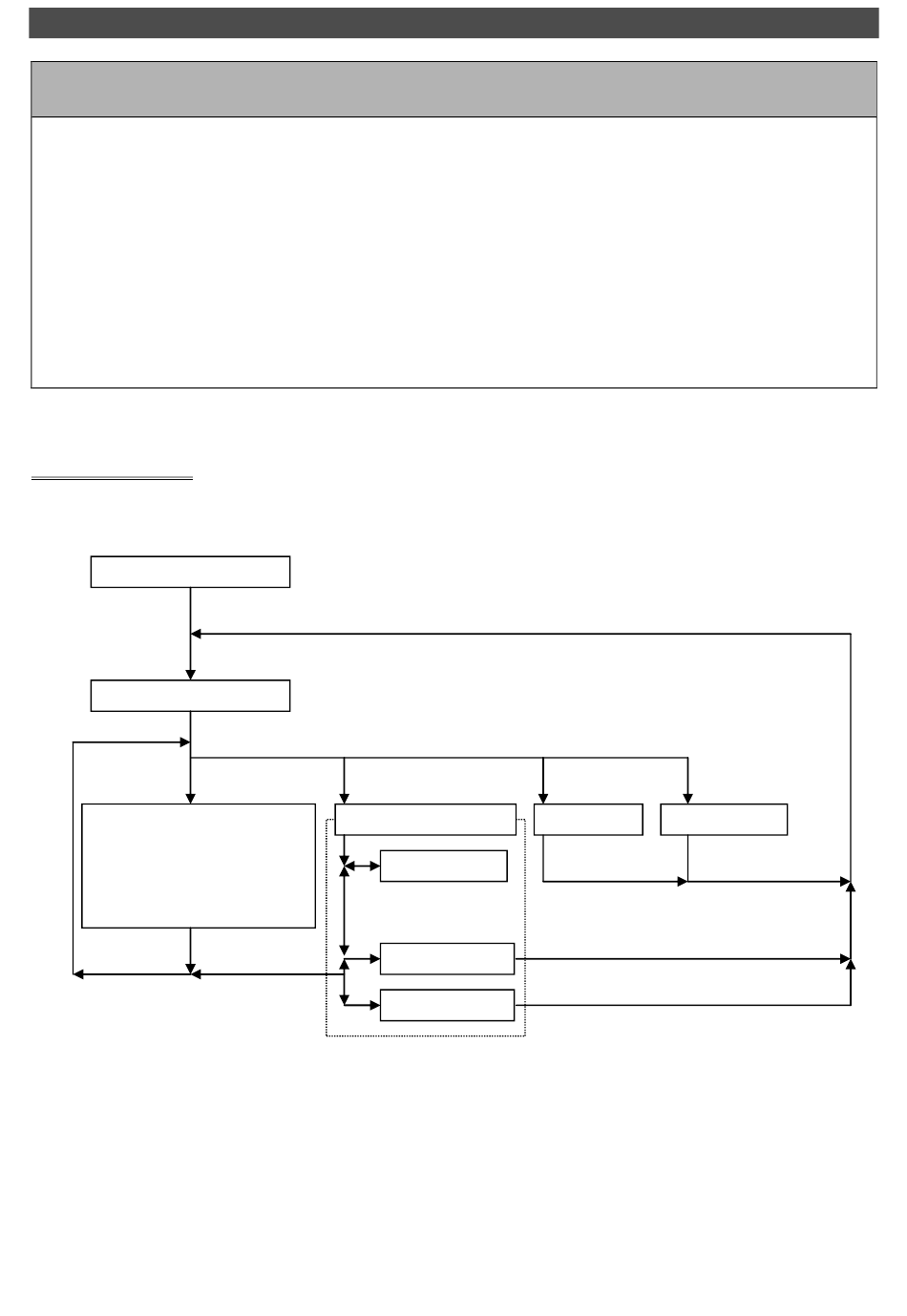

Flow of the setting
Power ON
Unlock keys
Setting of Preset pressure
Setting of min. pressure
Setting of max. pressure
Setting of switch output
(Note1) Please refer to each section for the operation method.
(Note2) The function of the setting of preset pressure is preset input type only.
(Note3) The function of the setting of switch output refers to the switch output type only.
△
Refer to P9
Refer to P10-12 Refer to P13-15
Detail Setting Mode
Caution
！
Gain
Zero clear
Initialize
