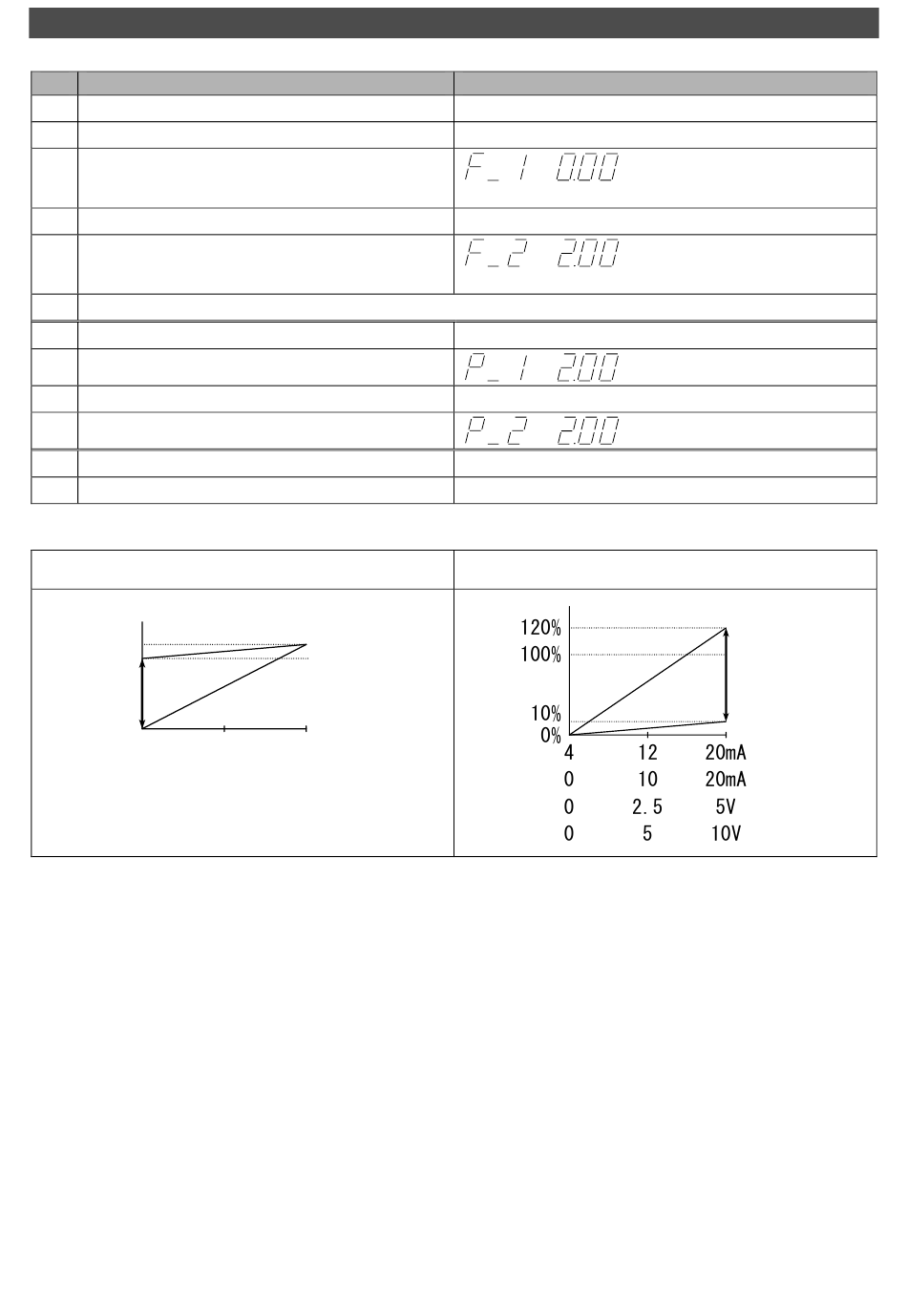

Setting of min. pressure, max. pressure and switch output
No Key operation
①
Unlock keys (refer to P9)
②
Press S-key
Set the minimum pressure by using the
③
△ and ▽ keys.
④
Press S-key
Set the maximum pressure by using the
⑤
△ and ▽ keys.
⑥ Go to No. ⑪ for monitor output : analogue output (voltage and current) type.
⑦
Press S-key
⑧ Set the P_1 by using the △ and ▽ keys.
⑨
Press S-key
⑩ Set the P_2 by using the △ and ▽ keys.
⑪
Press S-key
⑫
Lock keys (refer to P9)
Minimum pressure (F_1) adjusting range
100%
90%
0%
4
0
0 2.5
0
(Note1) F_1 is adjustable in a range from 0% to 90% of the rated value.
(Note2) F_2 is adjustable in a range from 10 to 120% of the rated value.
(Note3) Do not input the signal as like output the pressure of more than 100%.
Please use in a range of rating.
(Note4) The difference between F_1 and F_2 is adjustable in a range of 10% of the rated value.
(Note5) The adjustment like making the relation of F_1 > F_2 is not available.
(Note6) The numbers (2.00 etc) on the LED display indicate the secondary pressure.
12 20mA
10 20mA
5V
5 10V
⇔
* Adjusting range: Refer to Note 1 to 6
⇔
* Adjusting range: Refer to Note 1 to 6
⇔
⇔
Return to (current) pressure display.
Maximum pressure (F_2) adjusting range
(Default value : 0%＝0.00MPa)
(Default value : 100%＝2.00MPa)
- 10 -
LED Display
(displayed alternately)
(displayed alternately)
(displayed alternately)
(displayed alternately)
