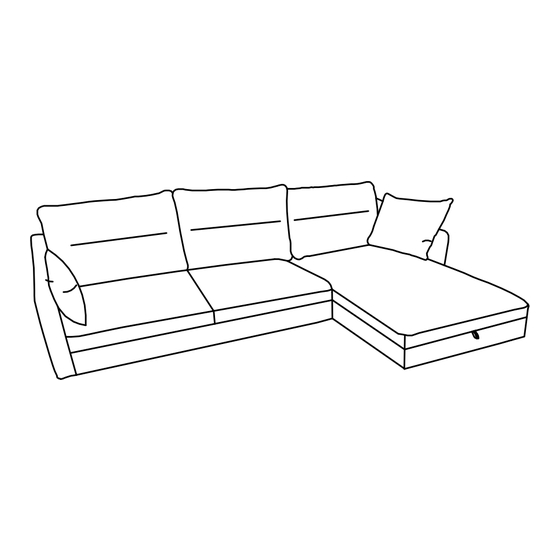

- Page 1 ASSEMBLY INSTRUCTIONS Carter Reversible Chaise Storage Sofa bed...
- Page 2 Read first, enjoy forever Assembly tips Assemble your product on a level surface and lay something soft underneath to ● protect potential floor damage. Don’t over tighten screws. During assembly we recommend tightening to ● approximately 70% tightness. Only tighten hardware 100% when fully assembled. Keep children away from assembly area as bags and small parts can pose a ●...
-
Page 3: Parts List
ASSEMBLY INSTRUCTIONS Parts list Carter Reversible Chaise Storage Sofa Bed XICQSBGC NUMBER OF PEOPLE REQUIRED FOR ASSEMBLY: TOOLS REQUIRED FOR ASSEMBLY 4# Hex 5# Hex Wrench(E) Wrench(F) 13PCS 13PCS 2PCS 4PCS 8PCS Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au... - Page 4 Flip up the 2-seater Frame(2)foldable backrest. Flip up the chaise Frame(3) foldable backrest. Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
- Page 5 You will need: Flip over the armrest, the 2-seater frame(2), and the chaise frame(3), then assemble, install the feet. 9 Screw Rod(A) C 2X 9 Screw Washer(B) 2 Positioning block(C) 4 Screw Rod (D) 4# Hex Wrench(E) Place the reclining mechanism (1) upright for assembly. 5# Hex Wrench(F) Damaged or missing parts? Or just need help?
- Page 6 Place the reclining mechanism (1) under the 2-seater frame(2). Tear open the fastener and then open the chaise frame(3). Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
- Page 7 Attach 4x screw washer (B) and 4x screw rod(A) to right You will armrest (5) with 5# hex wrench(E),install the feet. need: 4 Screw Rod(A) 4 Screw Washer(B) 5# Hex Wrench(F) Close the chaise frame(3). Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
- Page 8 Place the 3x back cushion (6) and 2x arm cushion (7) on the sofa to complete the assembly. To configure the chaise on the left side instead, adjust the positions of step 3 accordingly. Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
