HealTech Electronics SpeedoHealer CAN Supplementary Manual

For suzuki gsx-8s abs tc 2023 and up

Download this manual

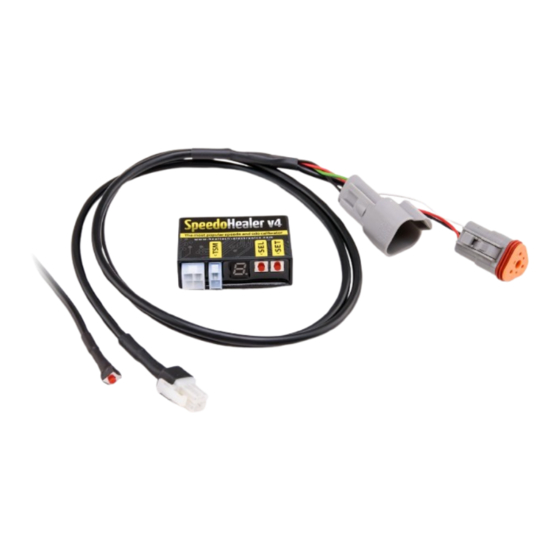

SpeedoHealer CAN

Supplementary Manual

Suzuki GSX-8S ABS TC 2023- (SH-CAN)

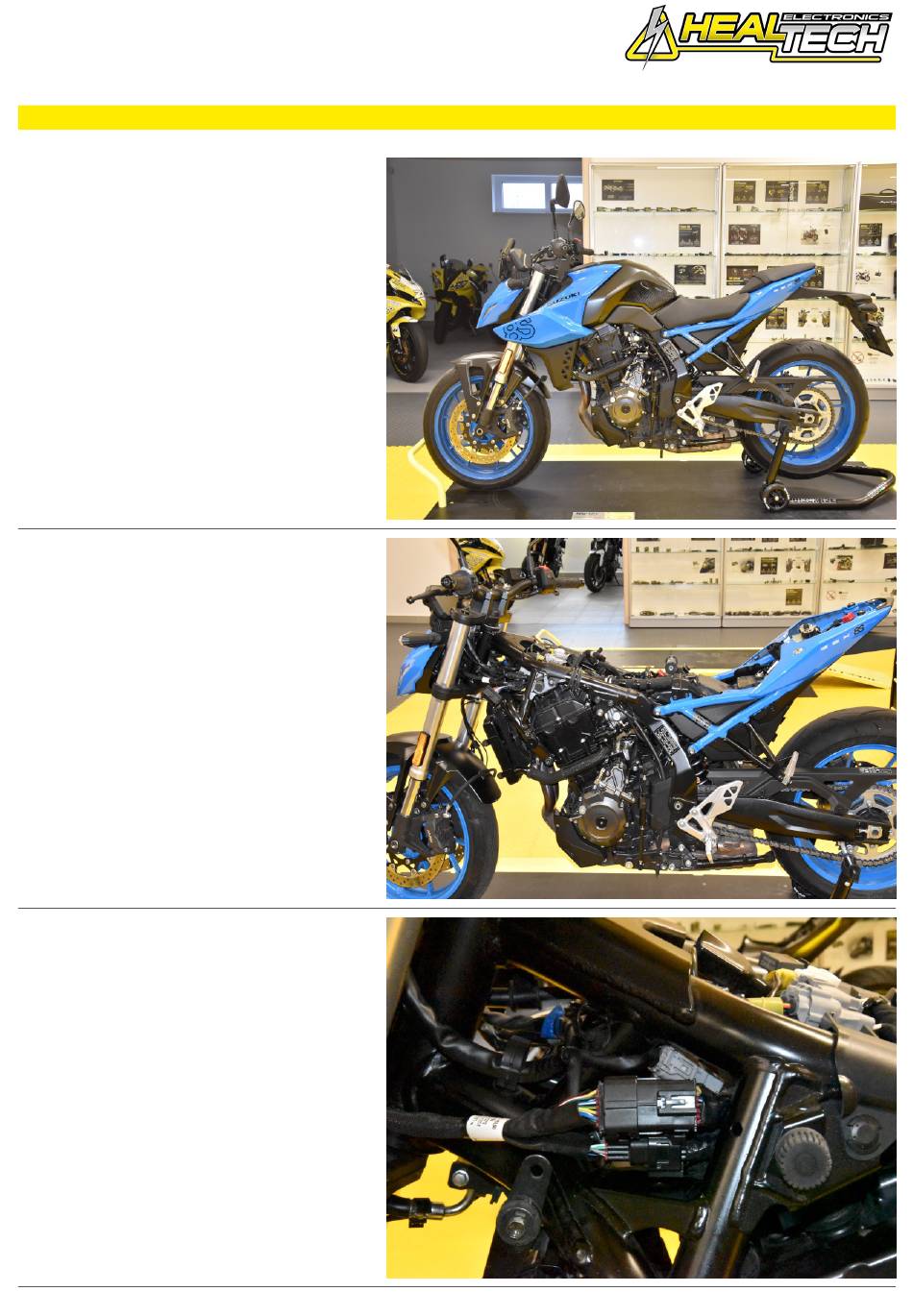

Secure the bike on a stand.

Remove the seats.

Remove the side fairings from the fuel

tank.

Remove the fuel tank.

Locate the dashboard connectors on the

left side.

w w w . h e a l t e c h - e l e c t r o n i c s . c o m

1/4

Need help?

Do you have a question about the SpeedoHealer CAN and is the answer not in the manual?

Page 1 SpeedoHealer CAN Supplementary Manual Suzuki GSX-8S ABS TC 2023- (SH-CAN) Secure the bike on a stand. Remove the seats. Remove the side fairings from the fuel tank. Remove the fuel tank. Locate the dashboard connectors on the left side. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
Page 2 SpeedoHealer CAN Supplementary Manual Suzuki GSX-8S ABS TC 2023- (SH-CAN) Cut the Black wire about 2,5cm (1") of the connector. Connect the SH Green wire to the Black wire end, which goes to the dashboard. Use a yellow butt connector.
Page 3 SpeedoHealer CAN Supplementary Manual Suzuki GSX-8S ABS TC 2023- (SH-CAN) Connect the SH Yellow wire to the Blue wire end, which is at the wiring harness side. Use a yellow butt connector. Splice the SH Red wire to the White/Green wire of the dashboard connector.
Page 4 SpeedoHealer CAN Supplementary Manual Suzuki GSX-8S ABS TC 2023- (SH-CAN) Typical position for the SpeedoHealer CAN. Secure the unit properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
