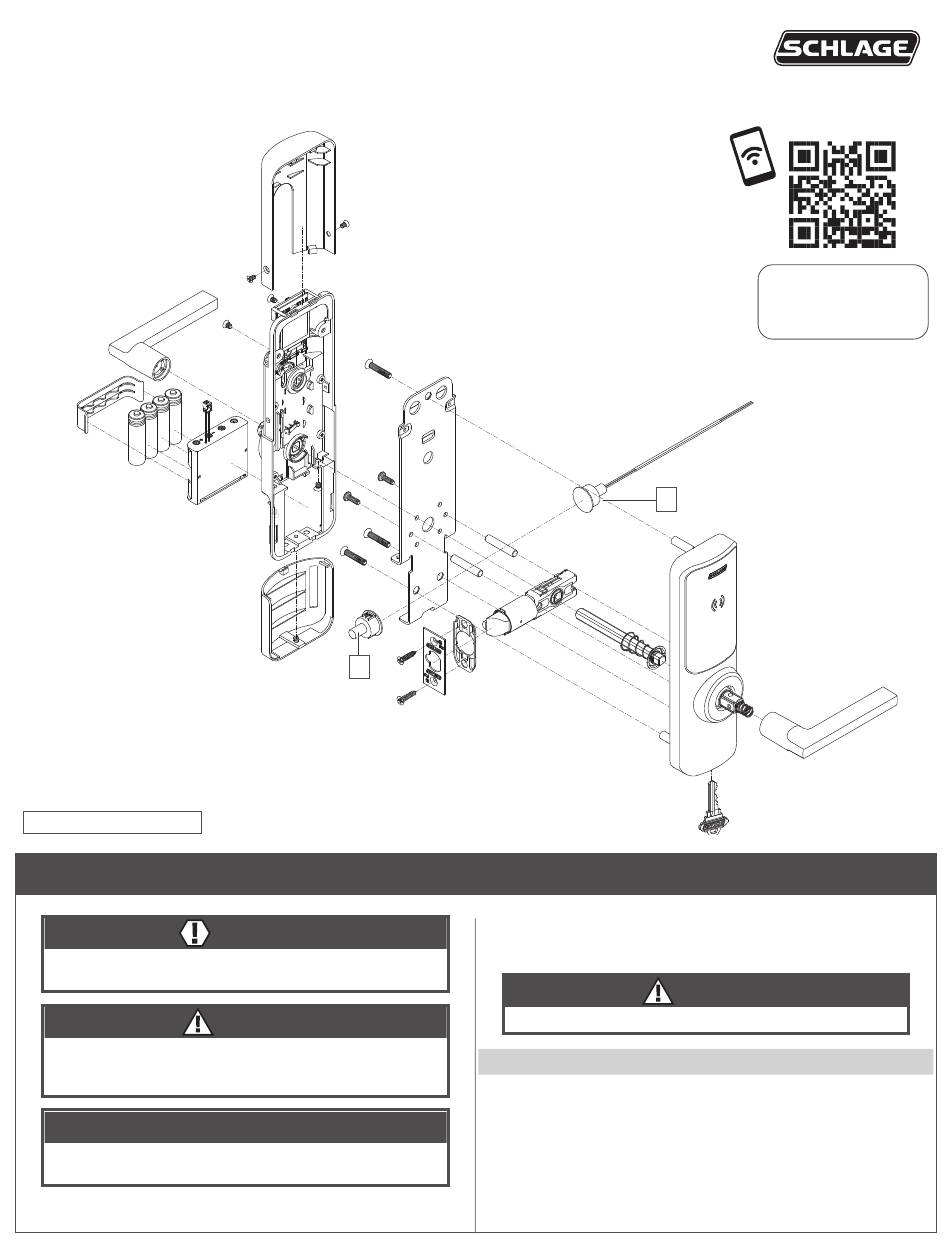

*47570179*
47570179
Tubular Lock
* DPS (Optional)
Important installation notes
Warnings indicate potentially hazardous conditions, which if
not avoided or corrected, may cause death or serious injury.
Cautions indicate potentially hazardous conditions, which if
not avoided or corrected, may cause minor or moderate injury.
Cautions may also warn against unsafe practices.
Notices indicate a condition that may cause equipment or
property damage only.
XE360-T Series
*
WARNING
CAUTION
NOTICE
Bags of fasteners are labeled to match the labels in the
L
installation steps. Look for the labels on the steps before
opening bags of fasteners.
Install with door open to avoid lockout.
Tools
Required
• #2 Phillips
• Lever Hex Tool (included)
Installation Instructions
Scan for user guide,
interactive instructions,
warranty and more!
alle.co/XE360
*
CAUTION
Optional
• Security Star Driver, T-15
• Hex Driver (3/32")
• 3/ 4" Drill Bit
• Locking Pliers
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allegion SCHLAGE XE360-T Series
Summary of Contents for Allegion SCHLAGE XE360-T Series
- Page 1 *47570179* XE360-T Series 47570179 Tubular Lock Installation Instructions Scan for user guide, interactive instructions, warranty and more! alle.co/XE360 * DPS (Optional) Important installation notes Bags of fasteners are labeled to match the labels in the WARNING installation steps. Look for the labels on the steps before opening bags of fasteners.
-
Page 2: Installation
Installation If Condensation Sealant Kit is required, install now. See 4b Install backplate. the instructions that came with the kit, or contact Notch customer service, for more information. CAUTION Faceplate and backplate must be installed correctly to maintain UL rating Prepare door. -
Page 3: Install Interior Plate
Assemble posts onto interior plate. Install interior plate. 7a Push cables through the gasket in the plate. If Condensation Sealant Kit is required, it should be installed before this step. See the instructions that came with the kit, or contact customer service, for more information. -
Page 4: Install Interior Assembly
8d Secure bottom with two (2) screws. Install interior assembly. BAG 5 If Condensation Sealant Kit is required, it should be installed before this step. See the instructions that came with the kit, or contact customer service, for more information. 8a Connect all cables. -
Page 5: Install Covers
Install levers. Install covers. 10a Loosen set screw in interior lever using included hex wrench. 11a Slide covers on. 10b Push lever onto spindle. 11b Secure with screws. BAG 6 BAG 6 Actual size (black) 10c Loosen set screw in exterior lever using included hex wrench. 10d Ensure lever catch is recessed. -
Page 6: Customer Service
(3 green blinks), cancel advertising by rotating the interior Customer Service lever once. 1-877-671-7011 www.allegion.com/us Open the door, The interior and exterior indicators will blink blue (1X) and beep (1X) Close the door. The interior and exterior indicators will blink... - Page 7 Serie | Série XE360-T Escanee la guía del usuario, las instrucciones interactivas, la Cerradura tubular garantía y ¡mucho más! Serrure tubulaire alle.co/XE360 Instrucciones para la instalación Scannez le guide de l’utilisateur, Instructions d’installation les instructions interactives, la garantie et bien plus encore! alle.co/XE360 * DPS (opcional) Interrupteur de position...
- Page 8 Instalación | Installation Instale el pestillo. | Installez le loquet. BOLSA 1 SAC 1 4a Ajuste el pestillo, si fuera necesario. Si se requiere el kit sellador de condensación, instálelo ahora. Consulte Ajustez le taquet, si nécessaire. las instrucciones que aparecen en el kit o póngase en contacto con el servicio de atención al cliente para obtener más información.
- Page 9 4d Agregue la placa delantera y sujete con tornillos. 6b Instale el husillo en el pestillo. Ajoutez la têtière et fixez à l’aide des vis. Installez le carré de porte dans le loquet. BOLSA 3 Tamaño real Exterior de SAC 3 Dimension réelle la puerta Extérieur de la porte...
- Page 10 7b Pase el husillo por el orificio de la placa. Pase las clavijas de la Instale la unidad interna. placa por las aberturas del pestillo. Passez le carré de porte par le trou de la plaque. Passez les Installez l’assemblage interne. supports de la plaque par les ouvertures du loquet.
- Page 11 8d Fije la parte inferior con dos (2) tornillos. 9d Instale el retén. Fixez le bas à l’aide des deux (2) vis. Installez le dispositif de retenue. BOLSA 5 SAC 5 Tamaño real Dimension réelle Instale las manijas. Instale las baterías. Installez les leviers. Insérez les piles.
- Page 12 10f Apriete los tornillos de fijación de los picaportes hasta que Instale las cubiertas. queden empotrados. Serrez les vis de calage sur les leviers jusqu’à ce qu’elles soient Installer les couvercles. encastrées. 11a Coloque las cubiertas. AVISO AVIS Glissez les couvercles en place. Apriete solo con la mano.
- Page 13 Cambio de sentido de apertura de la puerta. | Nouvelle main d’ouverture Retire la unidad externa de la puerta. Asegúrese de que el retén del picaporte está embutido y, a continuación, vuelva a instalar el picaporte, orientado en Enlevez l’assemblage externe de la porte. sentido opuesto.
- Page 14 (2 veces) y emitirán un pitido (2 veces). Fermez la porte. Les voyants intérieurs et extérieurs clignotent en bleu (2 fois) et émettent un bip (2 fois). Servicio al cliente | Service à la clientèle 1-877-671-7011 www.allegion.com/us © Allegion 2024 Printed in U.S.A. 47570179 Rev. 08/24-b...
- Page 15 2. printed black Creation Date Number Revision 3. tolerance ± .13 06-08-23 4. printed in country may vary 47570179 5. drawings not to scale Created by Activity M. Sasso 3899 Hancock Expwy Security, CO 80911 Software: InDesign CS6 © Allegion 2024...
