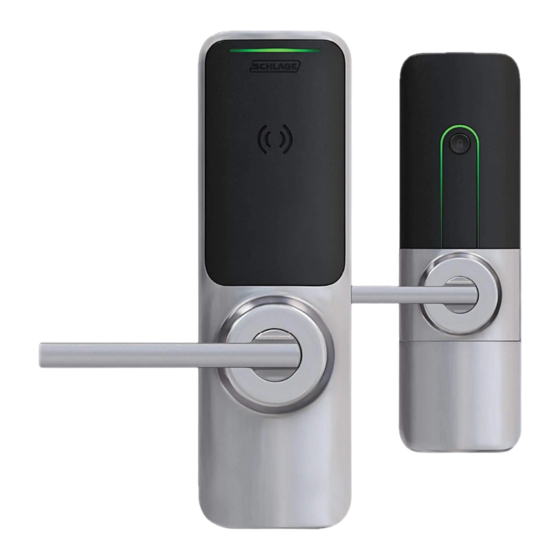

XE360
Series
™
Service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCHLAGE XE360 Series and is the answer not in the manual?

Questions and answers

Art Hannah
April 22, 2025

We would like to purchase Two of the xe360 SVR Spacer with screws Where can we purchase two

0

Subscribe to Our Youtube Channel

Related Manuals for Allegion SCHLAGE XE360 Series

Summary of Contents for Allegion SCHLAGE XE360 Series

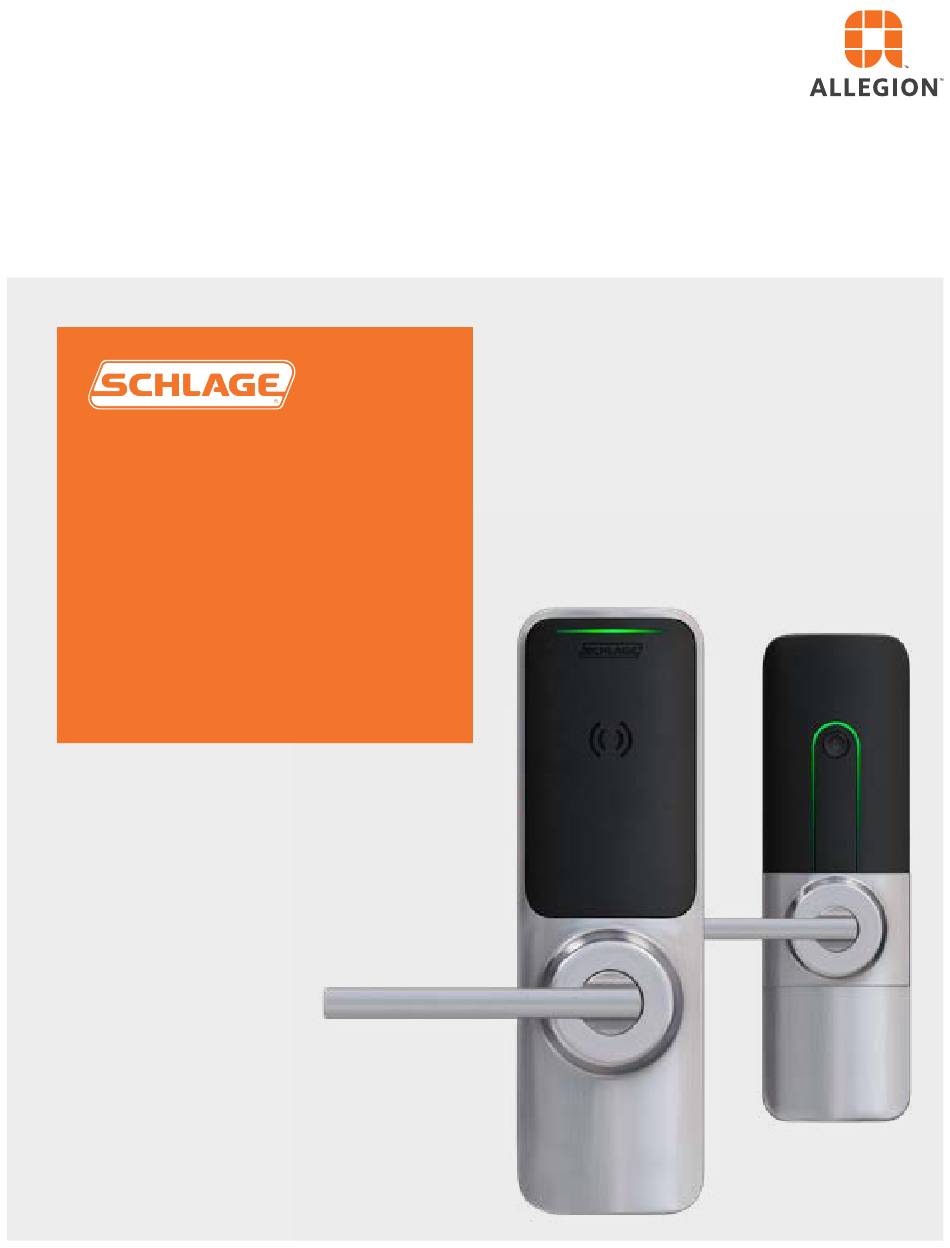

  • Page 1 XE360 Series ™ Service manual...

  • Page 2: Table Of Contents

    Contents Introduction Specifications XE360 Models Functionality Locks Tubular Mortise with deadbolt Mortise Exit wide, surface vertical rod Exit wide, rim 12 Parts and accessories Exit kits Levers Latches Battery packs Mortise chassis and armor Strikes Wiring harnesses Cylinders Covers 20 Door thickness kits FleX Module kits Decorative plates Condensation sealant kits...

  • Page 3: Introduction

    Introduction This manual contains a complete listing of XE360 wireless electronic lock parts and assemblies, along with exploded views of each lock with an accompanying chart to identify parts for replacement purposes. Specifications Mechanical Tubular Mortise Exit trim, wide stile Handing On-site handing with included hex key ANSI standard...

  • Page 4: Xe360 Models

    NFC student ID and employee badge mobile credentials; Google wallet NFC student ID and employee badge mobile credentials Assuming indoor application, default settings, 80 actuations, interior LED disabled Dependent on PACS provider capabilities. Visit us.allegion.com/alliances for more information Supported through ENGAGE XE360 Models...

  • Page 5: Functionality

    Introduction Functionality The XE360 Series is available with four locking functions which are adaptable in the field. B: button, I: indicator, D: deadbolt Function Description Tubular Mortise Exit Storeroom Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured ...

  • Page 6: Locks

    Locks Tubular Mortise with deadbolt Mortise Exit wide, surface vertical rod Exit wide, rim 6 • Schlage • XE360 Service manual...

  • Page 7: Tubular

    Locks Tubular Description Part No. Description Part No. Assembly, outside, XE360, T, M 47641620 T-strike, square corner, with box, 1 1/8" x 10-001 2 3/ 4", 1 1/8" lip length (standard strike) Assembly, inside mortise/tubular 47646271 indicator, with mounting plate (no Battery pack, mortise/tubular with 47646287 strap...

  • Page 8: Mortise With Deadbolt

    Locks Mortise with deadbolt Description Part No. Description Part No. Assembly, outside, T, M 47641620 Armor, 1 1/ 4" square corner, latch x 09-666 auxiliary latch x deadbolt, with screws Assembly, inside mortise deadbolt, 47646277 with mounting plate (no FleX Module) Battery pack, mortise/tubular with 47646287 strap...

  • Page 9: Mortise

    Locks Mortise Description Part No. Description Part No. Assembly, outside, T, M 47641620 Armor, 1 1/ 4" square corner, latch x 09-663 auxiliary latch, with screws Assembly, inside mortise/tubular 47646271 indicator, with mounting plate (no Battery pack, mortise/tubular with 47646287 strap FleX Module) Harness, door position sensor...

  • Page 10: Exit Wide, Surface Vertical Rod

    Locks Exit wide, surface vertical rod (shown with FA25, not included) Description Part No. Description Part No. Assembly, outside, exit 47641763 25V/9927/2227, SVR spacer, exit, with 47646284 screws Assembly, exit, inside, IPB with 47646282 mounting plate (no FleX Module) Lever, with set screw 47600089 Assembly, exit, inside, indicator, with 47646283...
  • Page 11 Locks Exit wide, rim (shown with FA25, not included) Description Part No. Description Part No. Assembly, outside, exit 47641763 Lever, with set screw 47600089 Assembly, exit, inside, IPB with 47646282 Battery pack, exit wide 47646292 mounting plate (no FleX Module) REX cable, exit 47493166 Assembly, exit, inside, indicator, with...

  • Page 12: Parts And Accessories

    Parts and accessories Exit kits Levers Latches Battery packs Mortise chassis and armor Strikes Wiring harnesses Cylinders 20 Covers Door thickness kits FleX Module kits Decorative plates Condensation sealant kits 24 Fastener reference 12 • Schlage • XE360 Service manual...

  • Page 13: Exit Kits

    Parts and accessories Exit kits Exit device mounting plate kit Part no. 47641903 Description Exit device mounting plate with adapter, spindle and tailpiece kit Notes Specify exit device model and door thickness Exit device model F25R/F25S VD22R/VD22S VD99R/VD99C/VD99S Door thickness (inches) 1 3/ 4 - 1 7/8 2 1/2 - 2 5/8 1 3/ 4 - 1 7/8...
  • Page 14 Parts and accessories Exit tailpiece kit Tailpiece kit Part no. Description Notes 47516801 Exit tailpiece kit Specify exit trim, handing, and door thickness. Contents Exit device model Description Handing Door thickness (inches) Qty. VD99R, VD22R Tailpiece 1 3/ 4 - 2 1/ 4 2 3/8 - 2 3/ 4 VD99S/99C/22S 1 3/ 4 - 2 3/ 4...

  • Page 15: Levers

    Parts and accessories Levers Broadway (BRW) Neptune (NEP) Latitude (LAT) Latitude ADA (LON-E) Lever and set screw assembly Part no. Description Notes 47600089 Lever and set screw assembly Specify style and finish. Finishes Description Satin nickle Matte black Satin chrome Latches Tubular latches Part no.

  • Page 16: Battery Packs

    Parts and accessories Battery packs 47646287 47646292 Battery pack, XE360, mortise/ tubular with strap Battery pack, XE360, exit wide Battery Packs Part no. Description Notes 47646287 Battery pack, XE360, mortise/tubular with strap T, M Only 47646292 Battery pack, XE360, exit wide EW Only Mortise chassis and armor Mortise chassis...
  • Page 17 Parts and accessories K510-066 10-026 10-027 Box for ANSI strike Square corner, full lip, no box Round corner, full lip, no box Tubular strikes Part no. Description Notes Lip length 10-001 Square corner, T-strike, box, 1 1/8" x 2 3/ 4" standard strike 1 1/8"...

  • Page 18: Wiring Harnesses

    Parts and accessories Mortise strikes Part no. Description Notes 10-072-1316 Mortise strike, 1 3/16 lip with screws Specify lip length 10-072-100 Mortise strike, 1" lip with screws 10-072-112 Mortise strike, 1 1/2" lip with screws 10-072-134 Mortise strike, 1 3/ 4" lip with screws 10-072-200 Mortise strike, 2"...

  • Page 19: Covers

    Parts and accessories Covers 47646305 47646310 47646312 Exit RF cover with screws Mortise/tubular RF cover with screws Mortise/tubular battery cover with screws Covers Part no. Description 47646305 Exit RF cover with screws 47646310 Mortise/tubular RF cover with screws 47646312 Mortise/tubular battery cover with screws 19 •...

  • Page 20: Door Thickness Kits

    Parts and accessories Door thickness kits 47642995 47642996 47641901 Mortise door thickness kit Tubular door thickness kit Door thickness kits 1 5/8" - 1 3/ 4" door thickness Specify door thickness. Baseplate not included. Part no. Model Contents 47642995 Mortise Mortise spindle Assembly, spindle and spring, mortise Screw, #10-32, FL HD, PH drive...

  • Page 21: Flex Module Kits

    Parts and accessories FleX Module kits FleX Module kits OF (offline) class with retention key and holder Part no. Offline (OF) Model With key and holder 47646313 indicator   Holder 47876541 button   47876542 deadbolt   Retention key Decorative plates Decorative plates Exit device decorative plate kit...

  • Page 22: Condensation Sealant Kits

    Parts and accessories Condensation sealant kits Descriptive text here. Condensation sealant kits Part no. Model Contents Mortise and tubular Exit devices 47870663 Mortise/Tubular PCBA Cover Backplate Cable Plug Backplate Spindle Plug Deadbolt Hole Gasket Alignment Hole Gasket 47870662 Exit PCBA Cover Backplate Plug Exit 22 •...

  • Page 23: Fastener Reference

    Parts and accessories Fastener reference Use this table as a reference for fasteners used in locks. Model/ Application Description Size Drive Head Threads Material Finsh Length Backplate 10-32 Phillips Flat Machine Steel Zinc 1" Battery cover (captive) 8-32 Torx Flat Machine Steel Zinc...
  • Page 24 About Allegion™ Allegion (NYSE: ALLE) is a global pioneer in seamless access, with leading brands like CISA , Interflex , LCN , Schlage , SimonsVoss and Von Duprin . Focusing on ® ® ® ® ® ® security around the door and adjacent areas, Allegion secures people and assets with a range of solutions for homes, businesses, schools and institutions.
