JL Audio Stealthbox SB-GM-CLRDO/10W3v3 Installation Manual page 2

*CAUTION*
Before drilling, make sure that you are not
Cont.
From
going to be drilling into any gas lines, brake
Previous
lines, transmission lines, electrical wiring, trans-
Page
fer case(4x4 vehicles) or anything else that
might cause a reduction in your weekly pay.
Always wear eye protection when drilling.

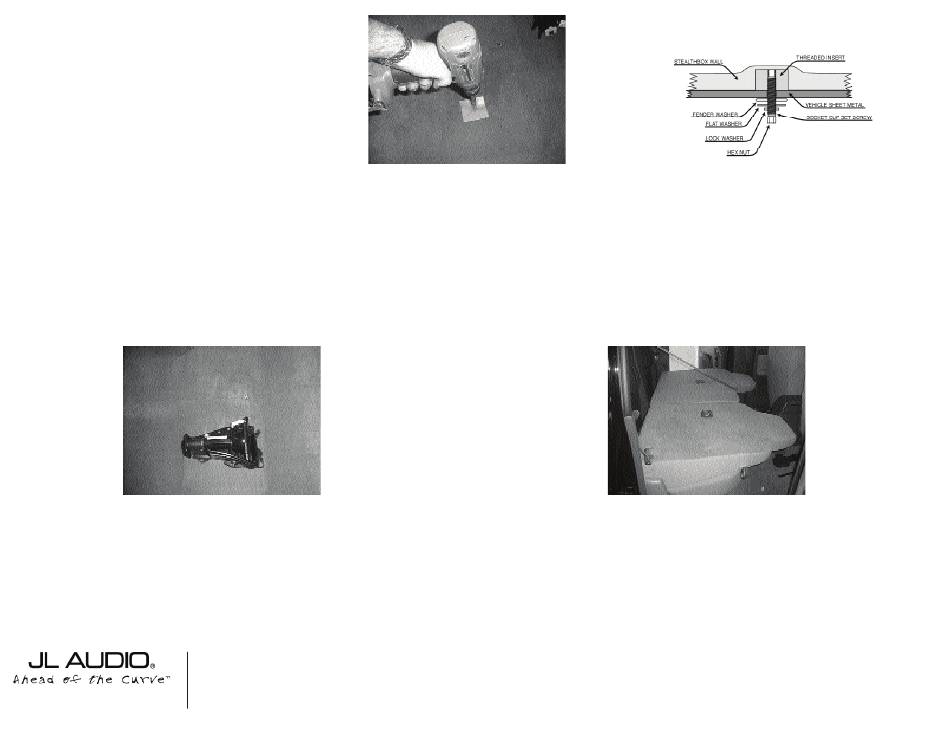

With the use of a 1/2" drill bit and drill. Drill out
the floor at the impression on the wax square.
After the hole is drilled, remove the wax square
STEP 9: Place the jack back into the holder
and then place the jack assembly to the floor
(same area it was removed from) with the yel-
low knob facing the passenger's side rear
door. With one factory mounting bolt. Secure
the assembly with to the driver's side mount-
ing threads. Use the second factory mounting
bolt to plug up the passenger's side mount-
w w w. j l a u d i o . c o m
STEP 7: (A) Thread the supplied socket cup
screw into the Stealthbox. Leave 1/2" exposed.
(B) Place the Stealthbox into position and line
up the curved corners of the Stealthbox, that
are between the woofer and the square shape
of the Stealthbox. These corners need to line
up with the curvature of the transmission
hump floor as it goes to the rear and jets to
the right and left of the truck. Once into place,
push down with force.
(C)With a 1/2" drill bit, drill at the impression
that was left by the Stealthbox in STEP6.
S B - G M - C L D R O / 1 0 W 3 v 3 , J L AU D I O, I n c 2 0 0 6
STEP 8: With the drilled out hole in the floor.
Expose the socket cup set screw 2" out of the
Stealthbox. Place the Stealthbox into position
and guide the socket cup set screw through
the drilled hole.
From under the vehicle, place the supplied
fender washer, flat washer, lock washer and
hex nut onto the socket cup screw.
STEP10: With a second person, place the rear
seat back into position. Wrap the shoulder
belt in front of the seat and through bottom
crease of the seat.
Pa ge 2
Continued on Next Page '
S h e e t S K U # 0 1 1 1 8 9 R e v i s i o n 0 9 . 0 8 . 2 0 1 5
