JL Audio Stealthbox SB-GM-CLREXT/10W3v2 Installation Manual

®
Stealthbox
I N S T A L L A T I O N G U I D E
for the
SB-GM-CLREXT/10W3v2
(2004-Up Chevrolet Colorado &
GMC Canyon Extended Cab)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.
w w w . j l a u d i o . c o m
START
HERE

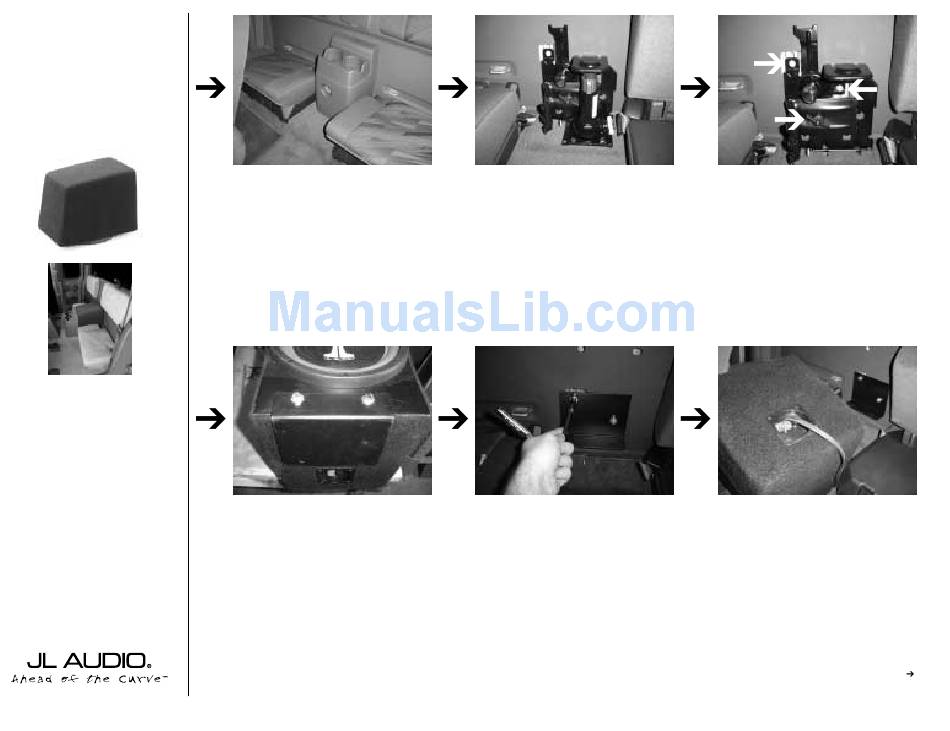

STEP 1: Remove all contents from rear of
truck.
STEP 4: Unbolt the bracket that is already
attached to the Stealthbox.
Set mounting hardware to the side.This will
be used in later steps.
S B - G M - C L R E X T / 1 0 W 3 v 2 , J L AU D I O, I n c 2 0 0 5
STEP 2: Remove the plastic jack cover and
jack from the bracket.
STEP 5: With the supplied hardware, attach
the bracket to the rear wall.
Place a 1/4" lock wash and a 1/4" flat washer
onto each #6x30mm-1mm bolt.
Place the bolts through the bracket and slide
one 1"Lx1"ODx3/8"ID spacer onto each bolt.
Line up the bolts to the factory threads and
secure tightly.
Pa g e 1
2
3
1
STEP 3: Remove the (1) tire stops and with
a 10mm socket, (2&3)unbolt the jack bracket.
STEP 6: Attach speaker wire to the
Stealthbox terminal and check the woofer for
proper operation.
Continued on Next Page
