JL Audio Stealthbox SB-GM-CAM12W6v2 Installation Manual

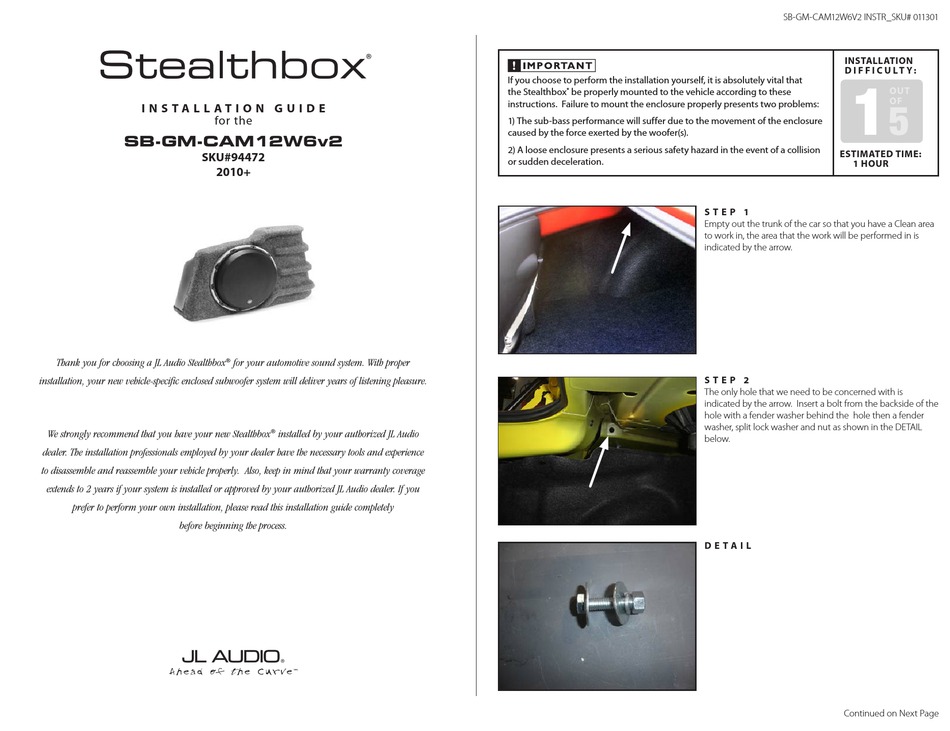

I n s t a l l a t I o n G u I d e
for the
SB-GM-CAM12W6v2
sKu#94472
2010+
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-GM-CAM12W6V2 INSTR_SKU# 011301
InstallatIon
d I F F I C u l t Y :
1
estImated tIme:
1 HouR
s t e P 1
Empty out the trunk of the car so that you have a Clean area
to work in, the area that the work will be performed in is
indicated by the arrow.
s t e P 2
The only hole that we need to be concerned with is
indicated by the arrow. Insert a bolt from the backside of the
hole with a fender washer behind the hole then a fender
washer, split lock washer and nut as shown in the DETAIL
below.
d e t a I l
Continued on Next Page
out
oF
5
