JL Audio Stealthbox SB-GM-CLRDO/10W3v3 Installation Manual

®
Stealthbox
I N S T A L L A T I O N G U I D E
for the
SB-GM-CLRDO/10W3v3
(2004-2013 Chevrolet Colorado & GMC Canyon
Crew Cab)
This Stealthbox is a product which
requires professional installation skills
and tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclo-
sure be properly mounted to the vehi-
cle according to these instructions.
Failure to mount the enclosure properly
presents two problems: 1) The sub-
bass performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.
w w w. j l a u d i o . c o m
START
HERE

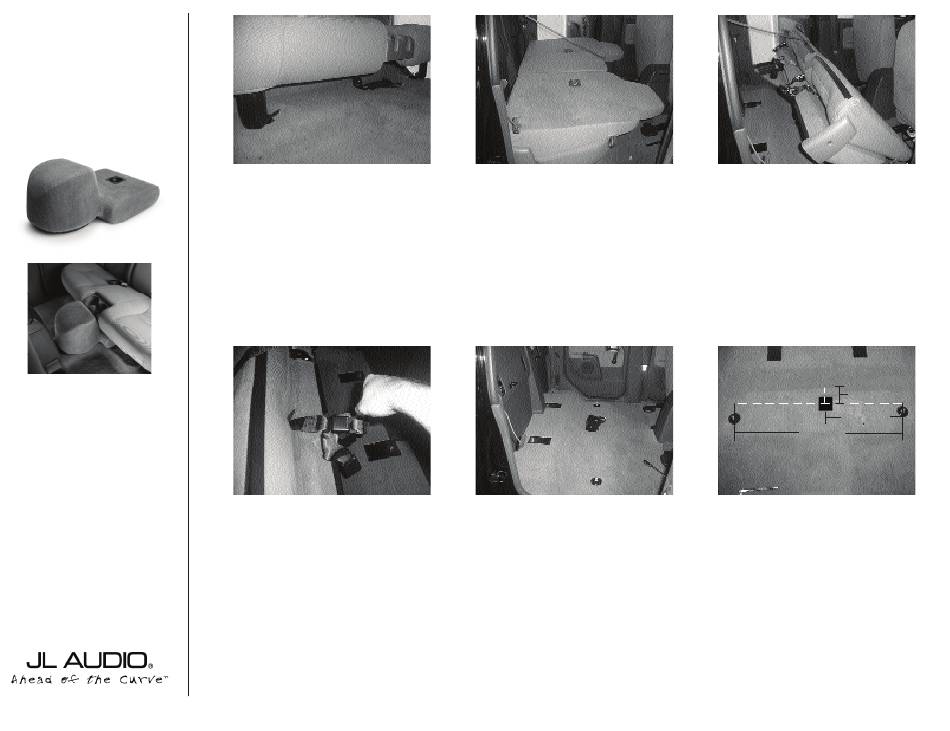

STEP 1: With an 18mm deep socket, remove
the two front mounting nuts.
Also remove the jack out of the metal holder.
STEP 4: With the rear seat tilted forward,
locate the middle passenger's shoulder safety
belt. Follow the belt down to the latch. With a
flat blade screw driver, push the red button.
This will disengage the shoulder belt. Pull the
belt through the crease of the seat and up to
the return pocket, located on the back wall.
S B - G M - C L D R O / 1 0 W 3 v 3 , J L AU D I O, I n c 2 0 0 6
STEP 2: There are two rear mounting nuts
that need to be removed. With a long exten-
sion and the 18mm deep socket. Remove the
rear mounting nuts.
STEP 5: Remove the rear seat out of the vehi-
cle. You should use a second person to help
out.
Also remove the metal jack holder.
*At this time run speaker wire from the ampli-
fier area to the Stealthbox area. Double check
the woofer for proper working order. *
Pa g e 1
STEP 3: With the rear mounting nuts
removed, tilt the rear seat forward, off the
mounting studs.
3-3/4"
X
18-1/16"
36-1/8"
STEP 6: Place the middle of the supplied wax
square, in the middle of the mounting studs
and 3-3/4" from the point of the floor as it
starts to elevate up. Remember to remove
the paper backing.
If the Stealthbox is mounted to far to the rear,
the rear seat will not fit. If the Stealthbox is
mounted to far forward, it will hit the front
center console.
Continued on Next Page '
