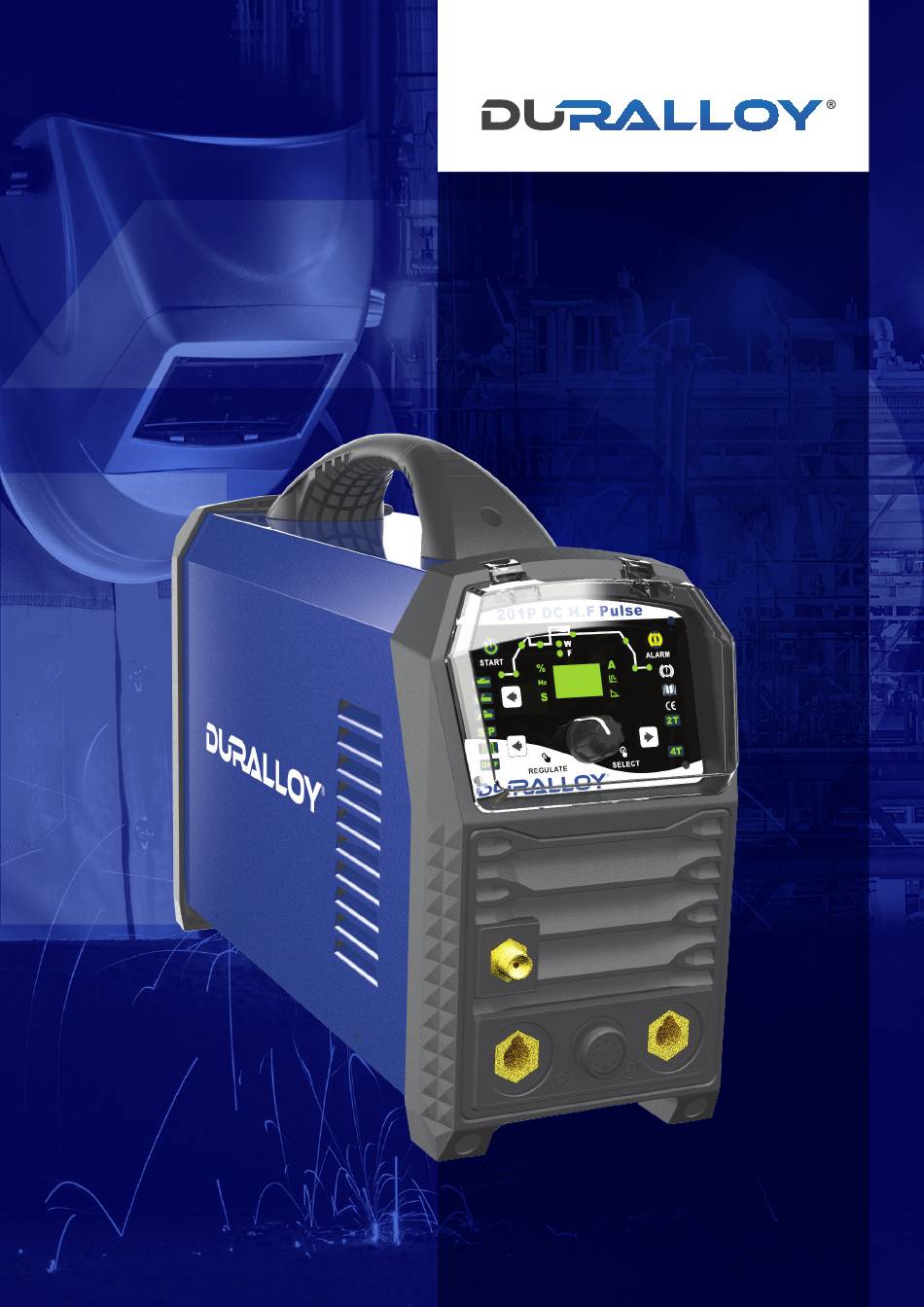

- Page 1 201P DC HF PULSE OWNER’S MANUAL www.duralloy.net.au | 1300 369 456...
- Page 2 Industrial Maintenance & Repairs For industrial welding solutions, check out the DURALLOY at www.duralloy.net.au DURALLOY is a market leading provider of innovative power equipment solutions to a wide range of industries across Australia. Key product categories are; welding equipment, power generators and cleaning equipment.
-
Page 3: Table Of Contents
201P DC HF PULSE OWNER’S MANUAL CONTENTS Know Your Machine Quick Start Guide Wireless Remote Control Configuration Wiring Diagram Care & Maintenance Electrodes Effects of MMA Welding Various Metals Safety Warranty www.duralloy.net.au | 1300 369 456... -
Page 4: Welding Machine

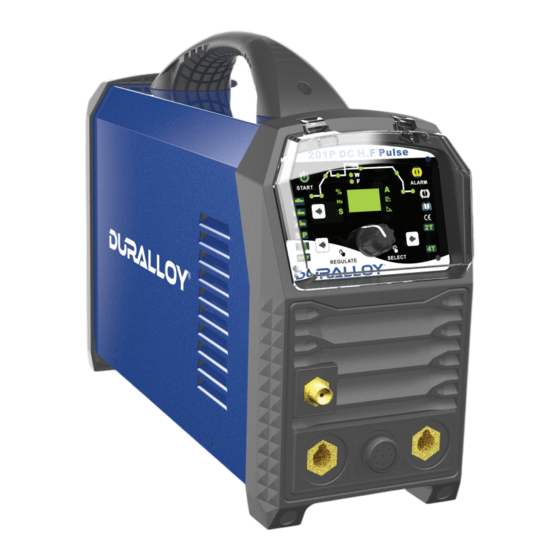

201P DC HF PULSE OWNER’S MANUAL 201P DC HF PULSE DC Inverter DC HF TIG Welding Machine PART NO: DA201PDC STICK 3 YEAR EN60974-1.2012 WARRANTY SPECIFICATIONS HIGH PERFORMANCE DC PULSE Power Supply 240 V High performance pulse TIG welding on... -
Page 5: Know Your Machine
201P DC HF PULSE OWNER’S MANUAL KNOW YOUR MACHINE Front and rear panel layout 1. “-” Output terminal 2. TIG torch remote connection socket 3. TIG gas connection 4. “+” Output terminal 5. Power switch 6. Input power cable 7. Inlet gas connector... - Page 6 201P DC HF PULSE OWNER’S MANUAL Parameter Select/Adjust Knob (22) FURTHER CONTROLS EXPLAINED Switch between welding parameter settings by pressing the TIG/HF Lift Ignition Modes (10,11) knob, adjust by turning the knob. Value of the parameter selected For TIG welding process, contact of the torch tungsten to the will be shown on the digital multifunction display (18).
- Page 7 201P DC HF PULSE OWNER’S MANUAL Post gasflow setting indicator (8) TIG PARAMETER SETTING Controls the period of time the shielding gas continues to flow Pre gas flow setting indicator (1) for after the arc is stopped. This protects the weld area and torch...
-
Page 8: Pulse Settings
This is very useful for precision work. The DURALLOY Hot Start (34) 201P DC HF PULSE can also be used with the Duralloy Wireless Hot start provides extra power when the weld starts to counteract remote control system. Refer to the accessories section further on the high resistance of the electrode and workpiece as the arc is in this manual for the options available. -
Page 9: Basic Operation
Please note, the DURALLOY 201P DC HF PULSE is a DC (Direct Current) output welder only. This means that it is unable to TIG weld reactive metals such as 1.2 Insert an electrode into the electrode holder and connect the... -
Page 10: Pin Remote Plug Connection
201P DC HF PULSE OWNER’S MANUAL REMOTE 12-Pin Remote Plug Connection Spin Common Socket Wire Foot Welding Remote Up-Down Shell Pedal Torch Control Torch Torch Short Circuit Potentiometer + Potentiometer + Potentiometer Potentiometer Centre Tap Centre Tap Potentiometer Potentiometer Down... -
Page 11: Wiring Diagram
201P DC HF PULSE OWNER’S MANUAL WIRING DIAGRAM www.duralloy.net.au | 1300 369 456... -
Page 12: Care & Maintenance
Keep your welding machine in top condition Size of Electrodes The DURALLOY 201P DC HF PULSE does not require any special The electrode size is determined by the thickness of metals maintenance, however the user should take care of the machine... -
Page 13: Types Of Electrodes
201P DC HF PULSE OWNER’S MANUAL EFFECTS OF MMA WELDING VARIOUS MATERIALS High Tensile and Alloy Steels The two most prominent effects of welding these steels are the formation of a hardened zone in the weld area, and, if suitable precautions are not taken, the occurrence in this zone of under- bead cracks. -
Page 14: Safety
201P DC HF PULSE OWNER’S MANUAL SAFETY Store and Retain this Manual 4. Never leave the welder unattended while energised. Turn Retain this manual for the safety warnings and precautions, power off before leaving the welder unattended. assembly, operating, inspection, maintenance and cleaning 5. -
Page 15: Personal Safety
201P DC HF PULSE OWNER’S MANUAL Welding Safety Instructions & Warnings Personal Safety WARNING! CAUTION Protect yourself and others from possible serious injury or Keep the work area well lit. Make sure there is adequate death. Keep children away. Read the operating/Instruction space surrounding the work area. - Page 16 201P DC HF PULSE OWNER’S MANUAL Work Environment Safety Electricity Can Kill CAUTION DANGER! Used with the safety alert symbol, indicates a hazardous Touching live electrical parts can cause fatal shocks or situation which, if not avoided, could result in minor or severe burns.
- Page 17 201P DC HF PULSE OWNER’S MANUAL Fumes And Gases 5. Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Shielding ga es used for WARNING! welding can displace air causing injury or death. Be sure the Welding produces fumes and gases.
- Page 18 201P DC HF PULSE OWNER’S MANUAL Fire & Explosive Risks Cylinders WARNING! WARNING! Sparks and spatter fly off from the welding arc. The flying Gas cylinders contain gas under high pressure. If sparks and hot metal, weld spatter, work piece, and hot damaged, a cylinder can explode.
-
Page 19: Warranty
WARRANTY Duralloy Welding Equipment / Plasma Cutting Range 3 year Warranty* The Obligation of Duralloy Industrial Supply under this warranty is limited to the circumstance set out above and is subject to: Duralloy Industrial Supply warrants the original retail purchaser •... - Page 20 201P DC HF PULSE OWNER’S MANUAL www.duralloy.net.au | 1300 369 456...
- Page 21 | 1300 369 456...
