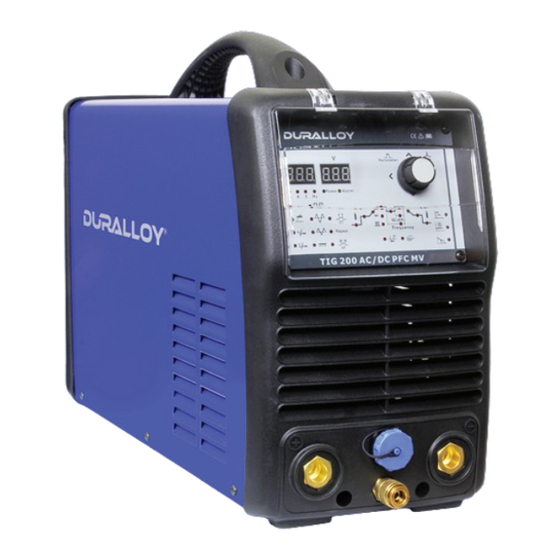

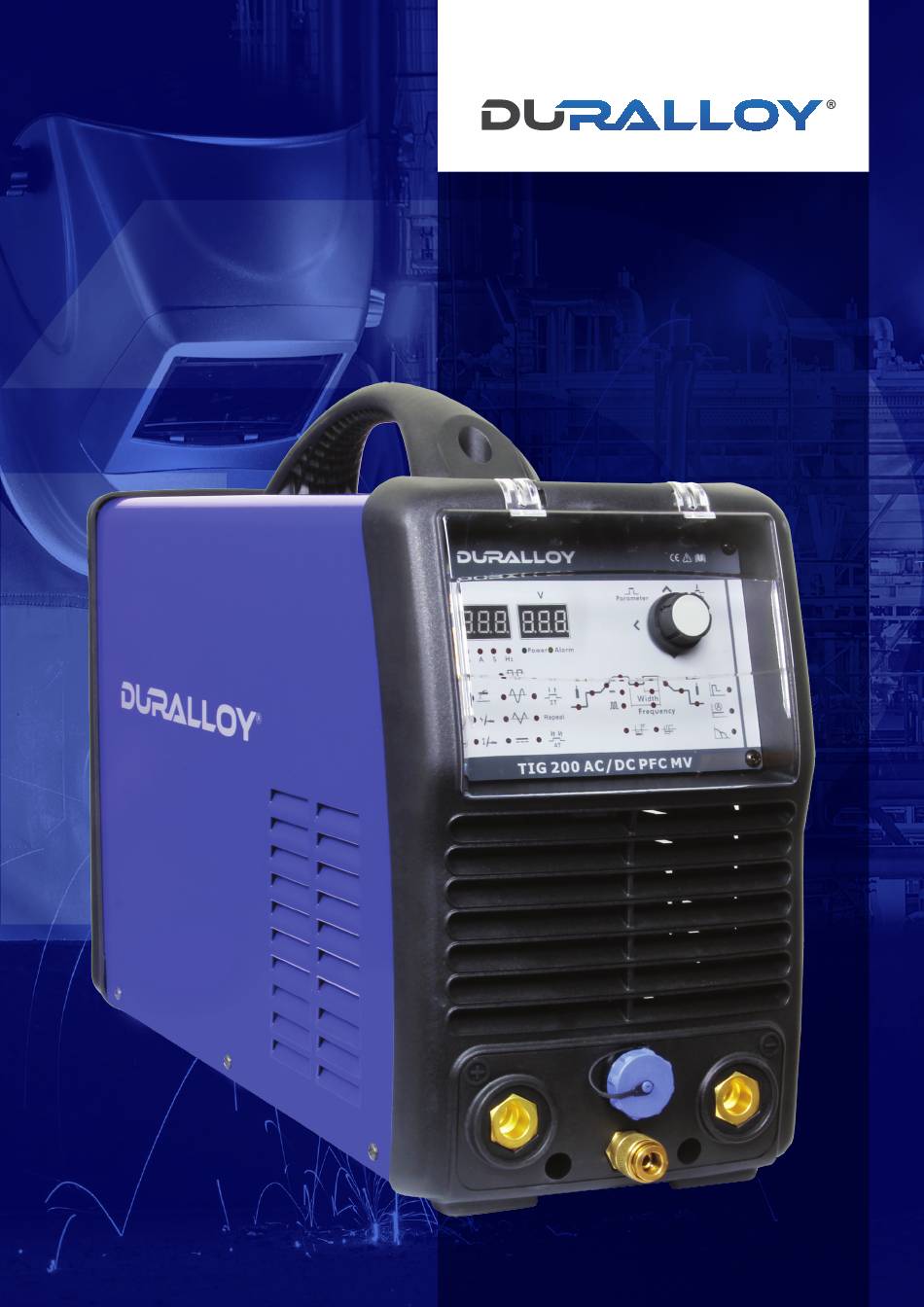

- Page 1 TIG 200 AC/DC PFC MV OWNER’S MANUAL www.duralloy.net.au | 1300 369 456...
- Page 2 Industrial Maintenance & Repairs For industrial welding solutions, check out the DURALLOY at www.duralloy.net.au DURALLOY is a market leading provider of innovative power equipment solutions to a wide range of industries across Australia. Key product categories are; welding equipment, power generators and cleaning equipment.
-
Page 3: Table Of Contents
TIG 200 AC/DC PFC MV OWNER’S MANUAL CONTENTS Know Your Machine Quick Start Guide Wireless Remote Control Configuration Wiring Diagram Care & Maintenance Electrodes Effects of MMA Welding Various Metals Safety Warranty www.duralloy.net.au | 1300 369 456... - Page 4 TIG 200 AC/DC PFC MV OWNER’S MANUAL TIG 200 AC/DC PFC MV 240V AC/DC HF Pulse Inverter TIG Welding Machine PART NO: DA200ACDC STICK 3 YEAR EN60974-1.2012 WARRANTY SPECIFICATIONS PFC TECHNOLOGY Power Supply 90VAC - 275VAC Most DURALLOY® Welding Machines feature PFC...
-
Page 5: Know Your Machine
TIG 200 AC/DC PFC MV OWNER’S MANUAL KNOW YOUR MACHINE More detailed explanations of function on following pages. 1. Negative terminal (-) welding power output connection socket. 2. TIG torch gas connector. 3. Positive terminal (+) welding power output connection socket. - Page 6 TIG 200 AC/DC PFC MV OWNER’S MANUAL FURTHER CONTROLS EXPLAINED TIG SETTINGS LH Digital Multifunction Display (5) Pre Flow (11) Pre-flow controls the period shielding gas will flow for when the Before welding this displays the setting selected/being adjusted torch is triggered before the arc starts. This purges the work area using the control knob (7).
- Page 7 This function is useful to longer welds as the trigger is not required to be held on continuously. The Duralloy 200 AC/DC PFC MV also has more current control options that can be used in 4T mode.
- Page 8 Program/Job Memory increments, or ‘scrolls’ up to 30A at a time if the button is held The DURALLOY TIG 200 AC/DC PFC MV has 10 memory/ job down. This is very useful for precision work. The DURALLOY spaces that parameters can be saved to for easy recall. To...
-
Page 9: Quick Start Guide
Ensure that the machine is placed on a stable level surface where or ‘HF TIG’ (33). clean cool air can easily flow through the unit. The DURALLOY 200AC/DC PFC MV has electrical components and control circuit 2.4 Assemble female gas quick connector to the gas line and boards which may be damaged by excessive dust and dirt, so a regulator outlet fitting. -
Page 10: Wireless Remote Control Configuration
Each interface frequency assigned is unique, so it is possible to use several wireless control systems/machines in the same area with no problems. The direct range of the DURALLOY wireless control system is approximately 100m, this will be affected by the physical location of the machine and the remote control. -
Page 11: Wiring Diagram
TIG 200 AC/DC PFC MV OWNER’S MANUAL WIRING DIAGRAM www.duralloy.net.au | 1300 369 456... -
Page 12: Care & Maintenance
Keep your welding machine in top condition Size of Electrodes The DURALLOY 200AC/DC PFC MV does not require any special The electrode size is determined by the thickness of metals maintenance, however the user should take care of the machine... -
Page 13: Effects Of Mma Welding Various Metals
TIG 200 AC/DC PFC MV OWNER’S MANUAL EFFECTS OF MMA WELDING VARIOUS MATERIALS High Tensile and Alloy Steels The two most prominent effects of welding these steels are the formation of a hardened zone in the weld area, and, if suitable precautions are not taken, the occurrence in this zone of under- bead cracks. -
Page 14: Safety
TIG 200 AC/DC PFC MV OWNER’S MANUAL SAFETY Store and Retain this Manual 4. Never leave the welder unattended while energised. Turn Retain this manual for the safety warnings and precautions, power off before leaving the welder unattended. assembly, operating, inspection, maintenance and cleaning 5. - Page 15 TIG 200 AC/DC PFC MV OWNER’S MANUAL Welding Safety Instructions & Warnings Personal Safety WARNING! CAUTION Protect yourself and others from possible serious injury or Keep the work area well lit. Make sure there is adequate death. Keep children away. Read the operating/Instruction space surrounding the work area.
- Page 16 TIG 200 AC/DC PFC MV OWNER’S MANUAL Work Environment Safety Electricity Can Kill CAUTION DANGER! Used with the safety alert symbol, indicates a hazardous Touching live electrical parts can cause fatal shocks or situation which, if not avoided, could result in minor or severe burns.
- Page 17 TIG 200 AC/DC PFC MV OWNER’S MANUAL Fumes And Gases 5. Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Shielding ga es used for WARNING! welding can displace air causing injury or death. Be sure the Welding produces fumes and gases.
- Page 18 TIG 200 AC/DC PFC MV OWNER’S MANUAL Fire & Explosive Risks Cylinders WARNING! WARNING! Sparks and spatter fly off from the welding arc. The flying Gas cylinders contain gas under high pressure. If sparks and hot metal, weld spatter, work piece, and hot damaged, a cylinder can explode.
-
Page 19: Warranty
WARRANTY Duralloy Welding Equipment / Plasma Cutting Range 3 year Warranty* The Obligation of Duralloy Industrial Supply under this warranty is limited to the circumstance set out above and is subject to: Duralloy Industrial Supply warrants the original retail purchaser •... - Page 20 | 1300 369 456...
