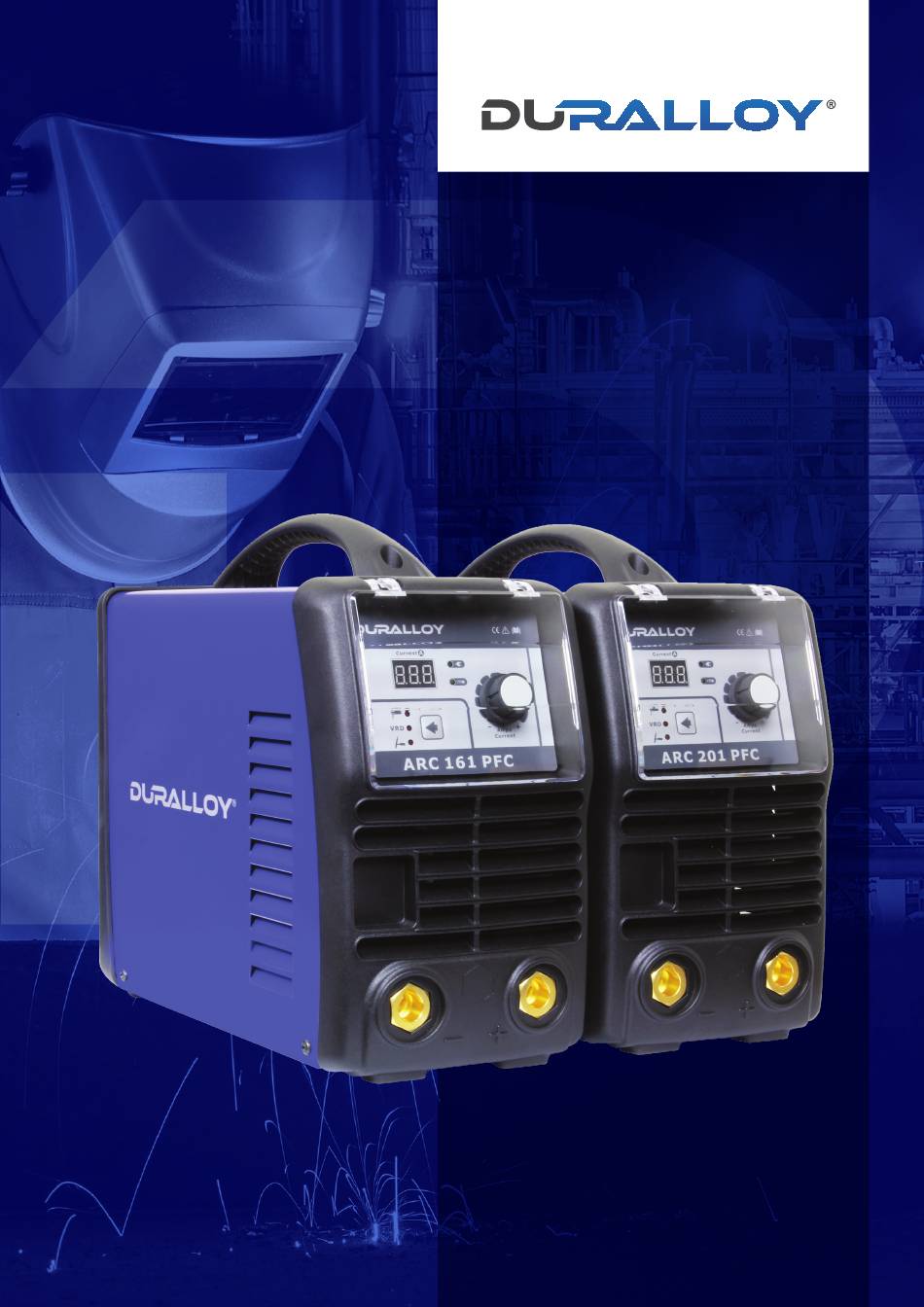

- Page 1 161/201 PFC OWNER’S MANUAL www.duralloy.net.au | 1300 369 456...
- Page 2 Industrial Maintenance & Repairs For industrial welding solutions, check out the DURALLOY at www.duralloy.net.au DURALLOY is a market leading provider of innovative power equipment solutions to a wide range of industries across Australia. Key product categories are; welding equipment, power generators and cleaning equipment.
-
Page 3: Table Of Contents
ARC 161/201 PFC OWNER’S MANUAL CONTENTS Know Your Machine Quick Start Guide Wiring Diagram Care & Maintenance Electrodes Effects of MMA Welding Various Metals Safety Warranty www.duralloy.net.au | 1300 369 456... - Page 4 STICK EN60974-1.2012 3 YEAR WARRANTY SPECIFICATIONS PFC TECHNOLOGY Power Supply 160VAC - 275VAC Most DURALLOY® Welding Machines feature Supply Plug 15 Amps PFC Technology for maximum electrical Frequency 50/60Hz efficiency and consistent weld output. ARC 161 PFC ARC 201 PFC Input Power KW 1-220/230/240kW ±...
-
Page 5: Know Your Machine
The disadvantage of this system is that it makes the striking of the arc more difficult, especially on restarts and with some types of electrode such as low hydrogen electrodes. www.duralloy.net.au | 1300 369 456... -
Page 6: Quick Start Guide
Adequate ventilation is required to provide proper cooling for the 2.4 Connect the machine to suitable mains power using the mains DURALLOY ARC 161/201. Ensure that the machine is placed on a input power lead. Switch the mains power switch to ‘on’ to stable level surface where clean cool air can easily flow through power up the machine. -
Page 7: Wiring Diagram
ARC 161/201 PFC OWNER’S MANUAL WIRING DIAGRAM www.duralloy.net.au | 1300 369 456... -
Page 8: Care & Maintenance
Keep your welding machine in top condition Size of Electrodes The DURALLOY ARC 161/201 PFC does not require any special The electrode size is determined by the thickness of metals maintenance, however the user should take care of the machine... -
Page 9: Effects Of Mma Welding Various Metals
Trouble may also be experienced when welding white-heart malleable, due to the porosity caused by gas held in this type of iron. www.duralloy.net.au | 1300 369 456... -
Page 10: Safety
| 1300 369 456... - Page 11 This will ensure that the Noise from some processes can damage hearing. Use AS/ safety of the power tool is maintained. NZS compliant ear plugs or ear muffs if the noise level is high. www.duralloy.net.au | 1300 369 456...
- Page 12 Arc rays from the welding process produce intense heat and strong ultraviolet rays that can burn eyes and skin. Use the following table to select the appropriate shade number for a Welding Helmet or Welding Face Shield. www.duralloy.net.au | 1300 369 456...
- Page 13 The coatings and any 4. Read the Safety Data Sheets (SDS) and the manufacturer’s metals containing these elements can give of toxic fumes if instruction for the metals, consumables, coatings, and welded. cleaners. www.duralloy.net.au | 1300 369 456...
- Page 14 Chipping and grinding causes flying metal, and as welds cool they can throw off slag. 1. Wear an AS/NZS approved face shield or safety goggles. Side shields are recommended. 2. Wear appropriate safety equipment to protect the skin and body. www.duralloy.net.au | 1300 369 456...
-
Page 15: Warranty
WARRANTY Duralloy Welding Equipment / Plasma Cutting Range 3 year Warranty* The Obligation of Duralloy Industrial Supply under this warranty is limited to the circumstance set out above and is subject to: Duralloy Industrial Supply warrants the original retail purchaser •... - Page 16 | 1300 369 456...
