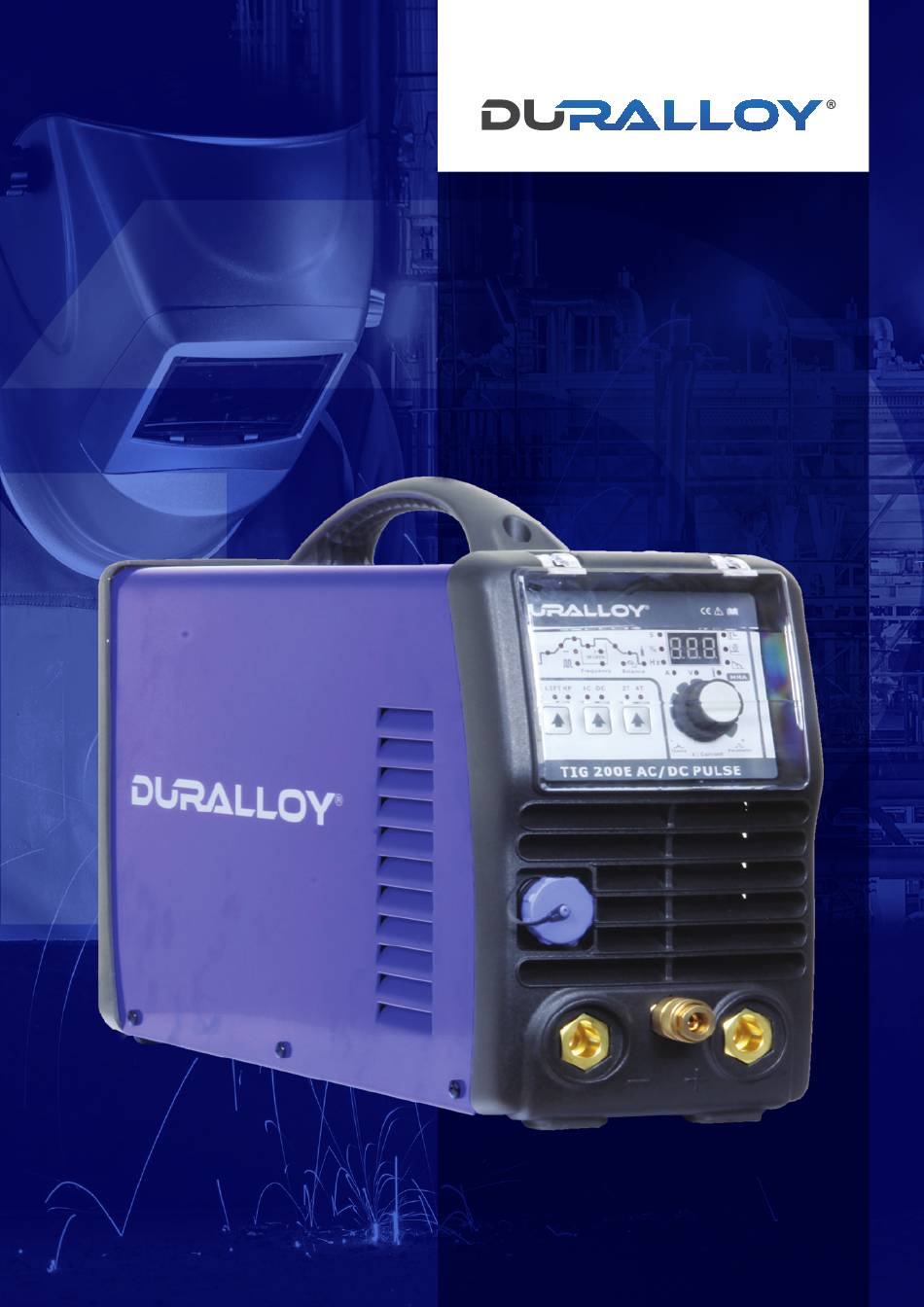

  • Page 1 TIG 200E AC/DC PULSE OWNER’S MANUAL www.duralloy.net.au | 1300 369 456...
  • Page 2 Industrial Maintenance & Repairs For industrial welding solutions, check out the DURALLOY at www.duralloy.net.au DURALLOY is a market leading provider of innovative power equipment solutions to a wide range of industries across Australia. Key product categories are; welding equipment, quality engineering supplies and abrasives.

  • Page 3: Table Of Contents

    TIG 200E AC/DC PULSE OWNER’S MANUAL CONTENTS Know Your Machine Basic Operation Wiring Diagram Care & Maintenance Electrodes Effects of MMA Welding Various Metals Safety Warranty www.duralloy.net.au | 1300 369 456...

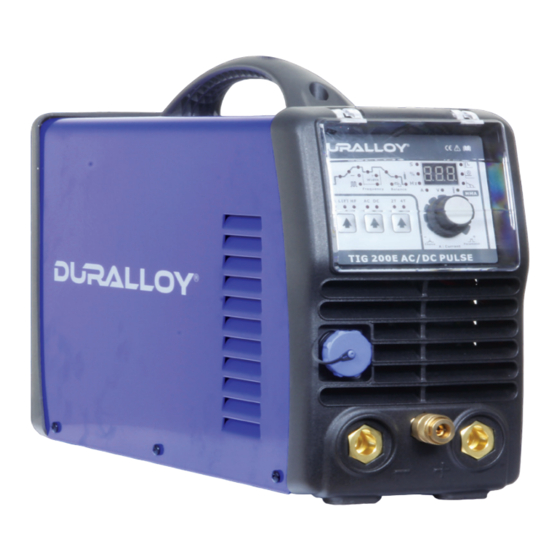

  • Page 4 TIG 200E AC/DC PULSE OWNER’S MANUAL TIG 200E AC/DC PULSE 240V AC/DC TIG Inverter Welding Machine PART NO: DA200EACDC STICK 3 YEAR EN60974-1.2012 WARRANTY SPECIFICATIONS DIGITAL DISPLAY Power Supply 1-220/230/240 ± 10% Variable amperage control with digital meters Frequency 50/60Hz...

  • Page 5: Know Your Machine

    TIG 200E AC/DC PULSE OWNER’S MANUAL KNOW YOUR MACHINE More detailed explanations of function on following pages. 1. Positive terminal (+) welding power output connection socket. 2. TIG torch gas connector. 3. Negative terminal (-) welding power output connection socket.
  • Page 6 The gradually over the time selected up to the set main welding DURALLOY TIG 200E AC/DC PULSE also has more advanced current (33). current controls that can be used in 4T mode.
  • Page 7 50%, the time period of the peak current and base current pulse is equal. Higher pulse duty setting will give greater heat input, while The DURALLOY TIG 200E AC/DC PULSE can accept remote lower pulse duty will have the opposite effect.

  • Page 8: Basic Operation

    Re-check regulator flow pressure The DURALLOY TIG 200E AC/DC PULSE has electrical with the torch triggered as static gas flow setting may drop components and control circuit boards which may be damaged once gas is flowing.

  • Page 9: Wiring Diagram

    TIG 200E AC/DC PULSE OWNER’S MANUAL WIRING DIAGRAM www.duralloy.net.au | 1300 369 456...

  • Page 10: Care & Maintenance

    Keep your welding machine in top condition Size of Electrodes The DURALLOY TIG 200E AC/DC PULSE does not require any The electrode size is determined by the thickness of metals special maintenance, however the user should take care of the...

  • Page 11: Effects Of Mma Welding Various Metals

    TIG 200E AC/DC PULSE OWNER’S MANUAL EFFECTS OF MMA WELDING VARIOUS MATERIALS High Tensile and Alloy Steels The two most prominent effects of welding these steels are the formation of a hardened zone in the weld area, and, if suitable precautions are not taken, the occurrence in this zone of under- bead cracks.

  • Page 12: Safety

    TIG 200E AC/DC PULSE OWNER’S MANUAL SAFETY Store and Retain this Manual 4. Never leave the welder unattended while energised. Turn Retain this manual for the safety warnings and precautions, power off before leaving the welder unattended. assembly, operating, inspection, maintenance and cleaning 5.
  • Page 13 TIG 200E AC/DC PULSE OWNER’S MANUAL Welding Safety Instructions & Warnings Personal Safety WARNING! CAUTION Protect yourself and others from possible serious injury or Keep the work area well lit. Make sure there is adequate death. Keep children away. Read the operating/Instruction space surrounding the work area.
  • Page 14 TIG 200E AC/DC PULSE OWNER’S MANUAL Work Environment Safety Electricity Can Kill CAUTION DANGER! Used with the safety alert symbol, indicates a hazardous Touching live electrical parts can cause fatal shocks or situation which, if not avoided, could result in minor or severe burns.
  • Page 15 TIG 200E AC/DC PULSE OWNER’S MANUAL Fumes And Gases 5. Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Shielding ga es used for WARNING! welding can displace air causing injury or death. Be sure the Welding produces fumes and gases.
  • Page 16 TIG 200E AC/DC PULSE OWNER’S MANUAL Fire & Explosive Risks Cylinders WARNING! WARNING! Sparks and spatter fly off from the welding arc. The flying Gas cylinders contain gas under high pressure. If sparks and hot metal, weld spatter, work piece, and hot damaged, a cylinder can explode.

  • Page 17: Warranty

    WARRANTY Duralloy Welding Equipment / Plasma Cutting Range 3 year Warranty* The Obligation of Duralloy Industrial Supply under this warranty is limited to the circumstance set out above and is subject to: Duralloy Industrial Supply warrants the original retail purchaser •...
  • Page 18 TIG 200E AC/DC PULSE OWNER’S MANUAL www.duralloy.net.au | 1300 369 456...
  • Page 19 TIG 200E AC/DC PULSE OWNER’S MANUAL www.duralloy.net.au | 1300 369 456...
  • Page 20 | 1300 369 456...
