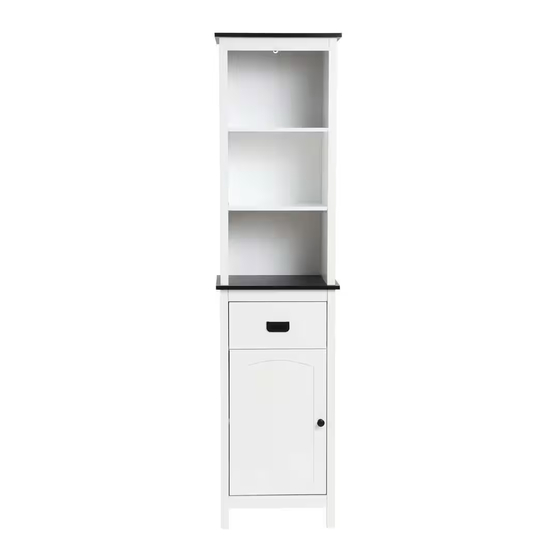

White Wood 63-Inch Tower Bathroom Cabinet
Product Name:
SKU #:
WHIF1670
Thank you for purchasing this Luxen H
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.

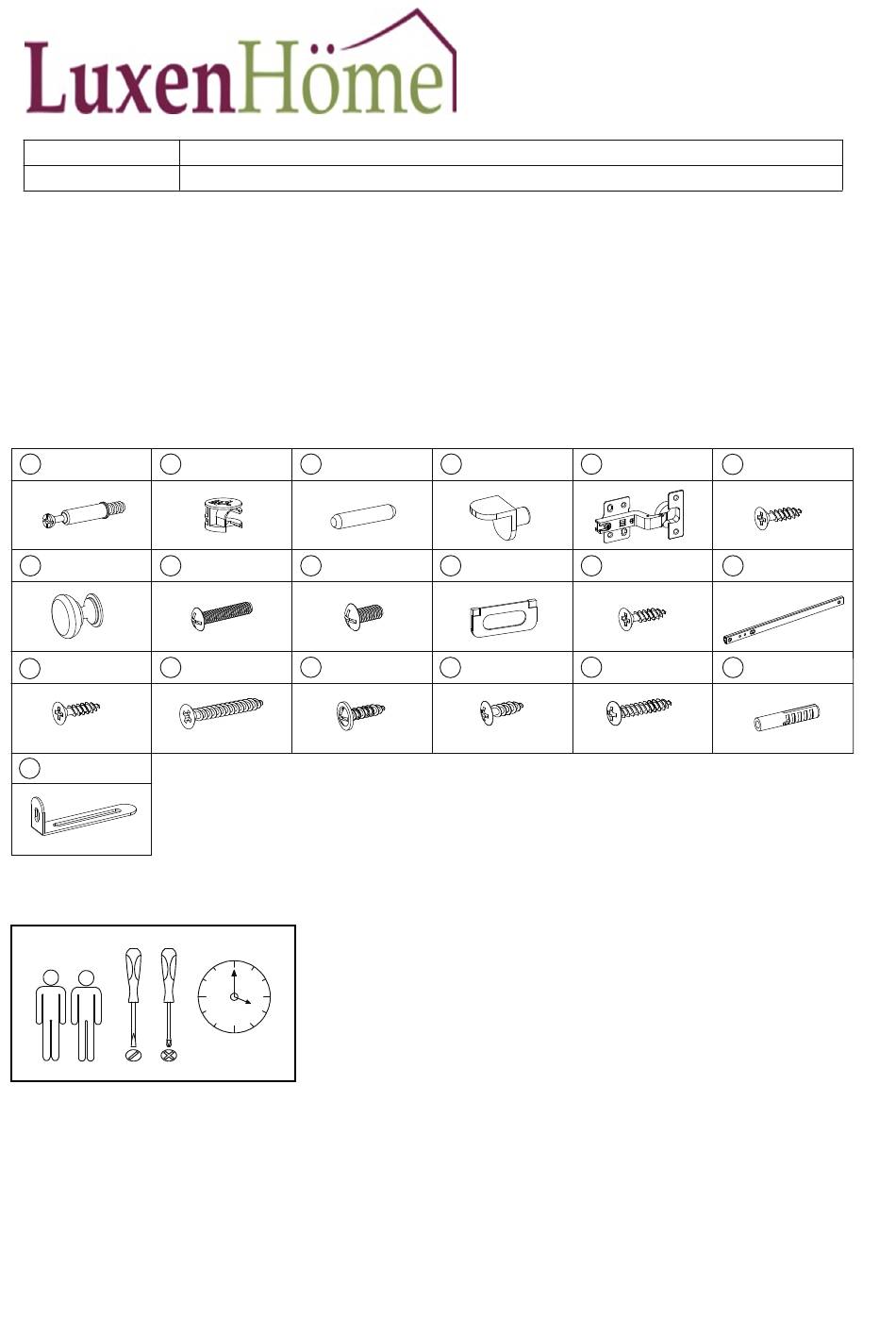

Hardware:
1 ×22
2 ×22
7 ×1
8 ×1
14 ×8
13 ×6
M3*12
19 ×1
Tools required for assembly: Philips screwdriver and Flathead Screwdriver (if using power tools, use with care)
ome
product. This product has been manufactured with the highest
3 ×34
9 ×2
M4*16
M4*10
15 ×26
M4*35
M2.5*10
1:00
Please save this manual for future reference.
4 ×8
5 ×2
10 ×1
11 ×2
16 ×1
17 ×1
M4*10
Instruction Manual
6 ×12
M4*12
12 ×2
M4*12 Black
18
×1
M4*30
Advertisement
Related Manuals for LuxenHome WHIF1670
Summary of Contents for LuxenHome WHIF1670
- Page 1 Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: SKU #: WHIF1670 Thank you for purchasing this Luxen H product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
- Page 2 Instruction Manual Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: SKU #: WHIF1670 Panels:...
- Page 3 Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: WHIF1670 SKU #: Make sure the pins are installed correctly as shown with the “check mark” below: Below shows how the pins are used to assemble the panels together.
- Page 4 Instruction Manual Please save this manual for future reference. Product Name: White Wood 63-Inch Tower Bathroom Cabinet WHIF1670 SKU #: Step 2 Insert wood plug (3) to front rail D & shelf E as shown, 2 ×4 Assemble E & D to Upper side panels B & C, then Insert cam lock (2) and tighten.
- Page 5 Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: SKU #: WHIF1670 Step 3 1 ×4 Screw cam bolt (1) to shelf H as shown. Insert wood plug (3) to Upper side panels B & C. Attach shelf H to unit with screws (14).
- Page 6 Instruction Manual Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: SKU #: WHIF1670 1 ×4 2 ×4 3 ×4 16 ×1 19 ×1 Step 4 Fix Hanger bracket (19) onto top panel A with screw (16). Screw cam bolt (1) to A Insert wood plug (3) to Upper side panels B &...
- Page 7 Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: SKU #: WHIF1670 Step 5 1 ×6 Screw cam bolt (1) to Lower side panel I & J. Fix slider (12) onto I & J with screw (13), Please screw in the correct holes as shown.
- Page 8 Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: SKU #: WHIF1670 Step 6 2 ×6 Insert wood plug (3) to rail D,N & bottom panel M as shown. Assemble D, N & M to Lower side panel I & J. then Insert cam lock (2) and tighten.
- Page 9 Instruction Manual Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: SKU #: WHIF1670 2 ×4 3 ×4 15 ×26 Step 7 Insert wood plug (3) to Lower side panel I & J. Assemble Upper unit B&C and Lower unit(I&J) together as shown, then Insert cam lock (2) and tighten.
- Page 10 Instruction Manual Please save this manual for future reference. White Wood 63-Inch Tower Bathroom Cabinet Product Name: SKU #: WHIF1670 Step 8 4 ×8 Insert layer supports (4) into the side panels. Put adjustable shelves F & L into place.
- Page 11 Instruction Manual Please save this manual for future reference. Product Name: White Wood 63-Inch Tower Bathroom Cabinet SKU #: WHIF1670 1 ×4 2 ×4 10 ×1 11 ×2 14 ×4 Step 9 Screw cam bolt (1) to drawer front S.
- Page 12 Instruction Manual Please save this manual for future reference. Product Name: White Wood 63-Inch Tower Bathroom Cabinet SKU #: WHIF1670 Step 10 9 ×2 Fix the drawer to cabinet with bolt (9).
- Page 13 Please save this manual for future reference. Product Name: White Wood 63-Inch Tower Bathroom Cabinet SKU #: WHIF1670 Step 11 5 ×2 Assemble the hinges (5) to door T with screws (6), Fix handle (7) to T with bolt (8).
- Page 14 Instruction Manual Please save this manual for future reference. Product Name: White Wood 63-Inch Tower Bathroom Cabinet SKU #: WHIF1670 Step 12 6 ×8 Assemble the door to the cabinet with screw (6).
- Page 15 Please save this manual for future reference. Product Name: White Wood 63-Inch Tower Bathroom Cabinet SKU #: WHIF1670 Step 13 17 ×1 Draw a loaction hole on Wall. Drill a hole on the wall to input wall plug (18) , Fix the cabinet to wall with screw (17) as shown.
