Summary of Contents for Dormakaba TS93 PT Series

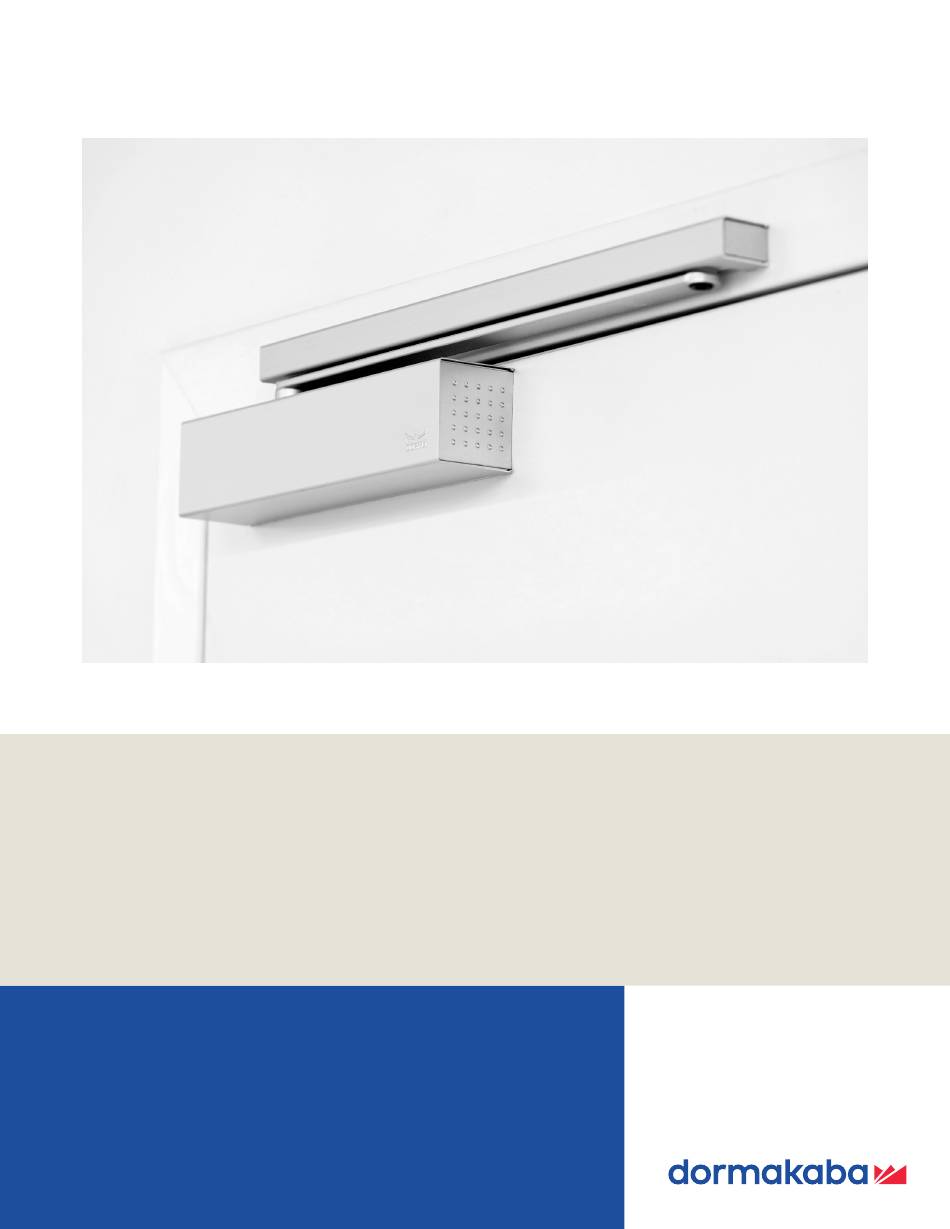

- Page 1 TS93 PT/PTH Surface Applied Closer Push side track mount with dead stop (PT) Optional hold open(PTH) Installation instructions 08279211 – 08-2019 | EN |...
-
Page 2: Table Of Contents
TS93 PT/PTH Installation Instructions Table of Contents Table of contents 1 Technical specifications Overview Size selection chart Tools recommended Surface closer system Handing the door Installation instructions Installing the back plate and angle bracket Installing the surface closer Installing main arm... -
Page 3: Technical Specifications
TS93 PT/PTH Installation Instructions Technical specifications 1 Technical specifications Overview Caution: sex nuts are required for attachment Arrows on closer mounting plate point upward. of components to unreinforced doors and to Follow included template to properly prepare wood or plastic faced composite type fire doors,... -
Page 4: Surface Closer System
TS93 PT/PTH Installation Instructions Surface closer system Handing the door 1.4 Surface closer system Fig.1 The surface closer is comprised of the following components. Closer cover Closer body: "G" body Closer end covers Main arm Track cover Track assembly... -
Page 5: Installation Instructions
TS93 PT/PTH Installation Instructions Installing back plate and angle bracket Installing surface closer Installing main arm Installation instructions 2.1 Installing the back plate and angle bracket Fig.3 Left hand door NOTE: Ensure arrows point Backplate Angle bracket in direction of arm location. -
Page 6: Installing Track Assembly
TS93 PT/PTH Installation Instructions Installing track assembly Secure main arm 2.4 Installing track assembly Fig.6 HINGE Left hand door - No hold open Dead stop Hold open Cushion Hold open Track Slide Cushion adjustable mechanism protector slide shoe block... -
Page 7: Adjustments
TS93 PT/PTH Installation Instructions Adjust closing speeds Adjust hold open Adjustments Confirm closer spring size prior to making any Maximum opening angle is 110º. closing speed adjustments. Door should close in 3 to 6 seconds from 90º. Do not back valve heads out beyond closer casting. -
Page 8: Adjust Spring Force
TS93 PT/PTH Installation Instructions Adjust spring force Secure covers 3.3 Adjust spring force Fig.10 TS9315 Increase NOTE: Supplied with a size 2 spring setting. Barrier free openings: Take an opening force reading Decrease from the pull on the door. If required, adjust the spring force to meet the barrier-free requirement. - Page 9 DORMA USA, Inc. 1 Dorma Drive, Drawer AC Reamstown, PA 17567 T: 717-336-3881 F: 717-336-2106 www.dormakaba.com...
