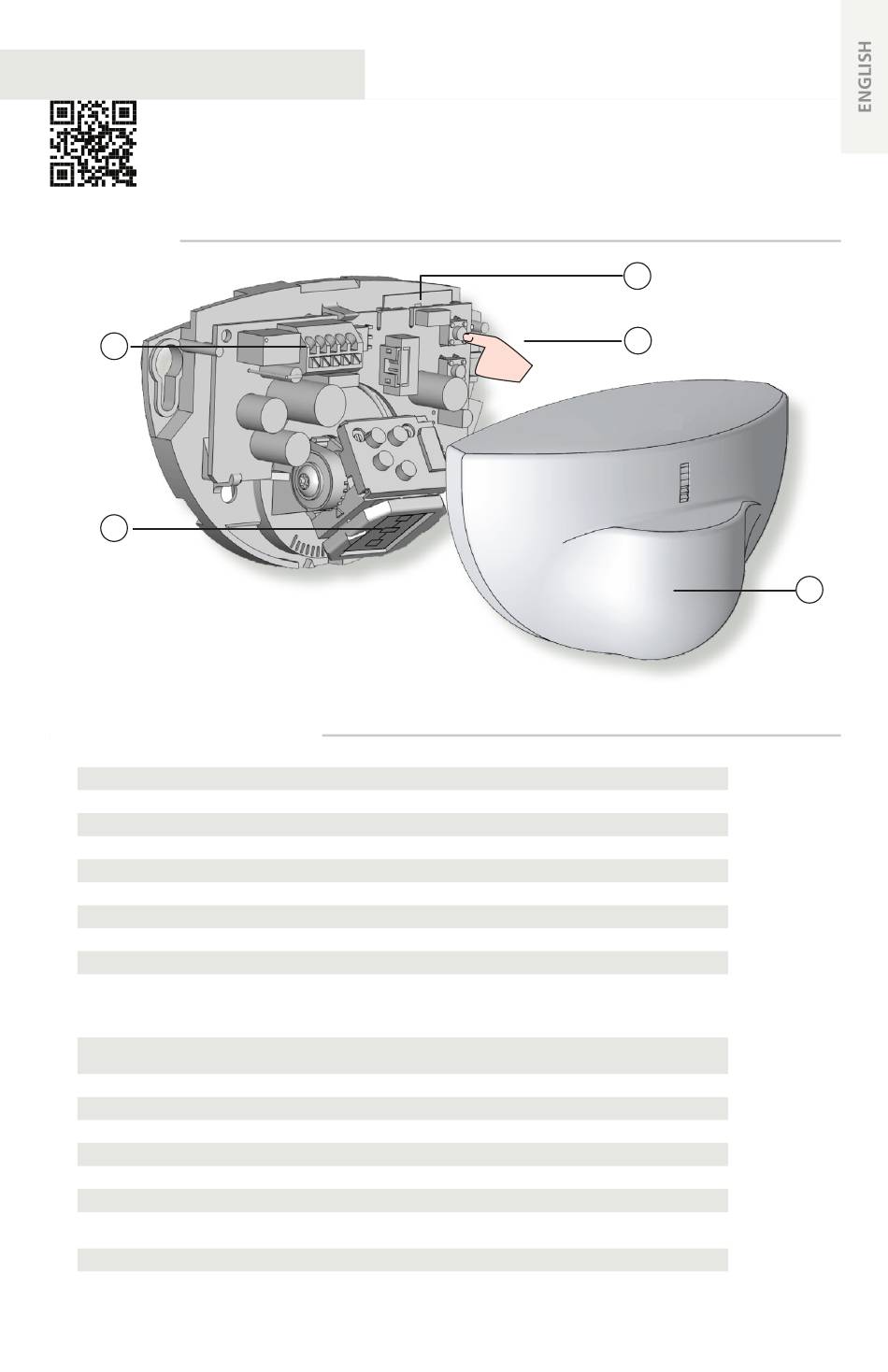

DESCRIPTION
1
2
1. main connector
2. wide zone antenna (Eagle only)
3. narrow zone antenna (optional for Eagle, default for Eagle HM)
4. push buttons
5. cover
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Min. detection speed:
Supply voltage:
Mains frequency:
Max power consumption:
Output:
max. contact voltage:
max. contact current:
max. switching power:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Material:
Weight:
Cable length:
Norm conformity:
75.5957.02 EAGLE FAMILY 20181130
microwave and microprocessor
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
2 in/s
12 – 24 VAC ±10%; 12 – 24 VDC +30% / -10%
50 – 60 Hz
< 2 W
relay (free of potential changeover contact)
42V AC/DC
1A (resistive)
30W (DC) / 60VA (AC)
Eagle: 6' – 13'
Eagle HM: 10' − 16'6"
IP54
-4 – 131 °F
4.7" (L) × 3.1" (H) × 2.0" (W)
0 – 90° vertical; -30 – 30° lateral
ABS
7.6 oz
Eagle: 8'
Eagle HM: 30'
R&TTE 1999/5/EC, LVD 2006/95/EC, RoHS 2 2011/65/EU
Specifications are subject to change without prior notice.
All values measured in specific conditions.
EAGLE & EAGLE HM
Unidirectional activation sensor for automatic,
pedestrian doors and high-mount doors
The image shown here is a standard Eagle.
Antennae differ between the standard and high-mount versions of the Eagle.
3
4
Page 1 of 4
5
Advertisement
Table of Contents
Related Manuals for BEA Eagle
Summary of Contents for BEA Eagle
-
Page 1: Technical Specifications
DESCRIPTION 1. main connector 2. wide zone antenna (Eagle only) 3. narrow zone antenna (optional for Eagle, default for Eagle HM) 4. push buttons The image shown here is a standard Eagle. 5. cover Antennae differ between the standard and high-mount versions of the Eagle. - Page 2 How to Open the Sensor: BEFORE MOUNTING AFTER MOUNTING MOUNTING & WIRING If using EAGLE SPACER or EAGLE SPACER V, please refer to User’s Guide 75.5981 before beginning. Apply the mounting template. Connect the wires accordingly: Position the cable as indicated.
- Page 3 MECHANICAL ADJUSTMENTS (cont.) If desired, adjust the antenna angle (laterally and/or vertically) to position the detection field. When mounting at the maximum height, BEA recommends a 15° tilt angle. Observe antenna type (narrow or wide) in the illustrations below. LATERAL ADJUSTMENT...
-
Page 4: Troubleshooting
BEA strongly recommends that installation and service technicians be AAADM-certifi ed for pedestrian doors, IDA-certifi ed for doors/gates, and factory- trained for the type of door/gate system.
