BEA EAGLE ONE HM User Manual

User's Guide for product version 0600 and higher
See product label for serial number

DESCRIPTION

1
2

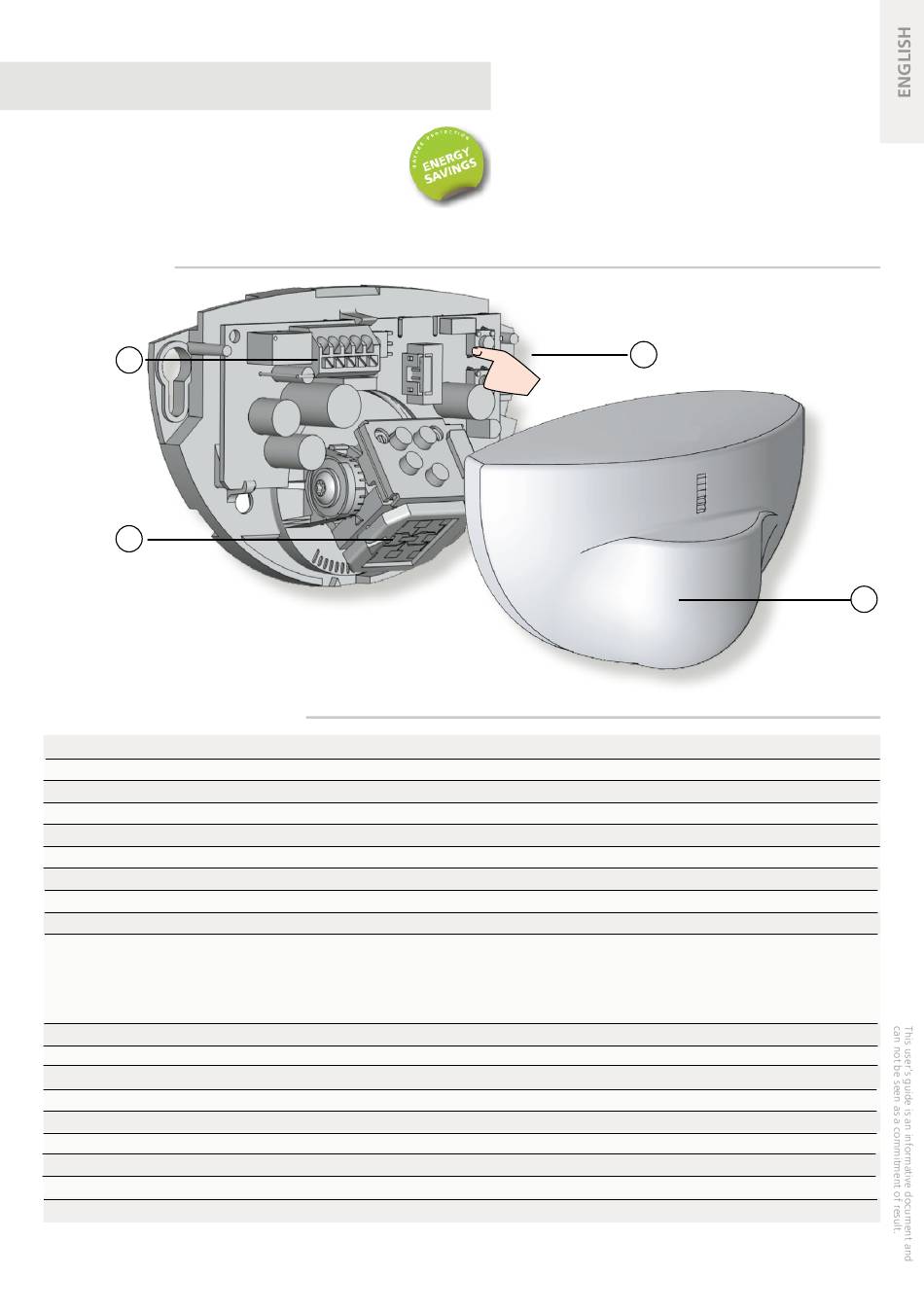

1. main connector
2. antenna
3. push buttons
4. cover

TECHNICAL SPECIFICATIONS

Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Min. detection speed:
Supply voltage:
Mains frequency:
Max power consumption:
Output:
Max. contact voltage:
Max. contact current:
Max. switching power:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
Material:
Weight:
Cable lenght:
Conformity:
* Other use of the device outside of the permitted purpose can not be guaranteed by the manufacturer.
microwave and microprocessor
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
5 cm/s
12V to 24V AC ±10%; 12V to 24V DC +30% / -10%
50 to 60 Hz
< 2 W
relay (free of potential change-over contact)
42V AC/DC
1A (resistive)
30W (DC) / 60VA (AC)
from 4 m to 5 m
IP54
from -20 °C to + 55 °C
120 mm (L) x 80 mm (H) x 50 mm (W)
0° to 90° vertical; -30° to +30° lateral
ABS
215 g
2.5 m
RED 2014/53/EU, RoHS 2 2011/65/EU
EAGLE ONE HM
UNIDIRECTIONAL OPENING SENSOR
FOR HIGH MOUNTING ON AUTOMATIC DOORS*
3
Specifications are subject to changes without prior notice.
4
Measured in specific conditions.
