Summary of Contents for Arneg Arles TCBM

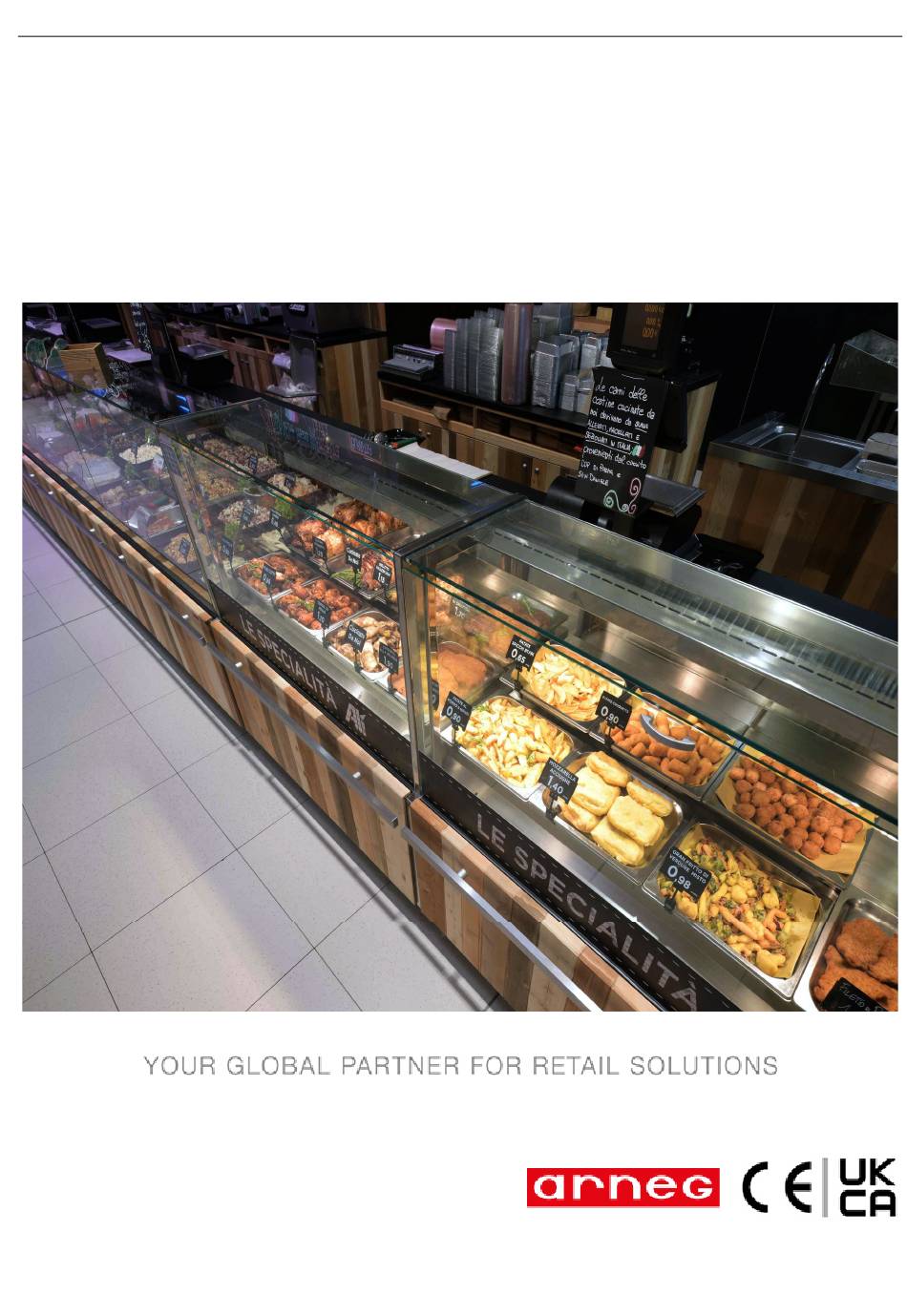

- Page 1 Hot cases Hot cases Manuale uso e manutenzione - Original Use and maintenance manual IMPORTANT: Carefully read before use. Keep in store for future use.
-
Page 3: Table Of Contents
Hot cases English 1. Documents attached to the counter ......................3 2. Safety messages ............................3 3. Safety labels .............................. 3 4. Personal protective equipment ........................ 3 5. Safety instructions ............................ 4 5.1 For the counter ..........................4 5.2 For the goods ..........................5 5.3 For the environment ........................ - Page 4 Hot cases English 05060211 00 05-2024...
-
Page 5: Documents Attached To The Counter
Wiring diagrams Channel combination Kit Declaration of Conformity To download the manual, go to www.arneg.com and click on "Download” in the top left corner To find the information available on the European database EPREL : go to www.arneg.com ... -
Page 6: Safety Instructions
Carefully read the manual to find out how to avoid accidents and use the counter correctly WARNING! Any other use or modification that is not indicated in this manual or not authorized by Arneg SpA are dangerous, void the warranty and the declaration of conformity provided for by the Machinery Regulation (EU) 2023/1230. -
Page 7: For The Goods
Hot cases English 5.2 For the goods Requirements Prohibitions load the counter so that the longest DO NOT introduce: foodstuff different from that indicated displayed goods are sold before the drugs newly received goods (stock rotation) load the counter in order observing ... - Page 8 Hot cases English WARNING! DANGER! Spillage of hot liquid. Burns. Live parts. Electric shock. DO NOT fill containers up to the brim. DO NOT use/touch the counter with wet or damp hands or feet. CAUTION! Damage to the counter, injuries. COOLING FOODSTUFF.
-
Page 9: Hot Surfaces
Hot cases English 5.5 Hot surfaces Requirements Prohibitions work with caution and diligence. DANGER! HOT SURFACES. BURNS always use the PPE (personal protective DO NOT touch the hot parts with bare hands. equipment) provided for and suitable for hot DO NOT place combustible substances on surfaces ... -
Page 10: Counter Presentation, Intended Use
the original language of the manual is Italian, which is the only official language Arneg S.p.A. is not responsible for translations into other languages that do not respect the original meaning the contents of this manual represent the state of the art and technology used to manufacture the cold room that were valid at the time the cold room described was placed on the market;... - Page 11 Hot cases English For additional technical details, consult our sales offices. Responsibility The Customer or employer assumes full responsibility regarding the qualification and mental and/or physical state of the employees assigned to use and service the counter. 05060211 00 05-2024...
- Page 12 Hot cases English 05060211 00 05-2024...
-
Page 13: Declaration Of Conformity
“ EU conformity . Enter the e-mail address and the serial number which you can find on the energy label attached to the counter or on the serial plate attached to the counter. -
Page 14: Identification, Rating Plate
Hot cases English 10. Identification, rating plate name place/name of the manufacturer description of the counter code of the counter serial number of the counter supply voltage month and year of manufacture heating capacity lighting power (if present) protection class against solids and liquids QR code operating current consumption electrical power input... -
Page 15: Storage - Qualified Operator
Hot cases English Features of the Use a forklift truck: with suitable specifications in compliance with applicable standards forklift NOT worn or damaged manual or electrical suitable for lifting the counter, with a nominal capacity greater than or equal to 1000 kg ... - Page 16 Hot cases English It is the responsibility of the customer to prepare the installation area Changes to the set-up described here must be authorised by ARNEG S.p.A. packaging included: wooden frame secured to the base and nylon cover ...
-
Page 17: Electrical Connection - Refrigeration Technician
Manufacturer ARNEG declines all liability towards users or third parties for: damage caused by malfunctions of the systems placed upstream of the counter damage caused to the counter by malfunctions of the... -
Page 18: Hydraulic Connection - Refrigeration Technician
Hot cases English inform the operator of the position of the switches so that they can be reached immediately in the event of an EMERGENCY. The systems must be set up in accordance to the regulations that regulate manufacture, installation, use, and maintenance foreseen by the norm in force in the country where the refrigeration system is installed. -
Page 19: Prepare And Turn On The Counter
Hot cases English The heating lamps maintain the temperature of the goods. The power switch is located on the control panel at the back of the counter. The screen of the lamps is, however, designed to protect the operator from direct irradiation. Replace any damaged or worn lamps with identical ones. -
Page 20: Tcpw - Dry Hot Table
Hot cases English Set switch 7 to position I , the counter begins to fill with water. When the water reaches the set level filling stops automatically. The I position of the switch allows for automatic water filling. 1. set switch 7 to position O , water 3. -
Page 21: Tcpi - Hot Table For Cooking
Hot cases English Description Function Main switch Counter electric power supply Heating lamps switch Activates the heating of the lamps Light switch Activates the lighting in the counter Heated surface switch - Activates the heating of the surface optional Surface temperature alarm If on, it indicates that the high temperature protection thermostat light has tripped... -
Page 22: Demisting System (If Present)
Hot cases English Line If on, it indicates that the counter is in operation Hotplate switch Adjust the temperature of the hotplate Ceiling lighting Turn on the light 19. Demisting system (if present) Some models are equipped with fans to prevent the formation of condensation on the front glass. Activate the fans only if condensation occurs. -
Page 23: Cleaning The Counter
Hot cases English By changing the position of the steel supports, several compositions re available. WARNING! TCBM (bain-marie): the trays MUST NOT come into contact with the water. TCPW (pie-warmer): the trays MUST NOT come into contact with the heating element. TCOM (medium wave): Gastronorm trays are NOT suitable for this model. -
Page 24: Cleaning Products
Hot cases English Protect the hands with work gloves The products will deteriorate due to germs and bacteria. Compliance with Hygiene Standards and the cold chain is indispensable to guarantee the protection of consumer health. The cleaning operations must include: Step Name Description... -
Page 25: Cleaning The External Parts (Daily/Weekly)
Hot cases English CAUTION! Fragile surfaces, glass. Dents, scratches, corrosion, wounds, broken glass DO NOT aim the jet directly at the varnished or plasticised surfaces DO NOT apply the detergents directly onto the surfaces to be cleaned DO NOT use steam cleaning equipment Do not use excessive force avoid detergents from coming into contact with nearby products. -
Page 26: Cleaning The Stainless Steel
Hot cases English use a soft cloth with a neutral detergent or soap Aluminium DO NOT use acid or alkaline detergents (e.g. bleach) which could and lukewarm water (max 30°C) immediately remove all traces of water or corrode the surfaces DO NOT use rough or abrasive detergent using a dry cloth in order to prevent materials or metal scrapers that... -
Page 27: Inspect The Parts
Hot cases English WARNING! This intervention may however cause scratches to the surfaces due to the abrasive cleaning method. DO NOT use hydrochloric acid on stainless steel surfaces Carefully follow the sanitising, rinsing and drying procedures to prevent the proliferation of harmful bacteria. -
Page 28: Warranty
replace the parts before they are excessively worn to avoid damage to people or property carry out scheduled maintenance as provided in the agreement The spare parts catalogue can be found at this address: https://globalassistance.arneg.it/ 26. Troubleshooting DANGER! Live parts. - Page 29 In all cases not described or where it is not possible to solve the problem by following these instructions, call the nearest authorised service centre. the assembly instructions, after registration, are available at this address: https://globalassistance.arneg.it 05060211 00 05-2024...
- Page 30 ARNEG S.p.A. 35010 Campo san Martino (PD) Italy - Tel. +39 049 9699333 - www.arneg.it...
