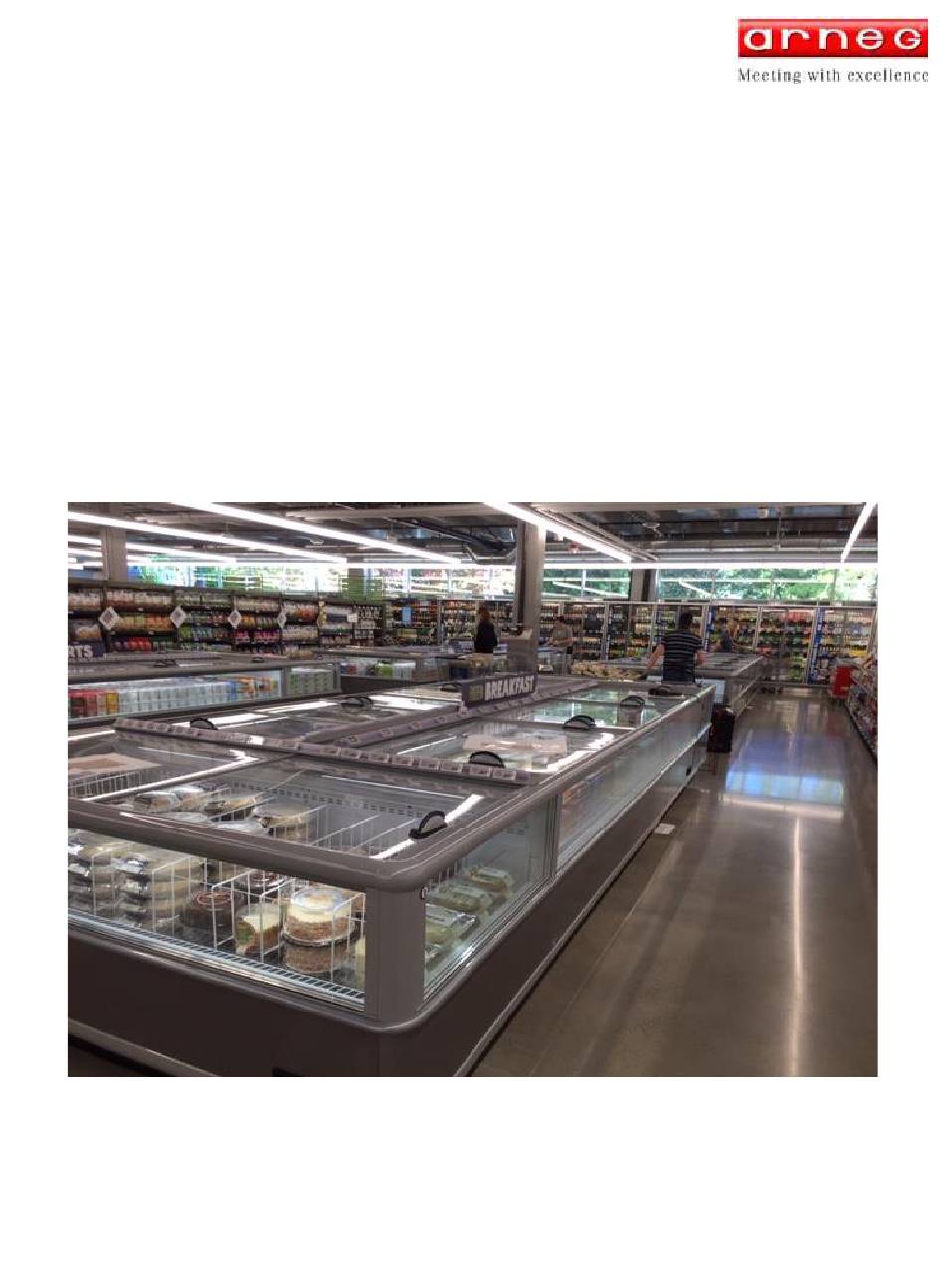

- Page 1 INSTALLATION AND OPERATIONS MANUAL TORONTO Refrigerated Display Island Arneg USA - Lexington, NC TORONTO...
-
Page 2: Table Of Contents
Receipt and First Inspection First Cleaning Installation and Environmental Conditions Electrical Connection Temperature Control Loading the Cabinet Defrosting and Water Draining Glass Condensation Night Curtains Multiplexing of Cabinets Maintenance and Cleaning Dismantling the Cabinet Useful Advice Arneg USA - Lexington, NC TORONTO... -
Page 3: Introduction - Scope Of The Manual
Case Models Covered by this Manual The Toronto refrigerated case is a island display case with and remote refrigeration, suitable for the storage and self-service sale of ice cream, frozen foods, or at medium temperature for meat, dairy products. -
Page 4: Identification - Nameplate
(3) days following delivery. The consignee for all damages must file a claim with the carrier. NOTE: All claims for shortages must be within 10 days after receipt of shipment. Arneg USA - Lexington, NC TORONTO... -
Page 5: First Cleaning
Failure to properly install electrical wiring and control wiring as per wiring diagram(s), defrost settings, and temperature set-points may result in operational issues such as: • increased BTUH load, high product temperature, coil icing, product frosting, and external condensation. Arneg USA - Lexington, NC TORONTO... -
Page 6: Electrical Connection
The arrangement of the stock, without empty spaces, guarantees the best functioning of the case. • Do not load product above the air current. • Do not block the air return or supply areas with product, signage, display items, etc. Arneg USA - Lexington, NC TORONTO... -
Page 7: Defrosting And Water Draining
• Never place objects on the return air grill. 11. Defrosting and Water Draining The Toronto line of refrigerated cases is equipped with an off-cycle, Hot Gas or Electric defrosting system. • For the evacuation of the defrosting water it is necessary to provide suitable drainage per any local and national codes. - Page 8 4. Level the case front to back and left to right using shims under each leg as necessary. 5. Apply silicone along the whole perimeter of the case. 6. Following the illustration above, and on the following page, insert the alignment pins as the cases are bolted together. Arneg USA - Lexington, NC TORONTO...
- Page 9 TORONTO Multiplexing Illustrations Arneg USA - Lexington, NC TORONTO...
- Page 10 MULTIPLEXING KIT ITEM NUMBER NAME ARNEG PART # M4 X 60 PIN 24131095 BOLT 1 X 5/16 24701095 BOLT 5/16 X 3 24701101 NUT 5/16 24701602 WASHER 24701165 6MM ALLEN BOLT 04711098 6MM NUT 04230400 Arneg USA - Lexington, NC TORONTO...
-
Page 11: Maintenance And Cleaning
Once the cleaning operations are finished, reinstall the removable elements (naturally dried) and switch the electrical power supply back on. Once the internal working temperature has been reached, it is possible to reload the case with the products to be displayed. Arneg USA - Lexington, NC TORONTO... -
Page 12: Useful Advice
(not even partially) with stock, labels, accessories or anything else. • Only place stock into the case which is already cooled to the temperature which normally characterizes the cold chain. Verify that the cabinet is always able to maintain that temperature. Arneg USA - Lexington, NC TORONTO... - Page 13 FLAMES BUT ONLY DRY CHEMICAL EXTINGUISHERS. ALL OTHER USES NOT EXPLICITLY INDICATED IN THIS MANUAL ARE CONSIDERED DANGEROUS AND THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR EVENTUAL DAMAGE RESULTING FROM IMPROPER, ERRONEOUS OR UNREASONABLE USE Arneg USA - Lexington, NC TORONTO...
- Page 14 We reserve the right to change our technical specifications without notice. This brochure may not be reproduced, nor its contents disclosed to third parties without Arneg’s consent, and it is meant only for use by our customers. Photographs included in this publication are merely representative and in any case are not to be considered as binding.
