Summary of Contents for Arneg BILBAO

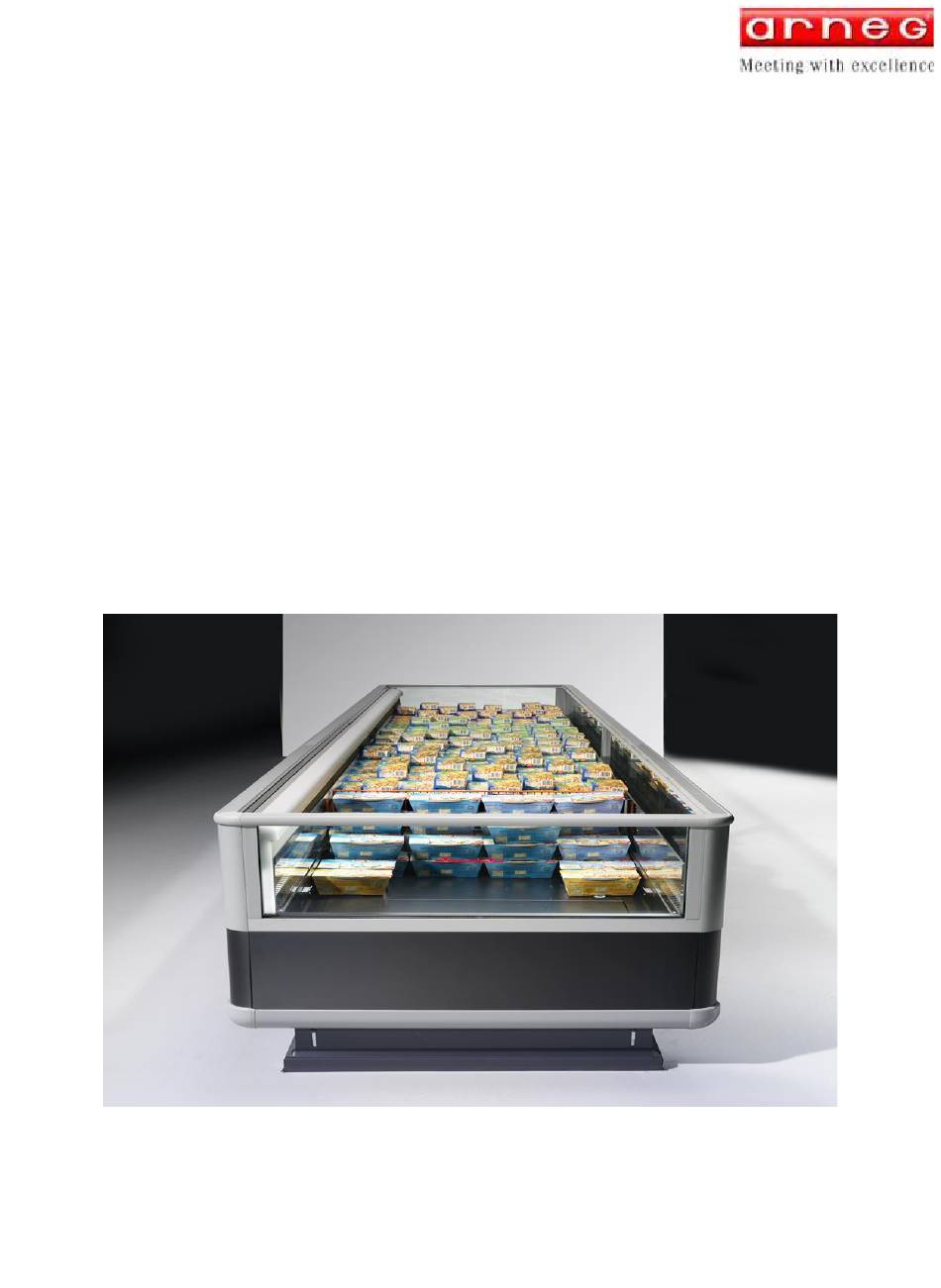

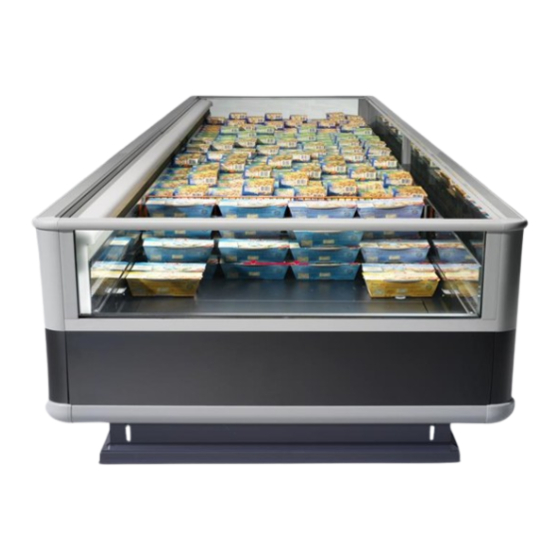

- Page 1 INSTALLATION AND OPERATIONS MANUAL Bilbao & Super Bilbao Refrigerated Display Island Arneg USA - Lexington, NC BILBAO & SUPER BILBAO ISLAND...
-
Page 2: Table Of Contents
BILBAO & SUPER BILBAO Installation and Operations Manual INDEX Introduction - Scope of the Manual Cabinets Covered by This Manual Norms and Certifications Identification – Nameplate Receipt and First Inspection First Cleaning Installation and Environmental Conditions Electrical Connection & Temp Control... -
Page 3: Introduction - Scope Of The Manual
Case Models Covered by this Manual The Bilbao & Super Bilbao refrigerated cases are a island display cabinet with and remote refrigeration, suitable for the storage and self-service sale of ice cream, frozen foods, or at medium temperature for meat, dairy products. -
Page 4: Identification - Nameplate
BILBAO & SUPER BILBAO 4. Identification - Nameplate On the inside left of the case there is a data plate with the following characteristics. 1. Manufacturer’s name and address 2. Name and length of the case 3. Case serial number 4. -
Page 5: First Cleaning
BILBAO & SUPER BILBAO First Cleaning • Proceed with a first cleaning using neutral products, dry with a soft cloth, do not use abrasive substances or metal sponges, • DO NOT use alcohol to clean parts in plexi-glass. Installation and Environmental Conditions For installation, follow the instructions below: •... -
Page 6: Electrical Connection & Temp Control
BILBAO & SUPER BILBAO Electrical Connection • CAUTION: Install no more than 3 cases on the same electrical and refrigerating power supply line. • The electrical system must be earth grounded. • Check first-of-all that the power voltage is that indicated on the rating •... -
Page 7: Defrosting And Water Draining
• Never place objects on the return air grill. 11. Defrosting and Water Draining The Bilbao & Super Bilbao line of refrigerated cases is equipped with an off-cycle, Hot Gas or Electric defrosting system. • For the evacuation of the defrosting water it is necessary to provide suitable drainage per any local and national codes. -
Page 8: Multiplexing Of Cabinets
BILBAO & SUPER BILBAO 14. Cabinet Multiplexing 1. Remove any wooden or other frame used for shipment. 2. Bring the cases close to each other, ensuring that the channel points line up 3. NOTE: BEFORE PROPER LEVELING ALL THE CASES THE HIGHEST POINT OF THE FLOOR MUST BE DETERMINED AS THE STARTING POINT. - Page 9 BILBAO & SUPER BILBAO Multiplexing Illustrations Arneg USA - Lexington, NC BILBAO & SUPER BILBAO...
- Page 10 BILBAO & SUPER BILBAO MULTIPLEXING KIT ITEM NUMBER NAME ARNEG PART # M4 X 60 PIN 24131095 BOLT 1 X 5/16 24701095 BOLT 5/16 X 3 24701101 NUT 5/16 24701602 WASHER 24701165 6MM ALLEN BOLT 04711098 6MM NUT 04230400 Arneg USA - Lexington, NC...
-
Page 11: Maintenance And Cleaning
BILBAO & SUPER BILBAO 15. Maintenance and Cleaning CAUTION: BEFORE ANY MAINTENANCE AND CLEANING OPERATION, SWITCH OFF THE VOLTAGE TO THE CASE USING THE GENERAL SWITCH Foodstuffs can deteriorate because of microbes and bacteria. Respecting the hygiene and sanitation regulations is essential for guaranteeing the health of the consumer, in addition to respecting the cold chain of which the shop is the last controllable ring. -
Page 12: Dismantling The Cabinet
BILBAO & SUPER BILBAO 16. Dismantling the Cabinet Conforming with the regulations for proper disposal and for the respect of the environment we live in, we invite you to divide the parts of the case in order to facilitate easy disposal separately through your local recycle program. - Page 13 BILBAO & SUPER BILBAO 17. Useful Advice (cont.) • Respect the load limit, case will not function properly when airflow is obstructed by overloading the case. • Periodically keep an eye on the working temperature of the case and that of the foodstuff displayed in it (at least twice a day, including the weekends).
-
Page 14: Etl Markings
We reserve the right to change our technical specifications without notice. This brochure may not be reproduced, nor its contents disclosed to third parties without Arneg’s consent and it is meant only for use by our customers. Photographs included in this publication are merely representative and in any case are not to be considered as binding.
