Korg AW-LT100M, AW-LT100T Manual

Range of motion

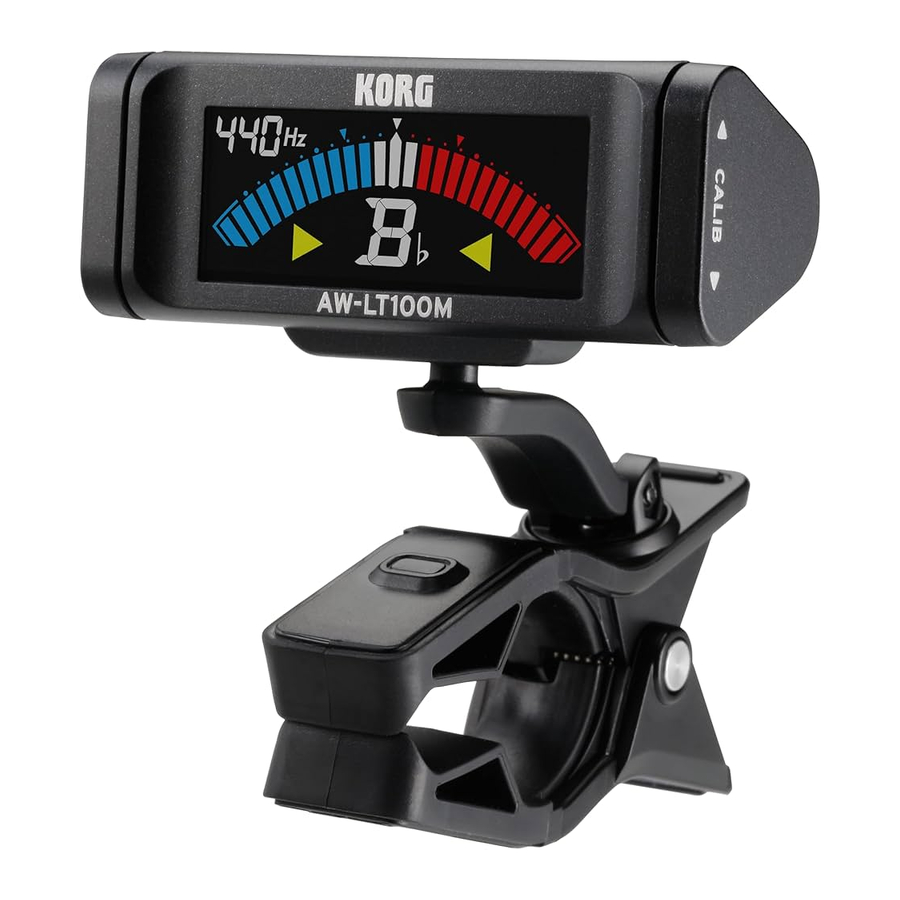

Parts of the AW-LT100M/AW-LT100T

Installing the battery

When the battery becomes depleted, a battery symbol () will appear on the display. Immediately replace the battery with a new one.

Battery is not included, so please obtain it separately.

1. Open the battery compartment cover on the rear of the tuner in the direction of the arrow.
2. Insert the battery, making sure to observe the correct polarity, and then close the cover.

Tuning

1. Turn the left shuttle switch upward. Each time you turn the shuttle switch, the AW-LT100M/AW-LT100T will be turned on or off. If the power is left on for approximately 20 minutes without any user input, it will turn off automatically (Auto power-off function).
2. If necessary, change the reference pitch (calibration).
3. Play a single note on your instrument. The note name closest to the detected pitch appears in the note name indicator. Check that the correct note name appears in the display, and the meter segments at the center () light up.
   If you want to tune to a pure major third or pure minor third above a certain note, adjust the pitch to the pure major or minor third marks on the meter. For example if you want to tune to a pure major third above A, make the note name indicator read C#, and tune so that the meter indicates the left . Alternatively, if you want to tune to a pure minor third above A, make the note name indicator read C, and tune so that the meter indicates the right .

   Meter indications when correctly tuned

Even if the pitch is within the range of detection, it may not be possible to detect the pitch of an instrumental sound that contains large numbers of overtones or a sound that has a rapid decay.

The meter may respond to vibrations it picks up from the environment.

Reference pitch settings (calibration) (*M)
Each time you turn the right shuttle switch upward (or downward), the reference pitch (calibration value) increases (or decreases) in 1 Hz steps.

Meter indication speed setting (*M)
Each time you turn the left shuttle switch downward, the meter indication speed changes. When the setting is changed, "F" (fast) or "S" (slow) appears in the reference pitch indicator.

Backlight

After turning the left shuttle switch upward to turn on the AW-LT100M/ the left shuttle switch turned upward for approximately 2 seconds.

Auto : The backlight will light brightly when sound is inputted or when a shuttle switch is operated. When there has been no sound input or shuttle switch operation for approximately three seconds after the power has been turned on, the backlight will turn off in order to prevent the battery from being depleted.

Soft : The backlight will light at a lower level of brightness in order to prevent the battery from being depleted.

Attaching to the instrument and range of motion

The AW-LT100M/AW-LT100T tunes by picking up the vibrations of the instrument. Therefore, attach the AW-LT100M/AW-LT100T to the recommended part of your instrument in order to tune it (Refer to the illustrations).

Additionally, the AW-LT100M/AW-LT100T can be freely moved so that the display is easy to read (Refer to the illustration on the upper left).

The AW-LT100M/AW-LT100T may be damaged if you apply excessive force within its range of motion, or attempt to move it beyond its intended range of motion.

Please carefully attach the AW-LT100M/AW-LT100T to your instrument. Leaving the AW-LT100M/AW-LT100T attached for a long time may damage or mark the instrument's surface.

Depending on various factors such as age-related change or the surface finish, there is a possibility that your instrument may be damaged by attaching this product.

Specifications

Scale: 12-note equal temperament

Range (sine wave): A0 (27.50 Hz)–C8 (4186 Hz)

Precision: +/-1 cent

Reference pitch: A4 = 410–480 Hz (1 Hz steps)

Dimensions (W x D x H):
AW-LT100M 60 mm x 65 mm x 68 mm / 2.36'' x 2.56'' x 2.68''
AW-LT100T 60 mm x 32 mm x 41 mm / 2.36'' x 1.26'' x 1.61''

Weight:
AW-LT100M 36 g/1.27 oz. (including battery)
AW-LT100T 27 g/0.95 oz. (including battery)

Power supply: One AAA Battery

Battery life: approximately 100 hours (backlight: Soft, tuner continuously operating, A4 input, when using alkaline battery)

Included items: Owner's Manual

*M Settings are remembered even when the power is off.

• Specifications and appearance are subject to change without notice for improvement.

Precautions

Location
Using the unit in the following locations can result in a malfunction.

• In direct sunlight
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic fields

Power supply
Be sure to turn off the power when the unit is not in use. Remove the battery in order to prevent it from leaking when the unit is not in use for extended periods.

Interference with other electrical devices
Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

Handling
To avoid breakage, do not apply excessive force to the switches or controls.

Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner, or cleaning compounds or flammable polishes.

Keep this manual
After reading this manual, please keep it for later reference.

Keeping foreign matter out of your equipment
Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown, fire, or electrical shock. Be careful not to let metal objects get into the equipment.

IMPORTANT NOTICE TO CONSUMERS
This product has been manufactured according to strict specifications and voltage requirements that are applicable in the country in which it is intended that this product should be used. If you have purchased this product via the internet, through mail order, and/or via a telephone sale, you must verify that this product is intended to be used in the country in which you reside.

Use of this product in any country other than that for which it is intended could be dangerous and could invalidate the manufacturer's or distributor's warranty.

Please also retain your receipt as proof of purchase otherwise your product may be disqualified from the manufacturer's or distributor's warranty.
