Korg GA-30 - Guitar/Bass Tuner Manual

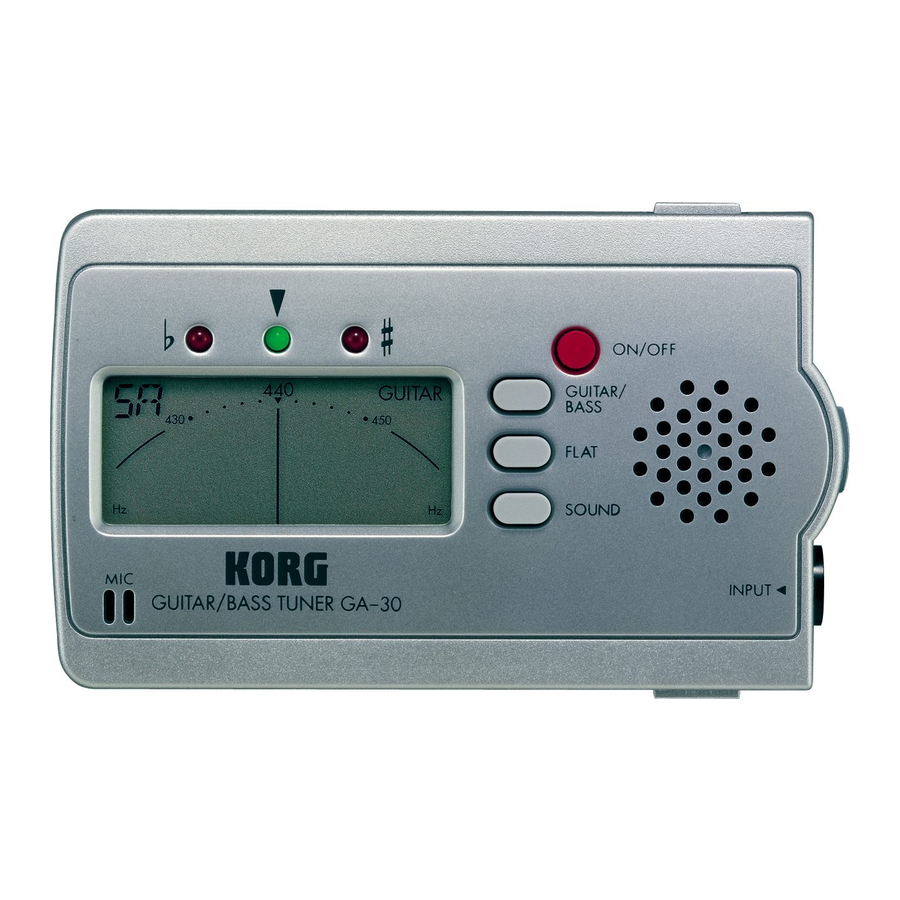

Controls and functions

1. Power switch
2. INPUT jack
3. Display:
   1. Note name,
   2. Flat indicator,
   3. GUITAR/BASS indicator,
   4. Meter
4. [GUITAR/BASS] switch
5. [FLAT] switch
6. [SOUND] switch
7. Built-in mic
8. Speaker
9. Tuning guide LEDs
10. Tilt slit
    The slit located on the back of the GA-30 is used to tilt the tuner. Place a card or similar object in the slit. (Do not use a valuable card.)

Tuning procedure

Meter mode

In this mode, the VU style meter shown in the display is used to tune your instrument.

1. If you are using an instrument with a pickup (such as an electric guitar) or a mic, connect the instrument or mic to the INPUT jack of the GA-30.
   If you wish to tune your instrument using the built-in mic, do not connect a plug to the INPUT jack. In steps 4 and 5, place your instrument as close as possible to the built-in mic.
   If a plug is connected to the INPUT jack, the built-in mic cannot be used.
   The INPUT jack is for mono use only. Stereo plugs cannot be used.
2. Press the power switch.
   When the power is on for 20 minutes without use, the tuner will automatically turn off to conserve battery life.
3. Press the [GUITAR/BASS] switch to select the instrument that you want to tune.
   Each setting allows the following tuning.
   GUITAR: 7B, 6E, 5A, 4D, 3G, 2B, 1E
   BASS: LB, 4E, 3A, 2D, 1G, HC (LB: Low B, HC: High C)
4. Play a single note on your instrument, and the name of the nearest note will appear in the display. Tune your instrument so that the correct note name is shown in the display.
5. Play a single note on your instrument, and tune it so that the meter needle points to the middle and the center indicator of the tuning guide is lit (if using A=440 Hz as the reference pitch). If your instrument is flat, the left indicator will light. If it is sharp, the right indicator will light.
   Each marking in the meter scale corresponds to 2 Hz. For example if you want to tune each string of your instrument using a reference pitch of A=436 Hz, adjust the tuning of each string so that the needle indicates two steps below «440».
   While tuning with the onboard mic a quiet environment is recommended for precise tuning.

Sound mode

In this mode you can tune while listening to a reference pitch

1. Select the settings described in steps 2–3 of "Meter mode."
2. Press the [SOUND] switch to enter Sound mode.
3. Press the [SOUND] switch until the note to which you wish to tune appears in the display. For the notes that can be output, refer to step 3 of «Meter mode.» When you make a complete cycle, you will return to Meter mode.
   GUITAR will output a pitch that is one octave higher than the actual pitch of your instrument, and BASS will output a pitch that is two octaves higher.
4. Listen to the pitch sounded by the GA-30, and tune your instrument accordingly.

Flat tuning

1–5 semitones ( ) for the specified note. You can use Meter mode or Sound mode to tune to a pitch that is lowered by

1. As described in "Meter mode" or "Sound mode," make the note you wish to flatten by 1–5 semitones appear in the display.
2. Press the [FLAT] switch to select the number of semitones that you wish to lower the selected note
   The display will indicate (1–5 semitones). (This setting is not to lower the selected note. remembered when you turn the power off.)
3. Tune your instrument.

Specifications

*Specifications and appearance are subject to change without notice for improvement.

Installing the battery

While pressing on the tabs marked PUSH on both sides, open the case, and insert the batteries being careful to observe the correct polarity. Battery life may differ according to the conditions of use. If the unit malfunctions, and turning the power OFF and then ON does not resolve the problem, remove and then reinstall the batteries.

Precautions

Location
Using the unit in the following locations can result in a malfunction.

• In direct sunlight
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic fields

Power supply
Be sure to turn the power switch to OFF when the unit is not in use. Remove the battery in order to prevent it from leaking when the unit is not in use for extended periods.

Interference with other electrical devices
Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

Handling
To avoid breakage, do not apply excessive force to the switches or controls.

Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner, or cleaning compounds or flammable polishes.

Keep this manual
After reading this manual, please keep it for later reference.

Keeping foreign matter out of your equipment

Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown, fire, or electrical shock. Be careful not to let metal objects get into the equipment.
