Korg GA-50 - Guitar/Bass Tuner Quick Start Guide

Installing the batteries

1. Slide the battery cover off of the GA-50.
2. Insert the batteries, making sure the polarity is correct.
3. Slide the battery cover closed.

Connections

If you're using the internal mic (a), don't connect anything. If you're using the INPUT jack (b), connect your instrument with a mono cable, or connect the separately sold contact mic. Connect an amp to the OUTPUT jack (c) using a mono cable. Never disconnect the plug from the INPUT jack while the OUTPUT jack is connected.

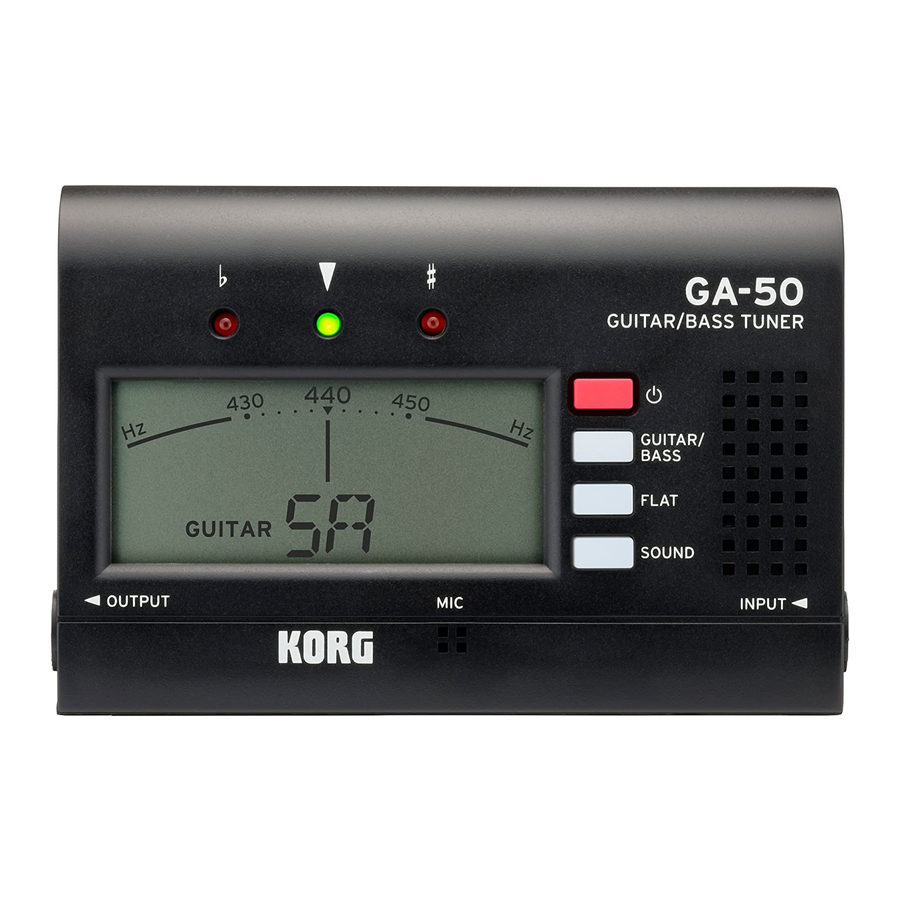

Tuning

(Fig.2)

1. Press the power button (d) to turn on the GA-50.
2. Press the GUITAR/BASS button (e) to select the instrument that you want to tune.
3. Play a single note on your instrument. 4. Tune your instrument so that the desired note name appears on the display (f), and the meter indication (g) is at "" at the center. The meter indication moves to the left if the pitch is flat, and to the right if the pitch is sharp.

Specifications (Overview)

Power supply: two AAA batteries 3V.
Battery life: Approximately 135 hours (using zinc-carbon batteries).
Auto power-off: Approximately 20 minutes.
Dimensions: 100mm(W) x 67mm(D) x 17mm(H) / 3.94" x 2.64" x 0.67".
Weight: 81g / 2.86 oz (including the batteries).
Included items: Quick Start Guide, two AAA batteries.

* Specification and appearance are subject to change without notice for improvement.
